Sony MDS-JA555ES Service Manual

75
208
210
211
212
208
213
209
208
207
206
205
214
215
M10
#5
#6
#5
#5
#5
#5
MBU-5C
216
217
219
218
221
222
203
202
201
203
202
201
223
224
220
204
#9
not
supplied

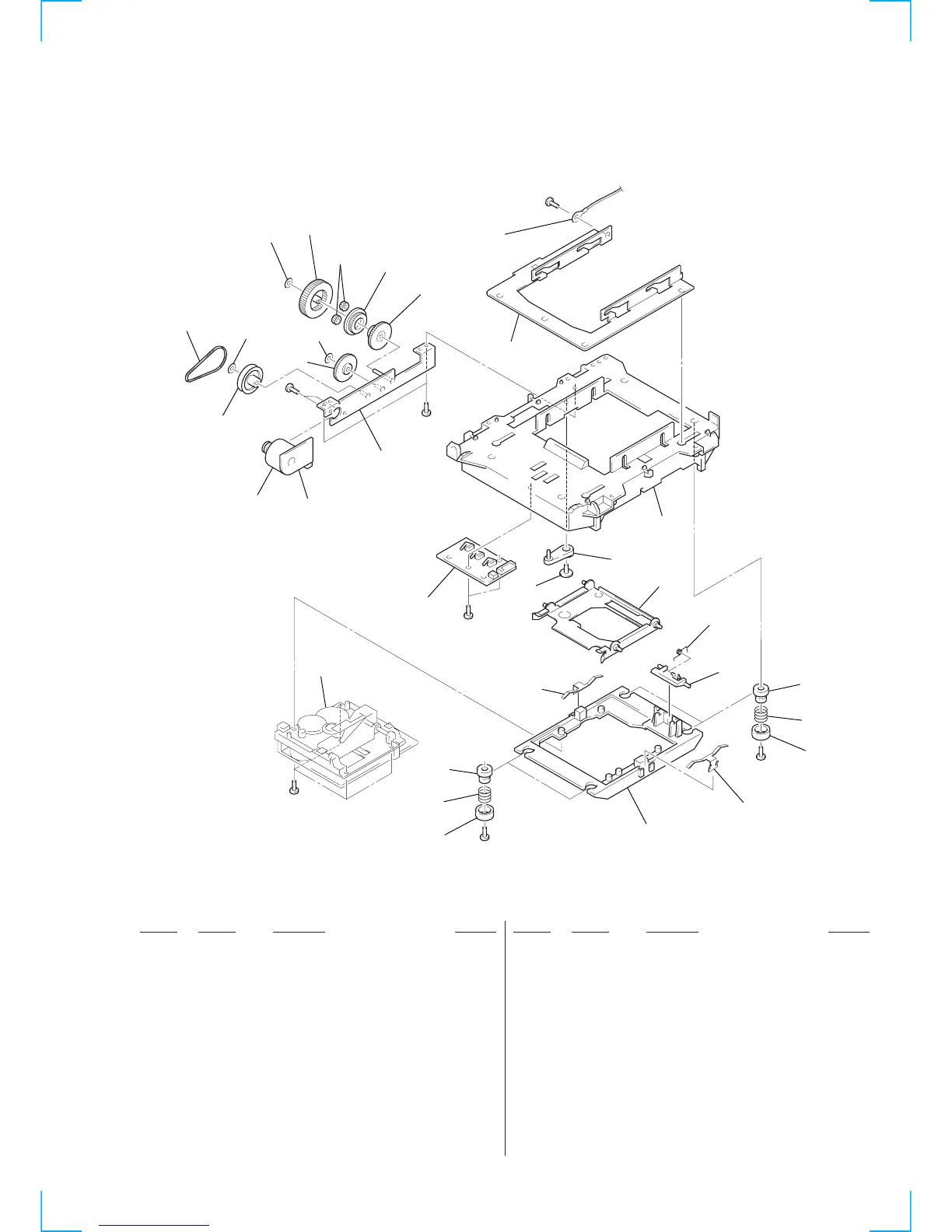

7-5. MECHANISM DECK ASSEMBLY-2 (MDM-6A)
201 4-999-541-01 COLLAR (DAMPER)
202 4-999-539-01 SPRING, COMPRESSION
203 4-999-540-01 INSULATOR (MD)
* 204 1-669-051-11 POSITION SWITCH BOARD
* 205 1-669-049-11 MOTOR BOARD
206 4-999-513-01 GEAR, PULLEY
207 4-999-537-01 BELT (LOADING)
208 4-968-919-31 WASHER, STOPPER
209 4-999-514-01 GEAR
210 4-999-515-01 GEAR (A), PLANET
211 4-999-518-01 GEAR (D), PLANET
212 4-999-517-01 GEAR (C), PLANET
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
213 4-999-516-01 GEAR (B), PLANET
* 214 X-4949-788-1 BRACKET (MOTOR) ASSY
215 X-4949-786-5 SLIDER ASSY
216 4-999-527-01 CHASSIS, MECHANICAL
217 X-4949-790-1 LEVER (LOCK) ASSY
218 X-4949-789-1 HOLDER ASSY
219 4-933-134-01 SCREW (+PTPWH M2.6 × 6)
220 4-999-533-01 SPRING (UDL), LEAF
221 4-999-524-01 SPRING (OWH), TORSION
222 4-999-511-01 LEVER (OWH)
223 4-999-534-01 SPRING (UDR), LEAF
224 4-999-510-01 HOLDER, BU
M10 X-4949-791-1 MOTOR (LOADING) ASSY
