MDS-JA555ES
5555

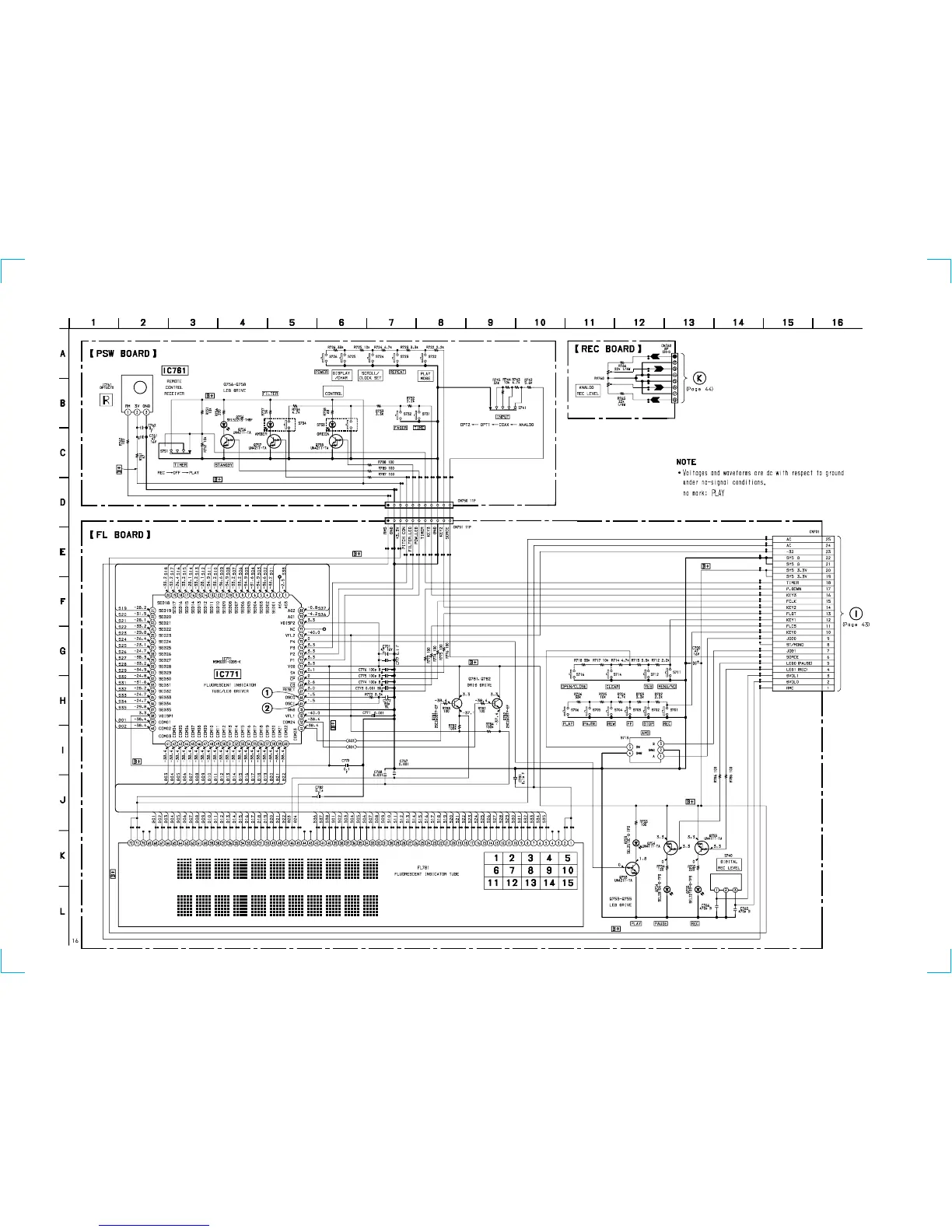

6-20. SCHEMATIC DIAGRAM PANEL SECTION • Refer to page 37 for Note on Schematic Diagrams. • Refer to page 56 for Wavefoms.
