Sony MDS-JB930 - MAIN Board Schematic Diagram (2;3); MAIN Board Schematic (Part 2)

MDS-JB930
4040

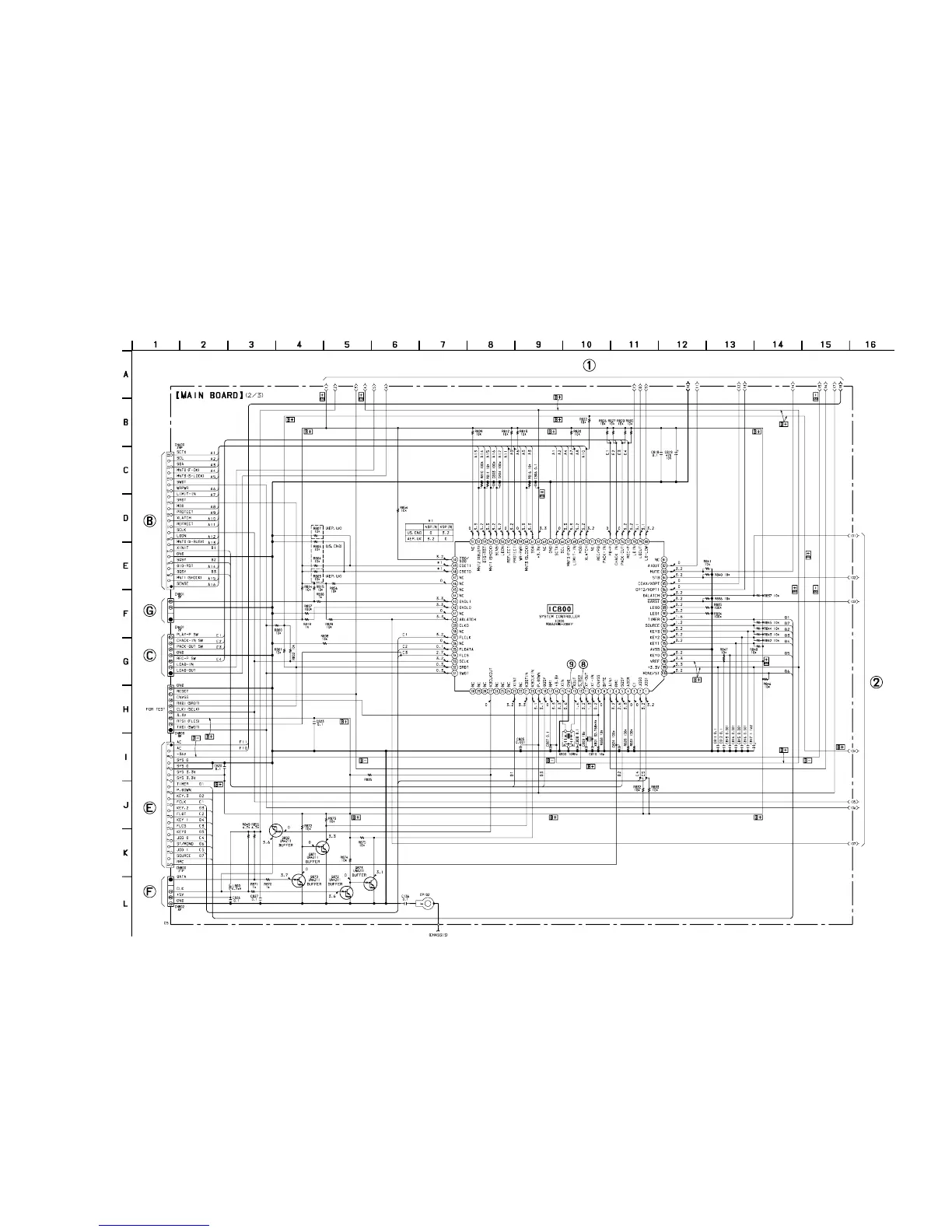

6-10. SCHEMATIC DIAGRAM – MAIN Board (2/3) –
• See page 48 for Waveform.
Note on Schematic Diagram:
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : PLAY
(Page 37)
(Page 47)
(Page 38)
(Page 47)
(Page 47)
(Page 39)
(Page 41)
