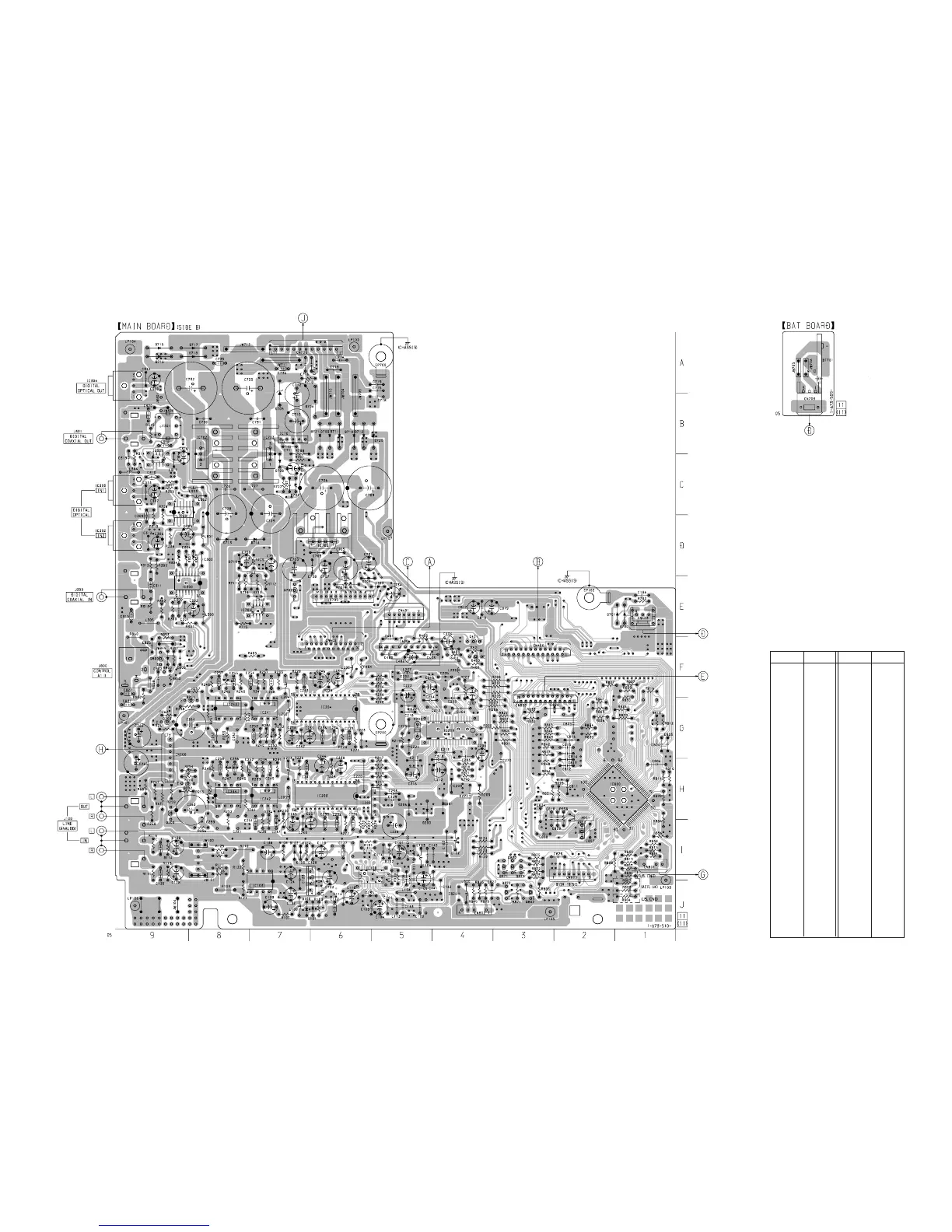

6-13. PRINTED WIRING BOARDS – MAIN Board (Side B), BAT Board – • See page 34 for Circuit Boards Location.
Ref. No. Location
Ref. No. Location
• Semiconductor Location
(Side B)
D100 J-7
D101 J-6
D102 I-7
D103 I-7
D200 H-5
D201 H-4
D206 H-5
D400 F-4
D700 E-1
D701 E-1
D703 E-5
D704 E-6
D705 B-7
D706 B-7
D707 C-7
D708 C-7
D709 B-6
D710 B-6
D711 B-6
D712 B-6
D713 D-8
D714 D-7
D715 A-9
D716 A-9
D717 A-8
D718 A-8
D719 D-8
D720 B-5
D721 B-6
D800 F-9
IC100 I-6
IC102 J-6
IC103 J-7
IC200 G-4
IC203 H-6
IC204 G-6
IC205 H-5
IC241 G-7
IC242 H-7
IC243 G-8
IC244 H-8
IC300 E-9
IC301 C-9
IC302 D-9
IC303 C-9
IC304 A-9
IC305 C-9
IC400 F-5
IC700 E-6
IC701 B-7
IC702 B-8
IC703 B-7
IC704 E-7
IC705 D-6
IC800 H-1
Q200 H-9
Q201 G-8
Q202 H-9
Q203 G-9
Q400 F-4
Q401 F-4
Q702 E-7
Q800 F-9
Q802 J-3
Q870 J-3
Q871 I-3
Q872 I-3
Q873 I-3
