Sony MDS-JB930 - Panel Section Printed Wiring Boards; DISP, PSW, HP Board Layouts; KEY and VOL Board Layouts

MDS-JB930
4646

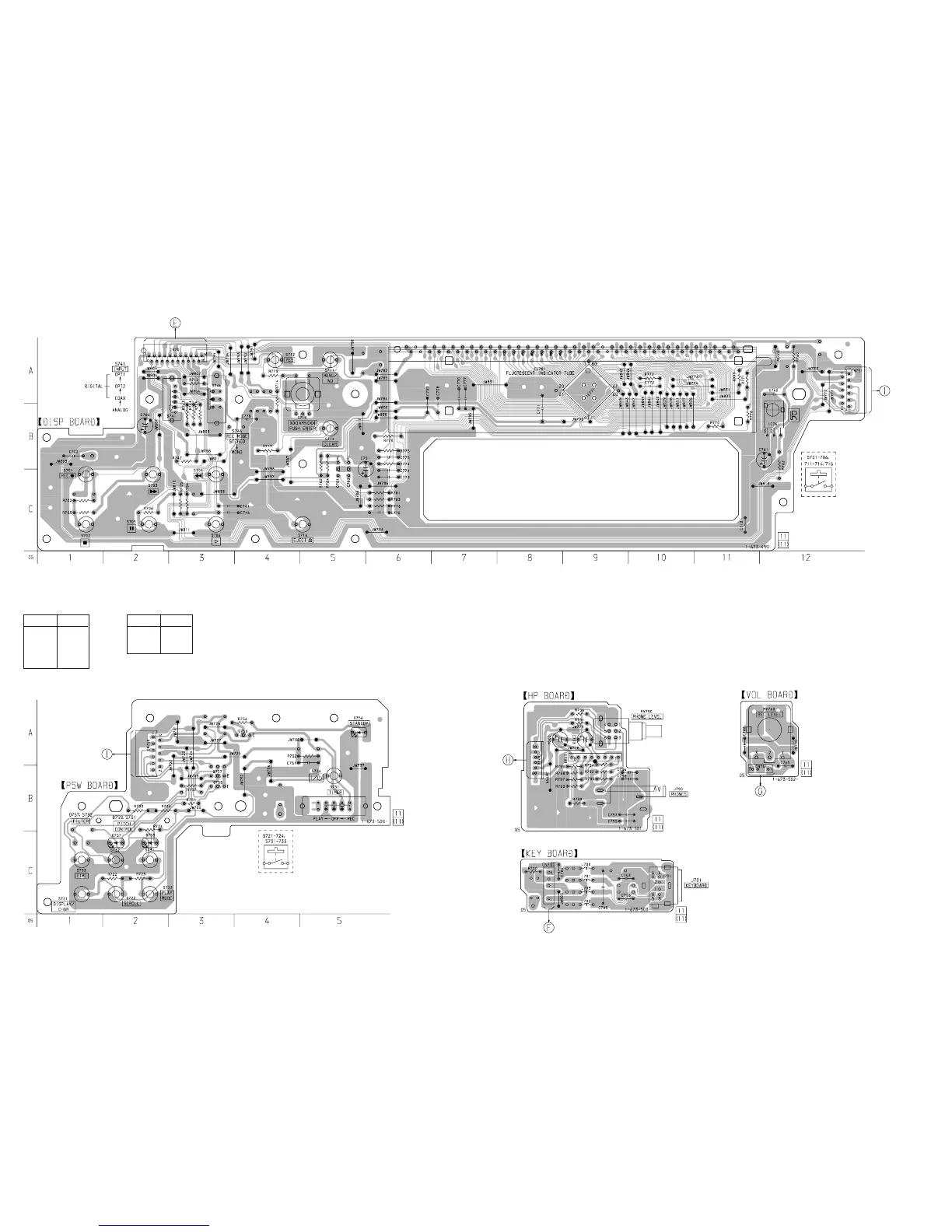

6-16. PRINTED WIRING BOARDS – PANEL Section – • See page 34 for Circuit Boards Location.
• Semiconductor
Location
– DISP Board –
Ref. No. Location
IC761 B-12
IC771 A-9
Q781 C-5
Q782 C-5
• Semiconductor
Location
– PSW Board –
Ref. No. Location
D756 A-5
D757 C-2
D759 C-2
(Page 43)
(Page 43)
(Page 43)
