Sony MDS-JB930 - Disassembly Procedures; Removing the Outer Case; Disassembling the Front Panel Section

13
FRONT PANEL SECTION
Note: Follow the disassembly procedure in the numerical order given.

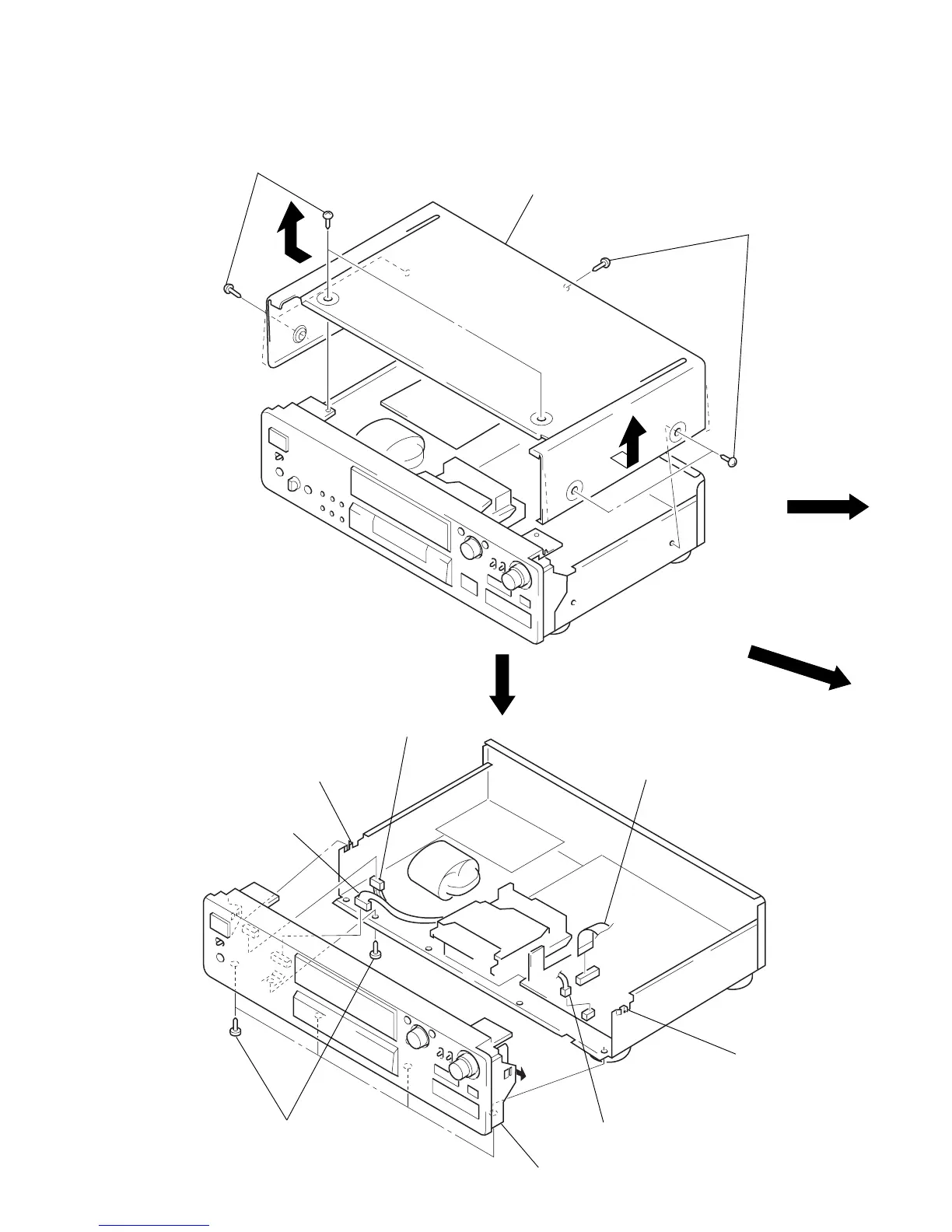

CASE (4095269)
SECTION 3
DISASSEMBLY
1 four screws (CASE 3 TP2)
2 case (4095269)
1 three screws (CASE 3 TP2)
4 claw
3 five screws
(BVTP3
× 8)
4 claw
5 front panel section
1 connector
(CN790)
1 connector
(CN700)
2 wire (flat type) (21 core) (MAIN-DISP)
(CN800)
1 connector
(CN801)
