Sony MDS-JB930 - AC Board Printed Wiring; AC Board (Side A) Layout; AC Board (Side B) Layout

MDS-JB930
4444

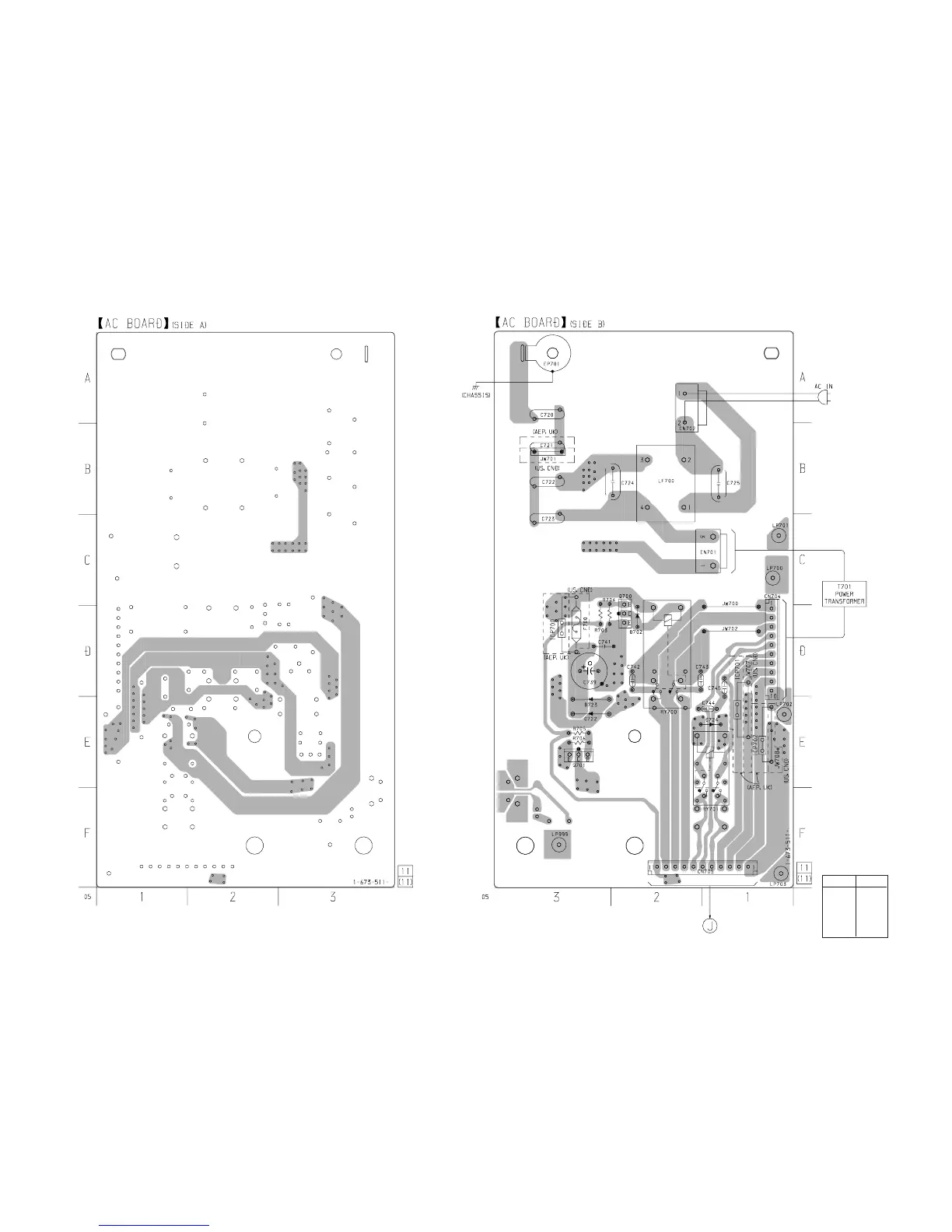

6-14. PRINTED WIRING BOARD – AC Board – • See page 34 for Circuit Boards Location.
• Semiconductor
Location
(Side B)
Ref. No. Location
D722 E-3
D723 E-3
D724 E-1
Q700 D-2
Q701 E-3
(Page 43)
