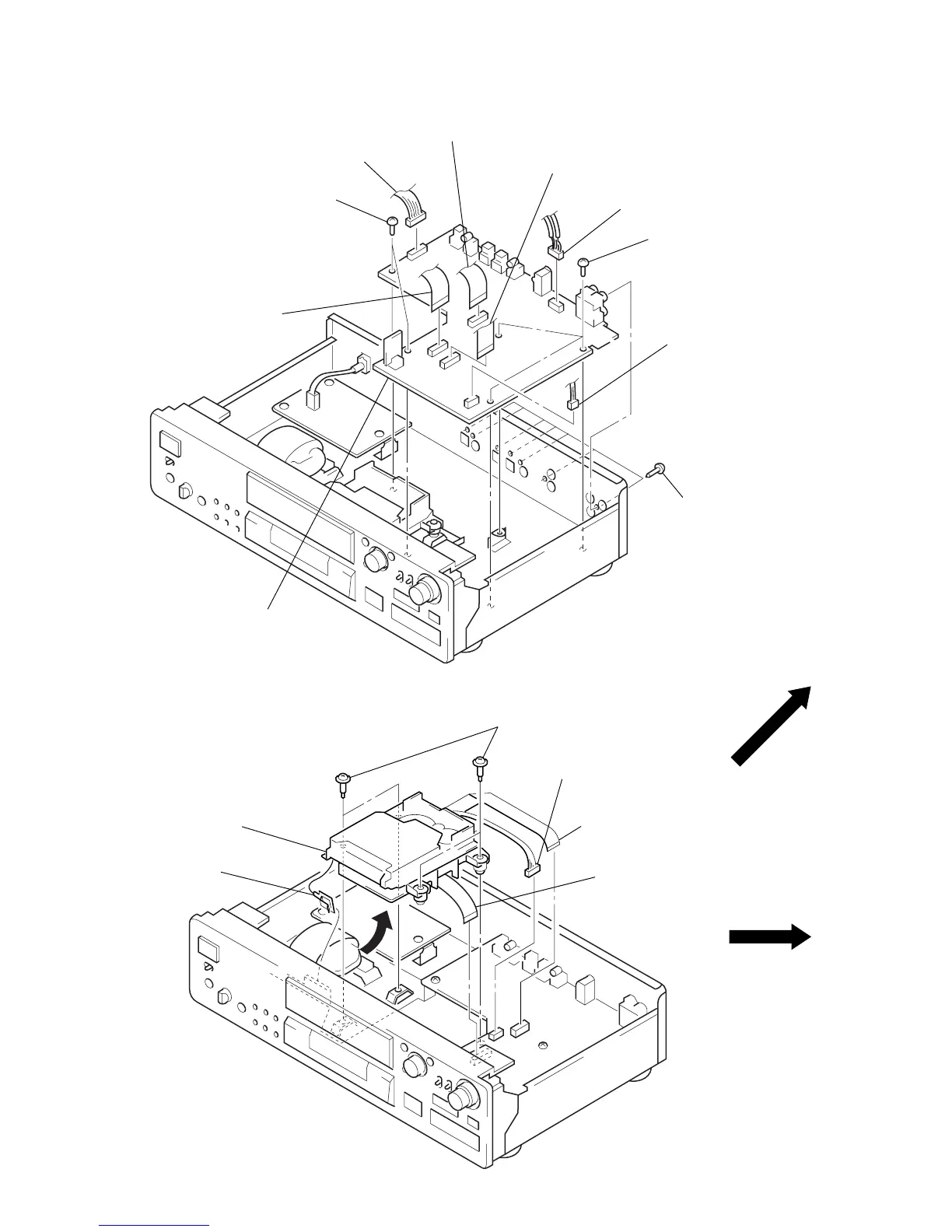

Sony MDS-JB930 - Board and Mechanism Disassembly; Main Board Removal; Mechanism Deck Removal

14
MAIN BOARD
MECHANISM DECK (MDM-5D)
4 four step screws
(BVTTWH M3)
5 Remove the mechanism deck
(MDM-5D) to direction of the arrow.
2 connector
(CN401)
1 harness
3 wire (flat type) (21 core) (MAIN-BD)
(CN402)
3 wire (flat type) (23 core)
(CN400)
2 wire (flat type) (21 core) (MAIN-BD)
(CN402)
2 wire (flat type) (23 core)
(CN400)
4 MAIN board
2 wire (flat type) (21 core) (MAIN-DISP)
(CN800)
1 connector (CN200)
1 connector
(CN700)
3 three screws
(BVTP2.6
× 8)
3 two screws
(BVTP2.6
× 8)
1 connector
(CN801)
3 seven screw
s
(BVTP3 × 8)
