Sony MDS-JB930 - Mechanism Component Disassembly; Slider (Cam) Mechanism; Base Unit and BD Board

15

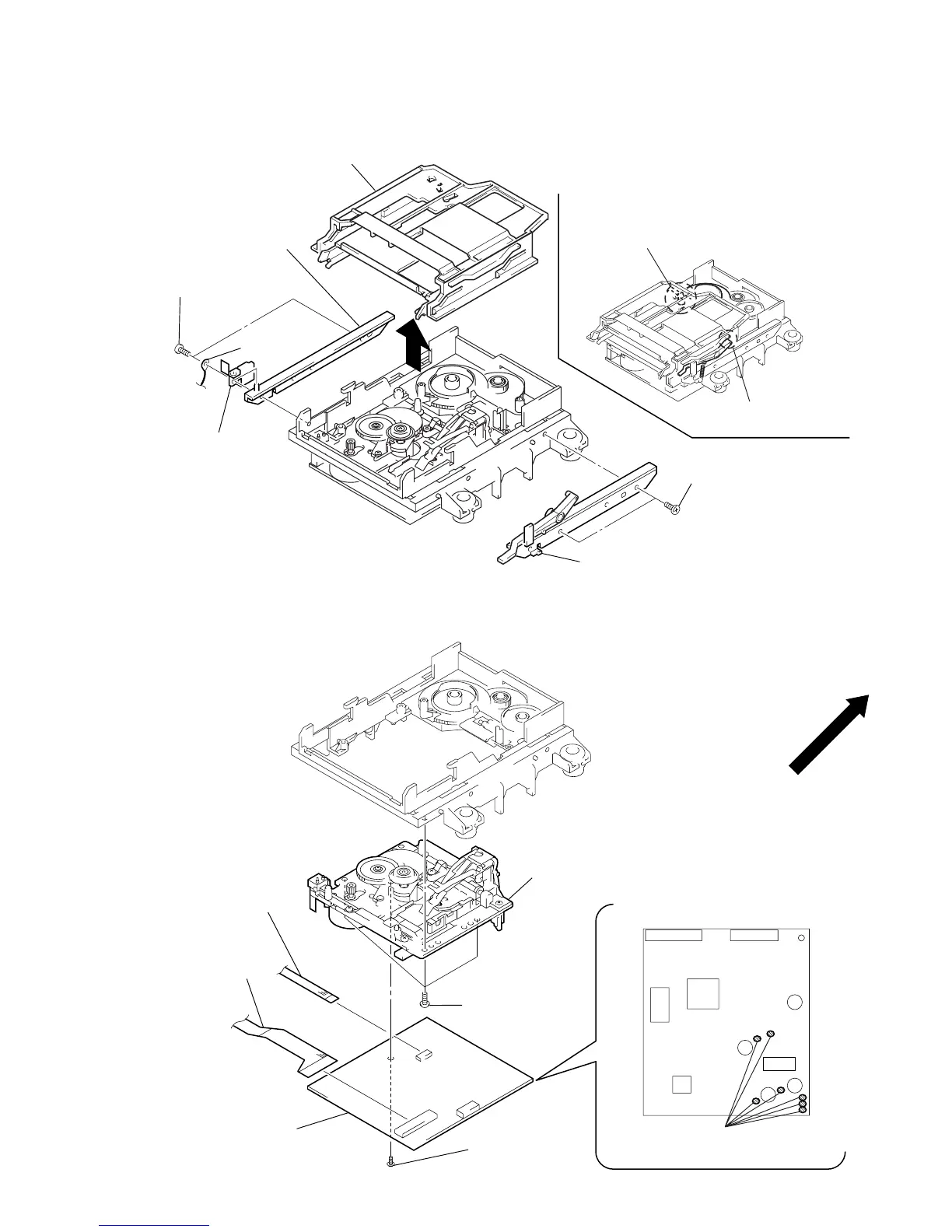

SLIDER (CAM)
BASE UNIT (MBU-5D), BD BOARD
1 two screws (P2.6x6)
4 bracket (Guide L)
3 leaf spring
2 harness
6 bracket (Guide R)
7 slider (Cam)
5 two screws (P2.6x6)
Set the shaft of Lever (O/C) to
be at the position in the figure.
Set the shaft of Cam gear to
be at the position in the figure.
• Note for Installation of Slider A (Cam)
1 three screws
(P2.6
× 6)
2 base unit (MBU-5D)
3 Remove the solder (Seven portion).
4 screw (M1.7 × 4)
6 flexible board
(CN101)
7 BD board
5 flexible board
(CN104)
