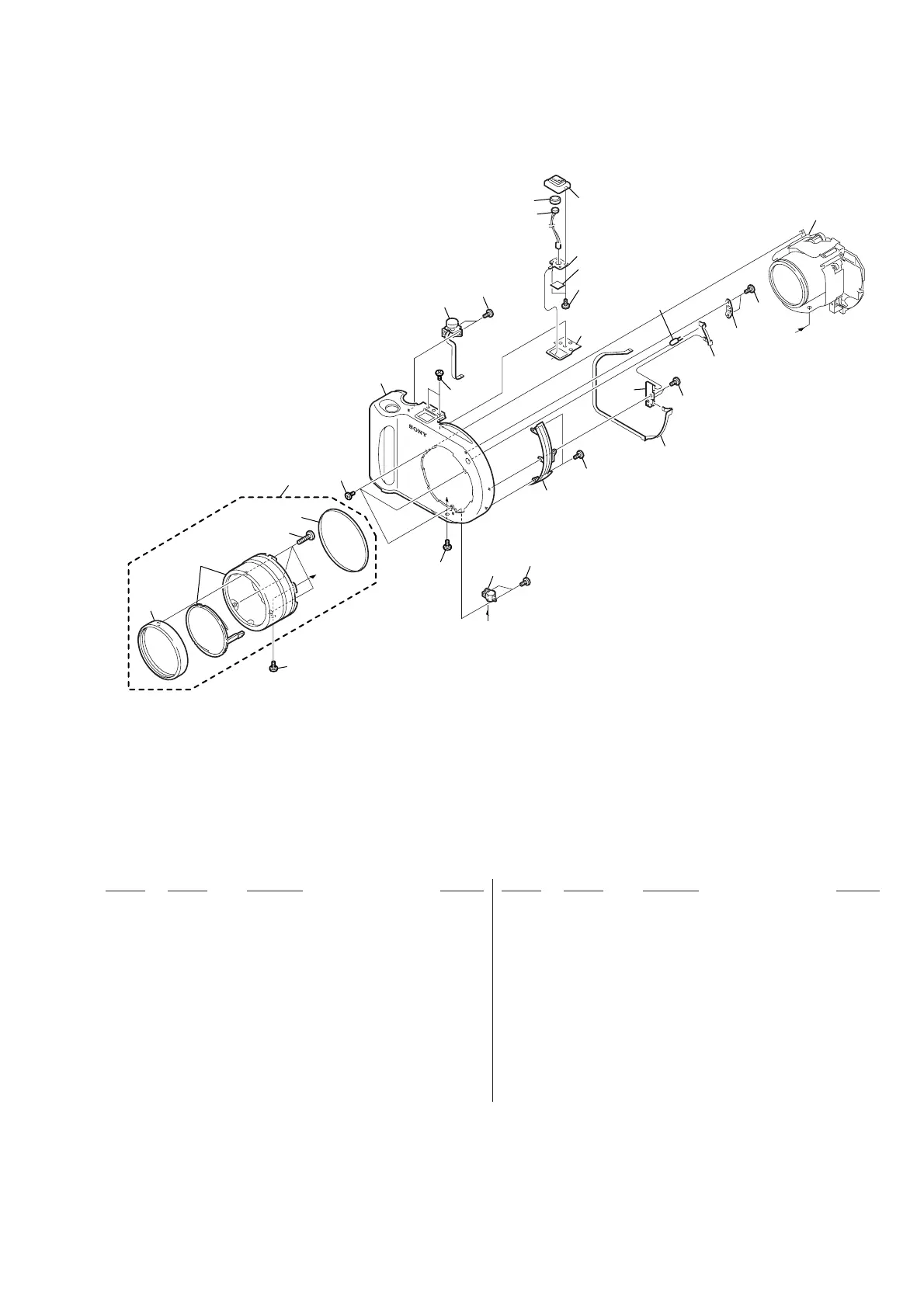

6-1-3. CABINET (FRONT) SECTION, LENS CABINET SECTION
(CD300)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 3-068-411-01 RING, FILTER
102 3-968-729-71 SCREW (M2), LOCK ACE, P2
103 3-060-271-01 SCREW (M1.7X7)
104 X-3951-642-1 CABINET ASSY, LENS
105 3-060-274-01 SCREW, TRIPOD
106 3-914-366-01 SCREW (DIA. 1.7X4), PRECISION
107 3-067-948-01 PLATE, SIDE ORNAMENTAL
108 X-3951-641-1 CABINET (FRONT) ASSY
109 3-989-735-61 SCREW (M1.7), LOCK ACE, P2
110 1-476-674-11 SWITCH BLOCK, CONTROL (RL-503)
111 3-713-791-05 SCREW (B1.7)
112 3-068-402-01 SHEET METAL, RETAINER
113 3-068-488-01 CUSHION, MICROPHONE
114 3-062-299-01 SHEET, MICROPHONE
115 X-3951-646-1 HOLDER ASSY, MICROPHONE
116 1-681-549-11 FP-369 FLEXIBLE BOARD
117 A-7074-837-A TK-61 BOARD, COMPLETE
118 1-681-550-11 FP-370 FLEXIBLE BOARD
119 3-068-494-01 CAP, LED
LED901 8-719-084-32 DIODE TLOH20TP
MIC901 1-542-457-11 MICROPHONE
B
A
A
B
101
102
103
102
107
106
116
106
117
111
112
114
118
119
106
102
104
106
113
108
110
109
115
106
105
not
supplied
not
supplied
not
supplied
Lens section
(See page 6-4)
LED901
MIC901
