Sony MVC-CD200 Service Manual

6-5

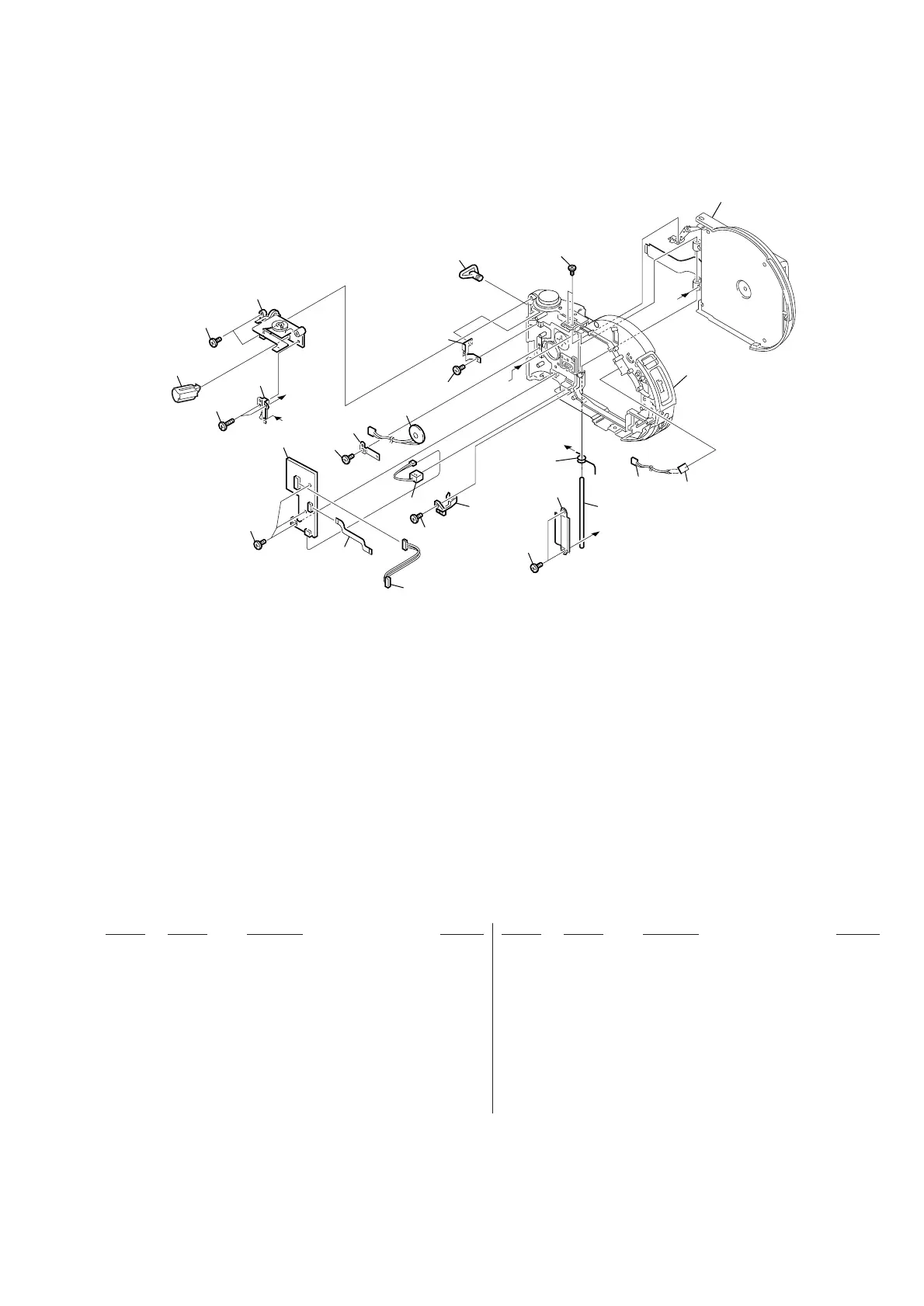

6-1-5. CABINET (REAR) SECTION-1
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 3-069-046-01 SCREW (Y) (DIA. 1.7X5.5)
202 3-070-017-01 STAY, PO SPRING
203 3-068-479-01 CAP, CAPACITOR
204 3-070-014-01 SPRING, PRE OPEN
205 3-914-366-01 SCREW (DIA. 1.7X4), PRECISION
206 1-476-675-11 SWITCH BLOCK, CONTROL (ZK-503)
207 3-068-454-01 SHEET METAL (R), STRAP
208 3-068-457-01 SHAFT, STRAP
209 3-056-559-11 SCREW (M1.7), 0 PART-NO. P2
210 1-657-785-11 FP-248 FLEXIBLE BOARD (DEW SENSOR)
211 1-961-144-11 HARNESS (FS-140)
212 3-068-496-01 PIN (DIA. 3), PARALLEL
213 3-068-450-01 COVER (CD), FLEXIBLE
214 3-068-497-01 COVER, PARALLEL PIN
215 3-068-453-01 RETAINER, SPEAKER
216 1-961-141-11 HARNESS (FS-136)
217 1-681-546-11 FP-362 FLEXIBLE BOARD
218 A-7074-835-A FS-83 BOARD, COMPLETE
J901 1-794-045-11 CONNECTOR, DC-IN
SP901 1-544-839-11 SPEAKER (1.6 CM)
FS-83
A
A
B
B
C
C
Lid CD section
(See page 6-7)
211
212
204
207
205
217
205
210
209
205
213
214
216
203
205
201
218
202
205
215
208
206
SP901
J901
205
Cabinet (rear) section-2
(See page 6-6)
