Sony MVC-CD200 Service Manual
4
of 1
of 1 rating
132 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
2-14E
Disassembling pr
ocedure of Mechanism
deck (DDX-G2100 COMPLETE ASSEMBL
Y)
are not shown.
P
ages 2-15 and 2-16 are not shown.
The fle
xible boards contained in the mechanism dec
k and that in the zoom lens are not shown.

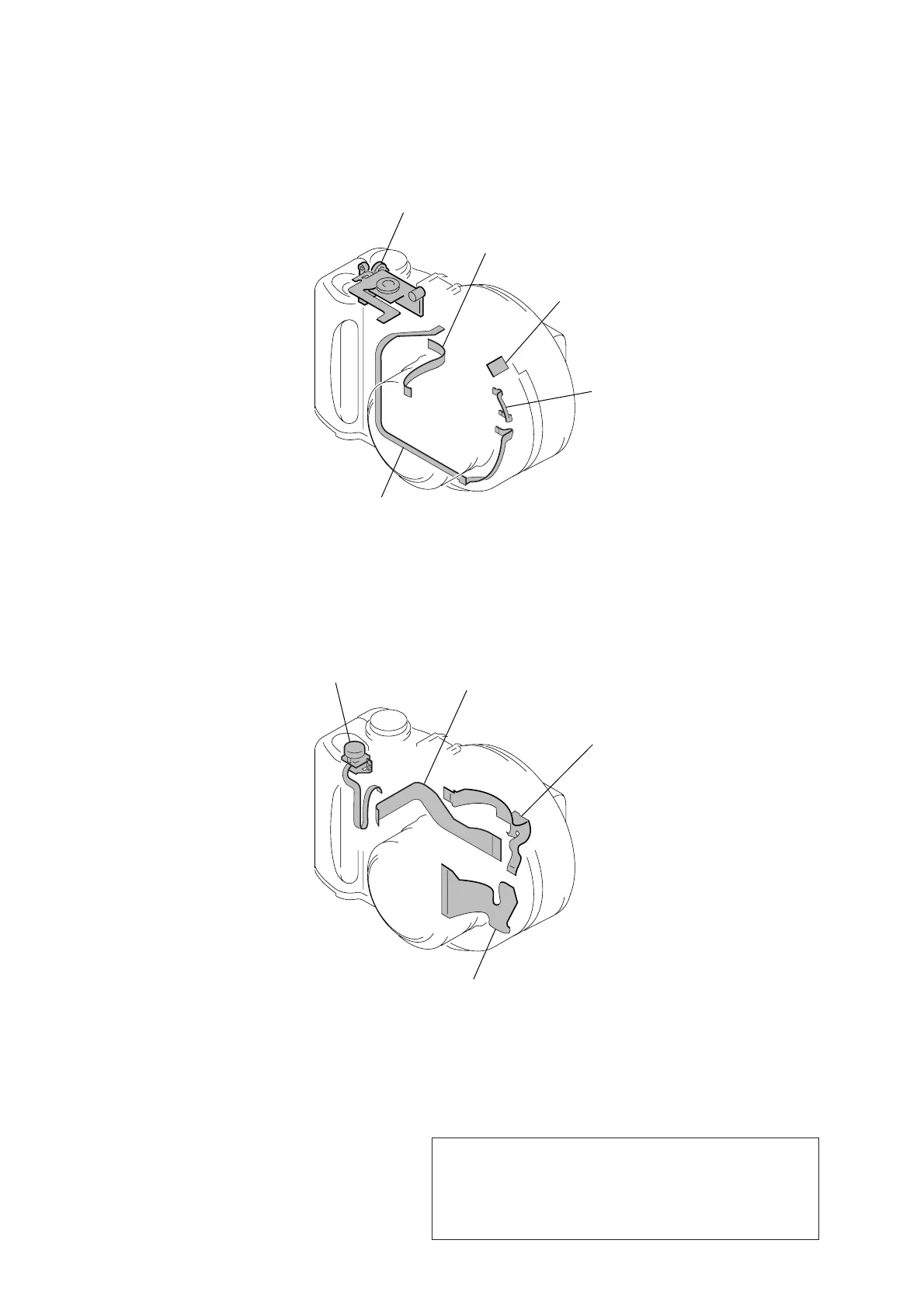

2-15.
FLEXIBLE BO
ARDS LOCA
TION
CONTROL SWITCH BLOCK
(ZK-503)
CONTROL SWITCH BLOCK
(RL-503)
FP-369
FP-364
FP-362
FP-363
FP-248
FP-370
FP-361
44
46
Table of Contents
Default Chapter
3
Table of Contents
3
Service Note
5
General
7
Introduction
7
Getting Started
7
Identifying the Parts
7
Preparing the Power Supply
7
Setting the Date and Time
9
Inserting a Disc
9
Basic Operations B Recording
10
Initializing a Disc (INITIALIZE)
10
Recording Still Images
10
Recording Moving Images
12
B Playback
12
Playing Back Still Images
12
Playing Back Moving Images
12
Preparation for Viewing Images Using a Computer
13
Viewing Images Using a Computer
14
Image File Storage Destinations and Image File Names
16
Advanced Operations
16
Before Performing Advanced Operations
16
How to Use the Mode Dial
16
How to Use the Control Button
17
How to Use the Jog Dial
17
Menu Settings
17
Setting the Image Size (IMAGE SIZE)
18
B Various Recording
19
Recording with the Exposure Fixed (AE LOCK)
19
Recording with the Manual Adjustments
19
Recording Images According to Shooting Conditions
20
(Scene Selection)
20
Recording Three Images Continuously (BURST)
20
Recording Still Images for E-Mail (E-MAIL)
20
Adding Audio Files to Still Images (VOICE)
20
Recording Text Documents (TEXT)
20
Recording Still Images as Uncompressed Files (TIFF)
21
Recording Three Images with the Exposure Shifted
21
Creating Clip Motion Files
21
Setting the Distance to the Subject
22
Recording Images in Macro
22
Adjusting the Exposure (EXPOSURE)
22
Adjusting the White Balance (WHITE BALANCE)
22
Enjoying Picture Effects (P. EFFECT)
22
Recording the Date and Time on the Still Image
23
(Date/Time)
23
Using the Spot Light-Metering Function
23
B Various Playback
23
Playing Back Three or Nine Images at Once
23
Enlarging a Part of the Still Image (Zoom and Trimming)
23
Playing Back the Still Images in Order (SLIDE)
24
Rotating a Still Image (ROTATE)
24
Viewing Images on a TV Screen
24
B Editing
24
Deleting Images (DELETE)
24
Preventing Accidental Erasure (PROTECT)
25
Changing the Recorded Still Image Size (RESIZE)
25
Selecting Still Images to Print (PRINT)
25
Formatting a CD-RW
26
Changing the Setup Settings (SET UP)
26
Additional Information
27
Precautions
27
On Discs
27
Using Your Camera Abroad
28
About "Infolithium" Battery Pack
28
Troubleshooting
28
Warning and Notice Messages
30
Self-Diagnosis Display
31
LCD Screen Indicators
31
Disassembly
32
Lcd Section (Pk-58 Board)
33
Cabinet (Front) Section
34
Lens Section (CD-333/334 Board)
35
Cabinet (Front) Assembly (Tk-61 Board), Control Switch Block (Rl-503)
36
Battery Holder (Jk-208 Board)
37
Board
37
Stroboscope Section (Flash Unit)
38
Base Unit (DDX-G2100 Complete Assembly)
39
Lid CD Section
40
Function Button (Fs-83 Board)
40
Solenoid Plunger
41
Control Switch Block (Zk-503)
42
Strap Shaft
42
Mode Knob, Power Spring
43
Circuit Boards Location
44
G2100 COMPLETE ASSEMBLY) Are Not Shown.
45
Flexible Boards Location
45
Disassembling Procedure of Mechanism Deck
45
Pages 2-15 and 2-16 Are Not Shown
45
Block Diagrams
46
Overall Block Diagram (1/2)
46
Overall Block Diagram (2/2)
47
Mode Control Block Diagram
48
Lcd Block Diagram
49
Power Block Diagram (1/3)
50
Power Block Diagram (2/3)
51
Power Block Diagram (3/3)
52
Pages from 3-15 to 3-26 Are Not Shown
52
Frame Schematic Diagram (1/2)
53
Frame Schematic Diagram (2/2)
53
Printed Wiring Boards and Schematic Diagrams
53
Printed Wiring Boards and
55
Lens Drive, Camera Process, CCD Imager) Printed Wiring Board (Cd200)
56
Lens Drive, Camera Process, CCD Imager
56
CCD Imager
60
67 And MD-083 Boards Are Not Shown.
61
Schematic Diagram and Printed Wiring Board of the SY- 12. Color Reproduction Adjustment····································5-20
61
Pages from 4-19 to 4-54 Are Not Shown
61
Charger
63
Rgb Drive, Timing Generator, Back Light) Printed Wiring Board
66
Rgb Drive)(1/3)
68
Timing Generator
69
Back Light)(3/3)
70
Waveforms
71
Mounted Parts Location
74
Adjusting Items When Replacing Main Parts and Boards
76
Adjustments
76
Adjustment
77
List of Service Tools
77
Preparations before Adjustment
77
Discharging of the Flashlight Power Supply
78
Preparations
78
Order of Adjustments
80
Precaution
80
Setting the Switch
80
Subjects
80
Initialization of D Page Data
81
Initializing the D Page Data
81
Modification of D Page Data
81
Initializing the B, E, F, 7, 9 Page Data
82
Modification of B, E, F, 7, 9 Page Data
82
Page Table
84
Page Table
85
Video Output Level Adjustment (SY-67 Board)
86
Video System Adjustments
86
Camera System Adjustments
87
HALL Adjustment (MVC-CD200)
87
Flange Back Adjustment
88
Flange Back Adjustment (Using Minipattern Box)
88
Flange Back Adjustment
89
(Using Flange Back Adjustment Chart)
89
Flange Back Adjustment (2)(MVC-CD200)
89
Flange Back Check
90
Picture Frame Setting
91
F No. Standard Data Input
92
Mechanical Shutter Adjustment
92
Light Value Adjustment
93
Mixed Color Cancel Adjustment
93
Auto White Balance Adjustment
94
Auto White Balance Standard Data Input
94
Color Reproduction Adjustment
95
Color Reproduction Check
95
White Balance Check
96
CCD Black Defect Compensation and Check
97
Strobe Adjustment
98
CCD White Defect Compensation and Check
97
LED Illumination Check
99
LCD Initial Data Input (1)
100
Lcd System Adjustment
100
LCD Initial Data Input (2)
101
VCO Adjustment (PK-58 Board)
101
Bright Adjustment (PK-58 Board)
102
D Range Adjustment (PK-58 Board)
102
Color Adjustment (PK-58 Board)
103
Contrast Adjustment (PK-58 Board)
103
V-COM Level Adjustment (PK-58 Board)
104
V-COM Adjustment (PK-58 Board)
104
White Balance Adjustment (PK-58 Board)
105
Battery End Adjustment (SY-67 Board)
106
Serial No. Input
107
System Control System Adjustment
106
Adjustment Remote Commander
108
Precautions Upon Using the Adjustment Remote
108
Commander
108
Service Mode
108
Using the Adjustment Remote Commander
108
Data Process
109
Bit Value Discrimination
110
Switch Check (1)
111
Service Mode
110
Setting the Test Mode
110
Switch Check (2)
111
Switch Check (3)
111
Switch Check (4)
112
Switch Check (5)
112
LED Check
112
Record of Use Check
113
Self Diagnosis Log Check
113
Exploded Views
114
Overall Section
114
Section (Cd200)
114
Section (Cd300)
115
Repair Parts List
114
Lens Section
117
Cabinet (Rear) Section-1
118
Cabinet (Rear) Section-2
119
Lid CD Section
120
Electrical Parts List
121
Pages from 6-14 to 6-24 Are Not Shown
125
Other manuals for Sony MVC-CD200
