Sony MVC-FD81 - Service Position (for Voltage Measurement)

2-5

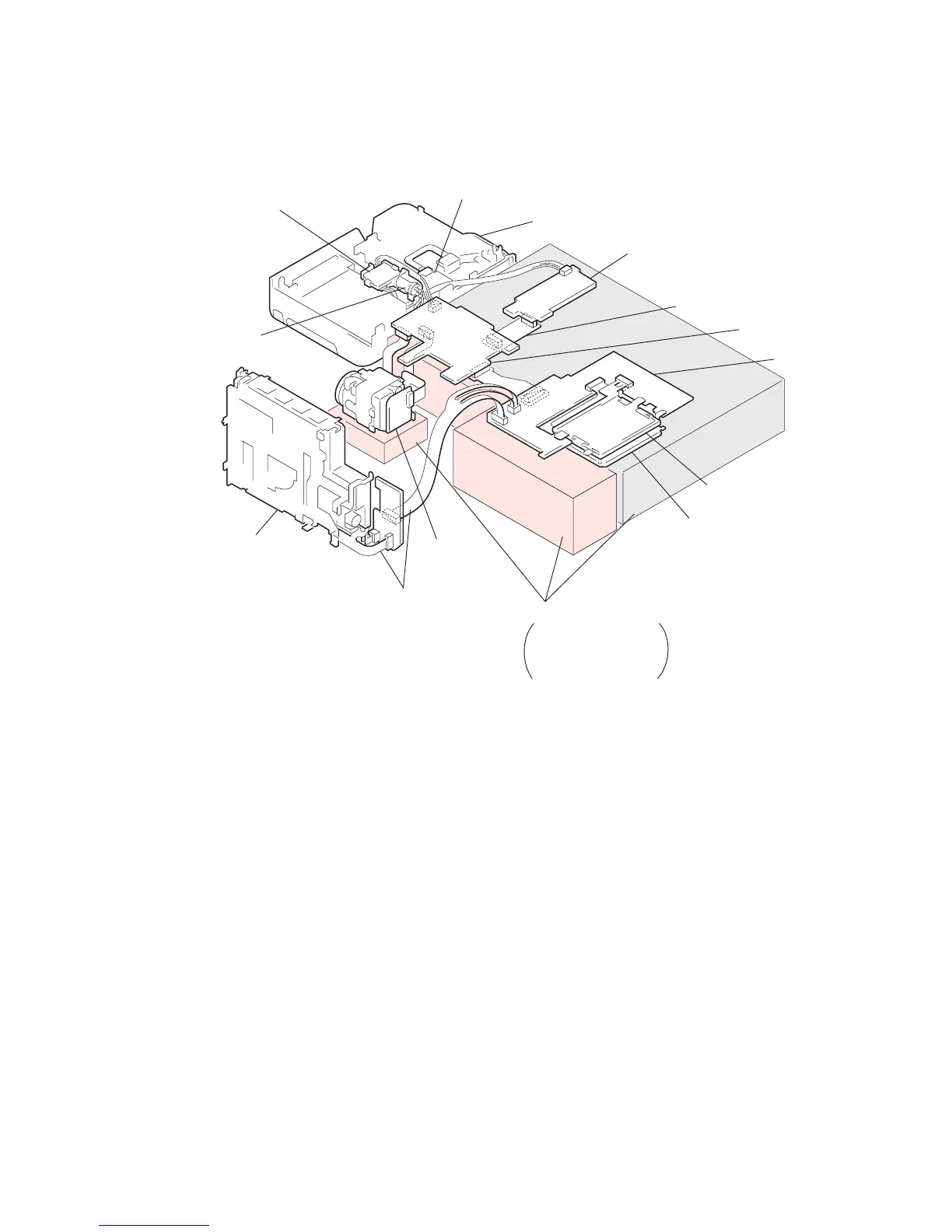

2-7. SERVICE POSITION (For voltage measurement)
Firstly, remove the following parts referring to DISASSEMBLY (sections 2-1 to 2-4), and connect parts as shown below.
DD-119 board
FC-67 board
FLASH unit
Cabinet (front) assembly
PK-44 board
CD-206
board
Base
Using a box or the like,
support the lens block,
FC-67, DD-119 and
PK-44 board as shown.
RL-51 board
Floppy disk
drive unit
FLASH unit
charge capacitor
Backlight
LCD panel
Extension cable
(J-6082-434-A)
Extension cable
(J-6082-427-A)
