Sony MVC-FD81 - Lens Block Section

6-3
102
101
103
IC431
105
106
107
109
108
110
101 1-671-865-11 FP-66 (CD-FC) FLEXIBLE BOARD
102 3-947-268-11 TITE (2), +B TAPPING (P)
103 A-7073-715-A CD-206 BOARD, COMPLETE
105 3-949-283-01 RUBBER (2), SEAL
106 1-758-217-11 FILTER BLOCK, OPTICAL
107 3-957-990-11 ADAPTOR (C), CCD FITTING
* 108 3-052-563-01 FRAME, LENS
109 3-948-339-61 TAPPING
110 8-848-730-01 DEVICE, LENS LSV-550B(SOC)
IC431 A-7030-955-A CCD BLOCK ASSY (CCD IMAGER)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

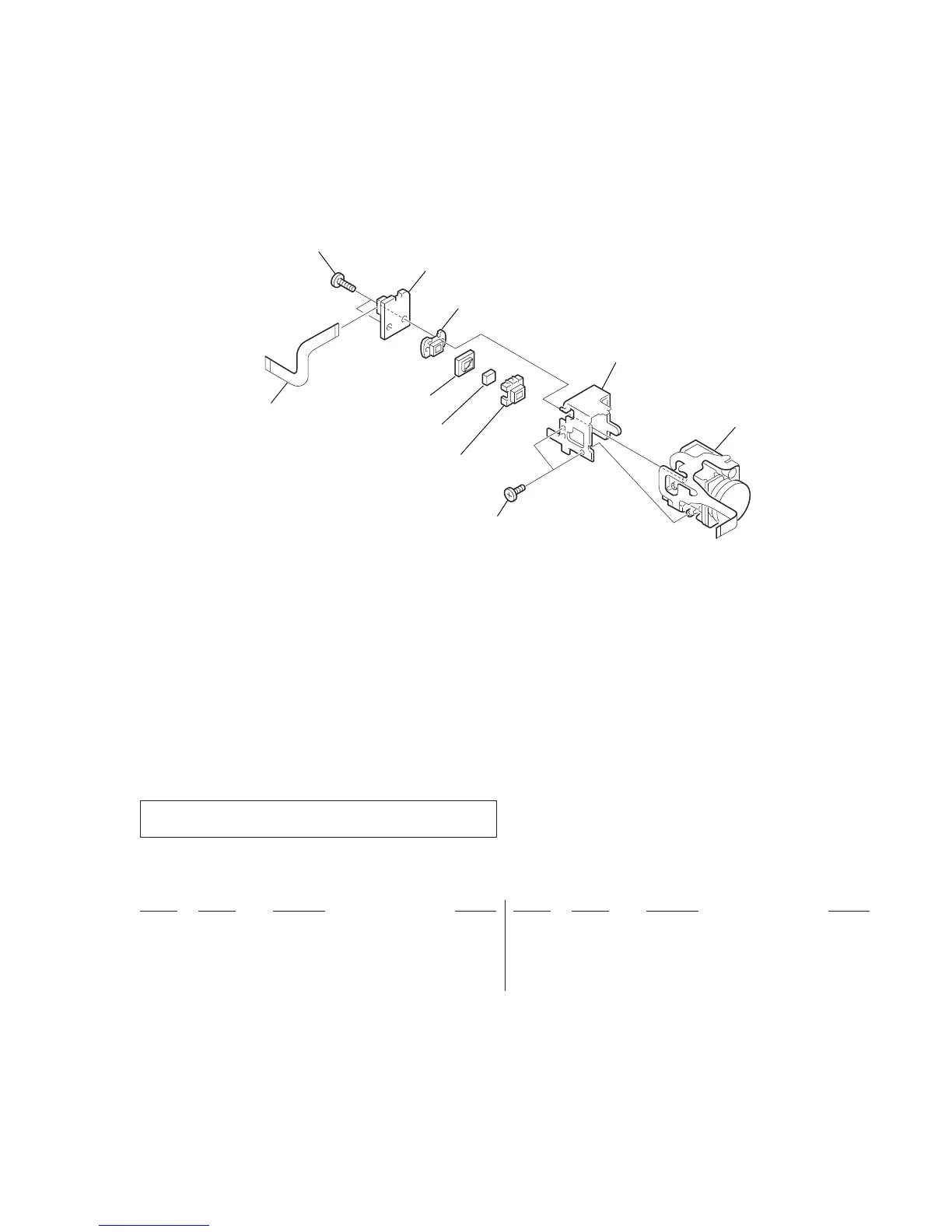

6-1-3. LENS BLOCK SECTION
Be sure to read “Note on the CCD imager replacement” on
page 4-7 when changing the CCD Imager.
