Sony MVC-FD81 - Repair Parts List; Exploded Views; Cabinet (Front) Section

6-1
MVC-FD81
SECTION 6
REPAIR PARTS LIST

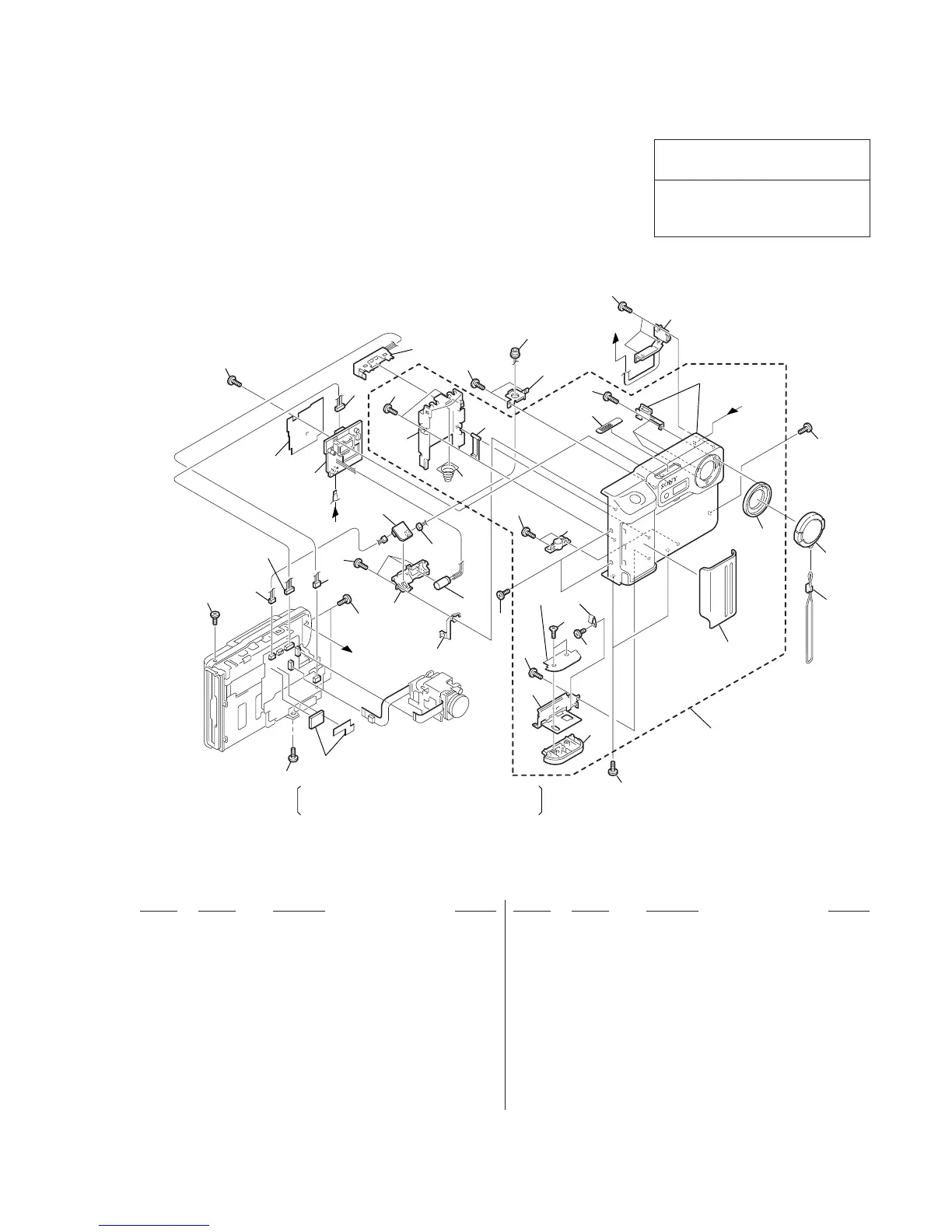

6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
b
a
a
b
1
1
1
1
3
19
4
9
19
10
16
13
1
19
11
17
15
20
19
7
18
8
12
1
14
21
5
19
19
19
not supplied
not supplied (Note)
r A
r A
including
r A, r B
r B
r C
not supplied
not
supplied
not
supplied
J901
J901
not supplied
not supplied
not supplied
MIC901
including
r C
2
Note: Refer to sec. 2-6. SERVICE POSITION
(see page 2-4) for re-assembling.
1 3-968-729-01 SCREW (M2), LOCK ACE, P2
2 1-959-175-11 HARNESS (RL-51)
3 3-052-564-01 HOLDER, RL
4 A-7073-716-A RL-51 BOARD, COMPLETE
! 5 1-418-071-11 FLASH UNIT (50080)
7 1-418-072-11 BLOCK (50080), MF
8 X-3949-053-1 GRILLE ASSY, MICROPHONE
9 3-969-380-01 SPRING, BATTERY
10 3-050-468-01 SCREW, TRIPOD
11 X-3949-052-1 SHAFT ASSY, HINGE
12 X-3949-054-1 CAP ASSY, LENS
13 X-3949-051-1 CABINET (FRONT) ASSY
14 3-724-549-01 STRING, CAP
15 3-736-363-41 TAPPING
16 3-968-729-51 SCREW (M2), LOCK ACE, P2
17 X-3949-268-1 LID ASSY, BATTERY
18 3-713-791-31 SCREW (M1.7X6), TAPPING, P2
19 3-948-339-61 TAPPING
20 3-052-574-01 CLAW, BT LOCK
21 X-3949-269-1 RING ASSY, MF
J901 1-694-297-31 TERMINAL BOARD, BATTERY
MIC901 1-542-312-11 MICROPHONE
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
6-1-1. CABINET (FRONT) SECTION
