Sony MVC-FD81 - Cabinet (Rear) Section

6-2
a
a
PK-44
Board
Board
DD-119
FC-67
51
52
54
55
56
56
57
56
72
72
72
72
75
74
73
53
56
58
59
60
61
62
76
56
56
66
64
65
63
68
69
70
77
71
67
not supplied
SP901
(Note)
not
supplied
not
supplied
not
supplied
not
supplied
LCD901
ND901
not
supplied
not
supplied
51 X-3949-050-1 FRAME ASSY, MAIN
52 1-759-679-11 DRIVE, FLOPPY DISK (3.5 INCH)
53 3-050-457-01 LID, SIDE
54 3-050-458-01 SPRING (UPPER), SIDE
* 55 3-052-567-01 RETAINER, SPEAKER
56 3-948-339-61 TAPPING
57 3-352-483-01 SCREW (M2), STEP
58 3-052-530-01 CABINET, SIDE
59 3-052-531-01 SHEET METAL (R), STRAP
60 3-052-606-01 HOLDER, POWER
61 3-052-598-01 KNOB, EJECT
62 X-3949-060-1 CABINET (REAR) ASSY
63 3-052-607-01 LID, LITHIUM
64 3-052-597-01 LOCK, EJECT
65 3-052-610-01 SPRING, EJECT
* 66 3-052-609-01 SHEET METAL, EJECT
67 3-052-537-01 SPRING, EXTENSION
68 3-978-439-11 BUTTON, CONTROL
* 69 3-979-292-01 SHEET (CONTROL)
70 A-7073-717-A PK-44 (SHP) BOARD, COMPLETE
71 1-958-571-11 HARNESS (SP-151)
72 3-713-786-21 SCREW (M2X3)
73 A-7094-066-A FC-67 (80) BOARD, COMPLETE
74 A-7073-719-A DD-119(80) BOARD, COMPLETE
75 1-671-864-21 FP-65 (FC-PK) FLEXIBLE BOARD
76 3-713-791-01 SCREW (M1.7X5), TAPPING, P2
77 3-050-489-01 COVER, CPC
LCD901 1-803-036-21 INDICATOR MODULE, LIQUID CRYST
! ND901 1-517-787-11 TUBE, FLUORESCENT,COLD CATHODE
SP901 1-529-174-11 SPEAKER (DIA. 20MM)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

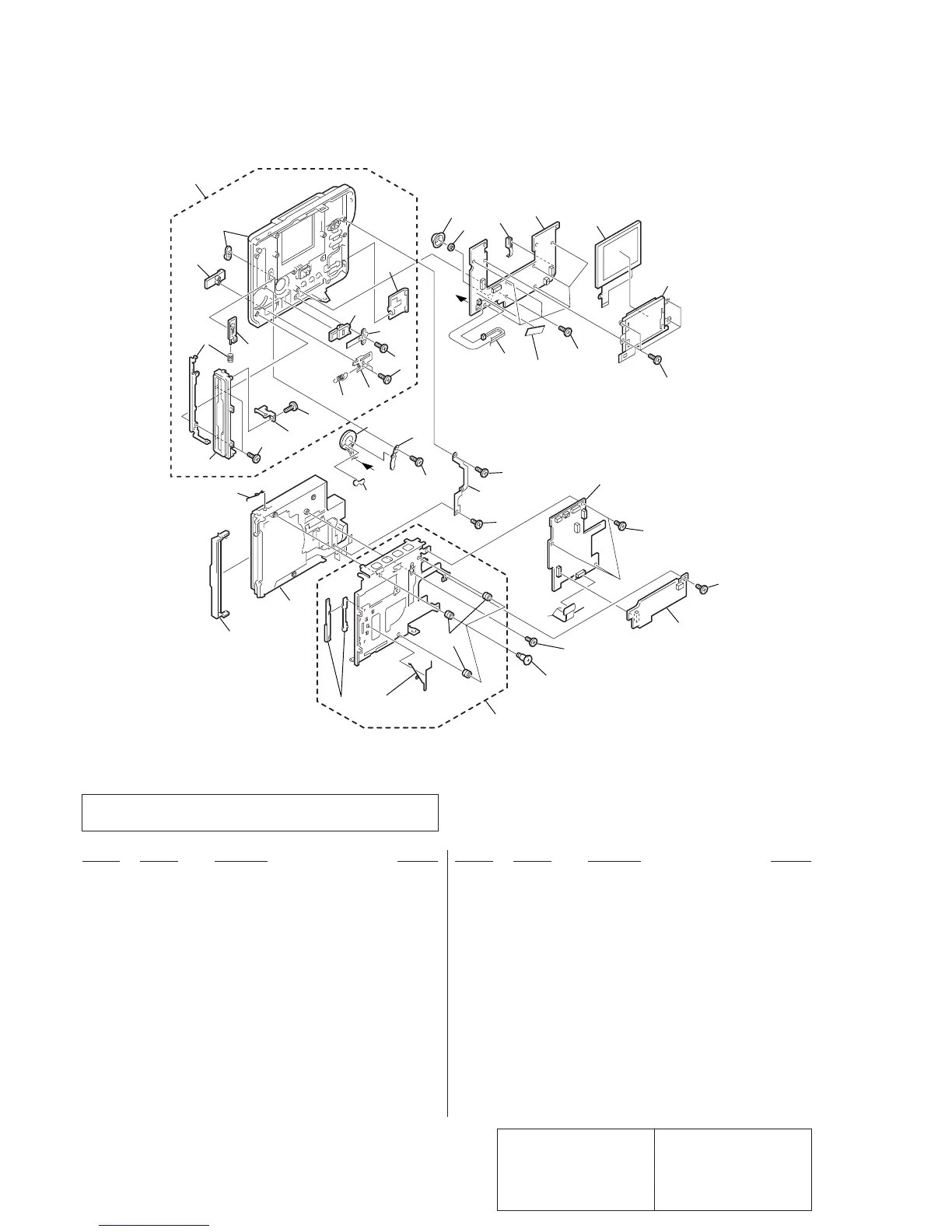

6-1-2. CABINET (REAR) SECTION
(Note) The FD block assembly is a mechanical unit which
has completely been adjusted in the factory.
Note :
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
