MVC-FD81

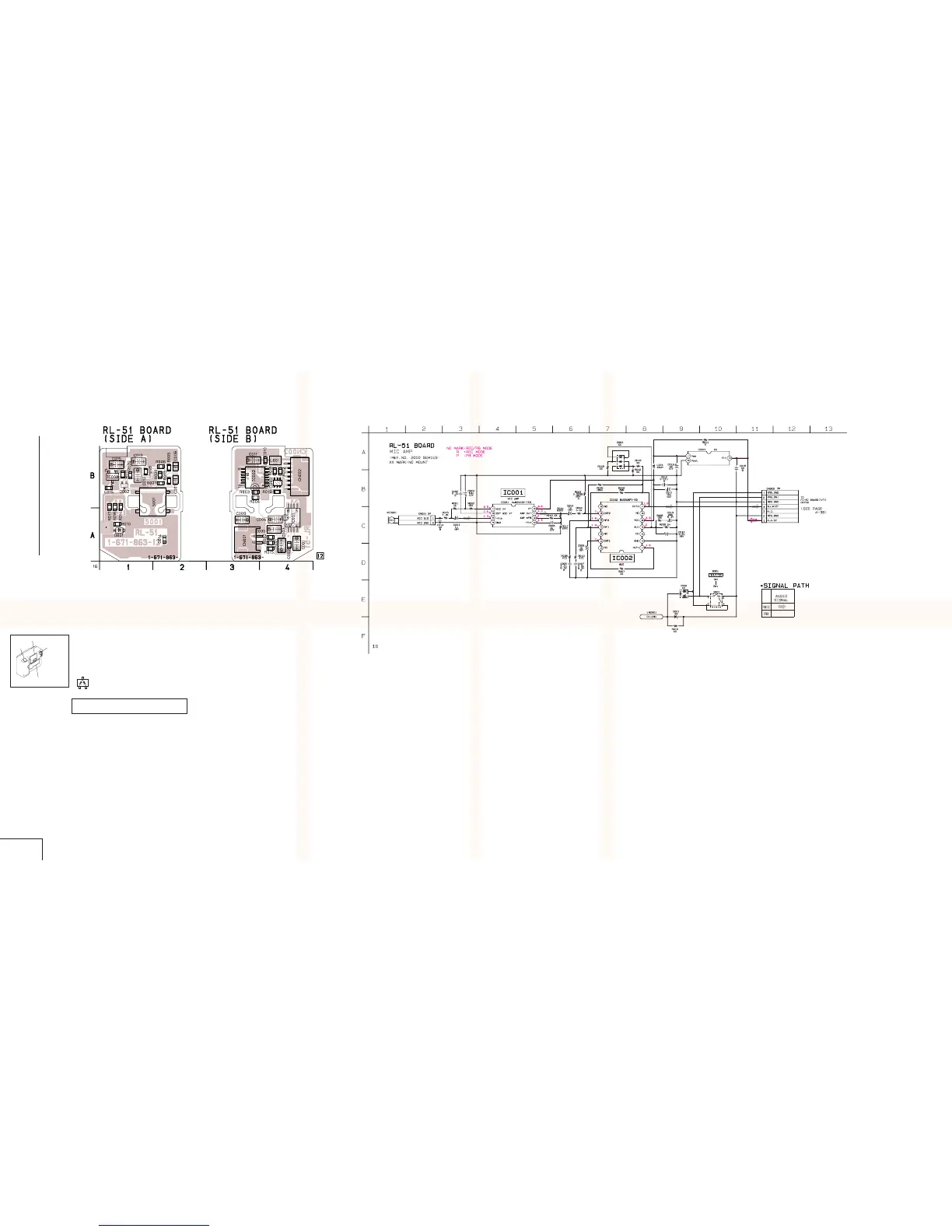

RL-51 (MIC AMP) PRINTED WIRING BOARD
— Ref. No. RL-51 Board; 2,000 Series —
RL-51 BOARD
C001 A-4
C002 A-4
C003 A-4
C004 A-4
C005 A-4
C006 B-2
C007 B-2
C009 A-3
C010 B-4
C011 B-3
C012 B-1
C013 B-1
C014 A-2
C015 B-1
C016 B-1
CN001 A-3
CN002 B-4
D001 A-1
D002 B-1
D003 B-4
IC001 A-4
IC002 B-3
IC003 B-1
L001 B-4
R001 A-4
R002 A-4
R003 B-3
R004 B-3
R005 B-2
R006 B-2
R007 B-2
R008 B-1
R009 B-1
R010 A-1
R011 B-1
R012 B-4
R013 B-2
R014 B-1
R015 A-4
R016 B-1
R017 B-1
R018 B-4
R019 B-4
R020 B-2
S001 B-1
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
3
21
4-62 4-63 4-64E
MIC AMP
RL-51
DD-119 BOARD
(DC/DC CONVERTER)
MF BLOCK (50080)
FLASH UNIT
RL-51
(MIC AMP)
To Next Page
