MVC-FD81

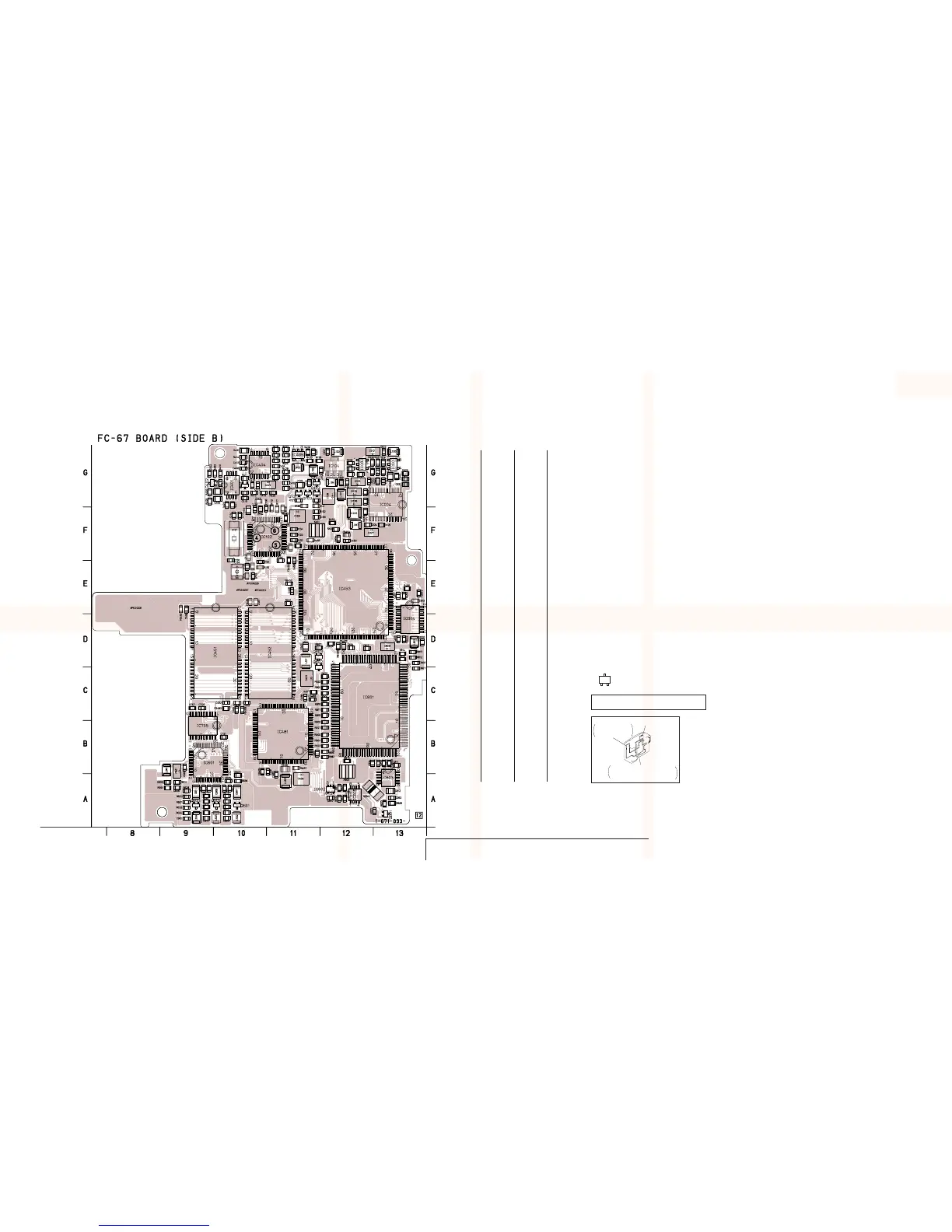

FC-67 BOARD (SIDE B)
C012 G-13
C013 G-13
C014 G-13
C015 G-13
C016 G-13
C017 G-13
C019 G-12
C020 G-12
C021 G-13
C022 G-12
C023 G-12
C024 F-12
C025 G-12
C026 G-12
C027 F-12
C033 G-12
C034 G-12
C035 G-13
C102 G-11
C103 F-10
C104 E-10
C107 E-10
C108 F-11
C109 F-11
C110 G-10
C113 F-10
C114 F-10
C128 G-12
C129 G-11
C130 F-10
C133 E-10
C134 E-10
C137 G-12
C138 G-10
C139 G-10
C402 G-9
C403 G-10
C404 G-10
C406 G-10
C408 G-10
C410 G-10
C413 G-10
C414 G-11
C415 G-11
C416 G-11
C418 G-11
C419 G-10
C420 G-10
C421 G-11
C451 C-11
C452 C-10
C453 F-12
C454 D-12
C455 C-10
C456 E-11
C457 E-13
C458 D-13
C459 F-11
C481 B-11
C482 B-11
C483 B-11
C484 A-11
C485 C-10
C486 E-9
C487 E-10
C488 C-11
C601 B-9
C602 B-9
C603 A-9
C604 A-9
C605 A-10
C606 A-9
C607 A-10
C608 A-10
C609 A-10
C610 A-9
C611 A-9
C612 A-9
C720 C-9
C721 B-10
C804 B-13
C805 D-13
C806 B-13
C807 D-13
C808 D-13
C809 D-13
C810 D-12
C811 B-13
C812 A-13
C813 A-13
C814 A-12
C815 E-13
FB101 F-11
FB103 F-11
FB451 D-11
FB452 D-13
FB453 E-13
FB454 F-12
FB455 F-11
FB456 E-11
FB457 D-12
FB481 B-11
FB482 E-9
FB483 C-10
FB484 E-10
FB485 C-10
FB486 B-10
FB487 B-11
FB488 C-11
FB489 C-10
FB490 D-12
FB491 D-12
FB802 E-13
IC002 G-12
IC003 G-13
IC004 G-13
IC102 F-10
IC104 G-12
IC401 G-10
IC404 G-10
IC405 G-11
IC451 D-10
IC452 D-11
IC453 E-12
IC481 B-11
IC601 B-9
IC705 B-9
IC801 C-12
IC802 A-12
IC803 A-13
IC804 D-13
IC805 A-12
IC852 D-1
L003 F-12
L005 G-13
L007 F-12
L101 G-12
L103 G-12
L104 G-12
L105 G-11
L403 G-11
L451 D-11
L452 A-11
L601 B-9
L602 A-10
L603 A-10
L604 A-9
L801 D-13
Q101 G-11
Q102 G-11
Q103 G-11
Q104 G-11
Q402 G-9
Q403 G-10
Q601 A-10
Q602 A-10
Q603 A-9
Q801 A-13
Q802 D-11
Q803 D-11
R017 G-12
R020 G-13
R021 G-13
R022 G-13
R023 G-13
R024 G-13
R025 F-13
R035 G-12
R036 G-12
R037 G-12
R039 F-12
R040 G-13
R102 F-11
R103 E-10
R104 G-10
R106 F-11
R112 G-11
R113 G-11
R115 E-10
R116 E-10
R117 G-11
R118 G-11
R120 G-11
R121 F-11
R127 G-11
R128 G-11
R132 F-11
R133 F-11
R134 F-11
R138 G-11
R139 G-12
R140 G-10
R141 G-11
R402 G-9
R406 G-9
R407 G-10
R408 G-9
R409 G-10
R410 G-10
R411 G-10
R412 G-10
R413 G-10
R414 G-10
R415 G-10
R416 G-11
R417 G-11
R418 G-11
R419 G-10
R420 G-11
R421 G-11
R422 G-11
R423 G-11
R424 G-11
R425 G-11
R426 G-11
R428 G-11
R429 G-11
R431 G-10
R451 E-11
R452 F-12
R453 F-12
R454 F-12
R455 F-11
R456 E-13
R457 C-11
R601 A-9
R605 A-10
R606 A-9
R610 A-10
R611 A-10
R612 A-10
R613 A-10
R614 A-10
R615 A-9
R616 A-9
R617 A-9
R618 A-9
R619 A-9
R620 A-9
R621 A-9
R622 A-9
R623 A-9
R624 A-9
R629 B-10
R630 A-10
R757 C-9
R802 B-12
R803 B-12
R804 B-12
R805 B-12
R806 B-12
R807 B-12
R808 C-12
R809 B-13
R810 B-13
R811 A-12
R812 D-13
R813 D-13
R814 D-13
R815 D-13
R816 C-12
R817 C-12
R818 C-12
R819 C-12
R820 C-12
R821 C-12
R822 C-12
R823 C-12
R825 A-13
R826 A-13
R827 A-13
R830 A-12
R831 A-12
R832 A-12
R870 B-12
R887 D-11
SE801 A-12
X101 F-10
X451 F-11
X803 B-12
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
4-11
CAMERA PROCESS, AUDIO PROCESS, MOTOR DRIVE, MODE CONTROL
FC-67
CD-206
(CCD IMAGER)
PK-44
REC/PB AMP, LCD DRIVE,
TIMING GENERATOR,
BACK-LIGHT DRIVE,
MODE KEY SWITCH
FC-67
CAMERA Y/C PROCESS,
DRAM CONTROL, LENS MOTOR DRIVE,
D/A CONVERTER, AUDIO A/D.D/A CONVERTER,
FD/SYSTEM CONTROL, HI CONTROL
MVC-FD81
4-12
