MVC-FD81

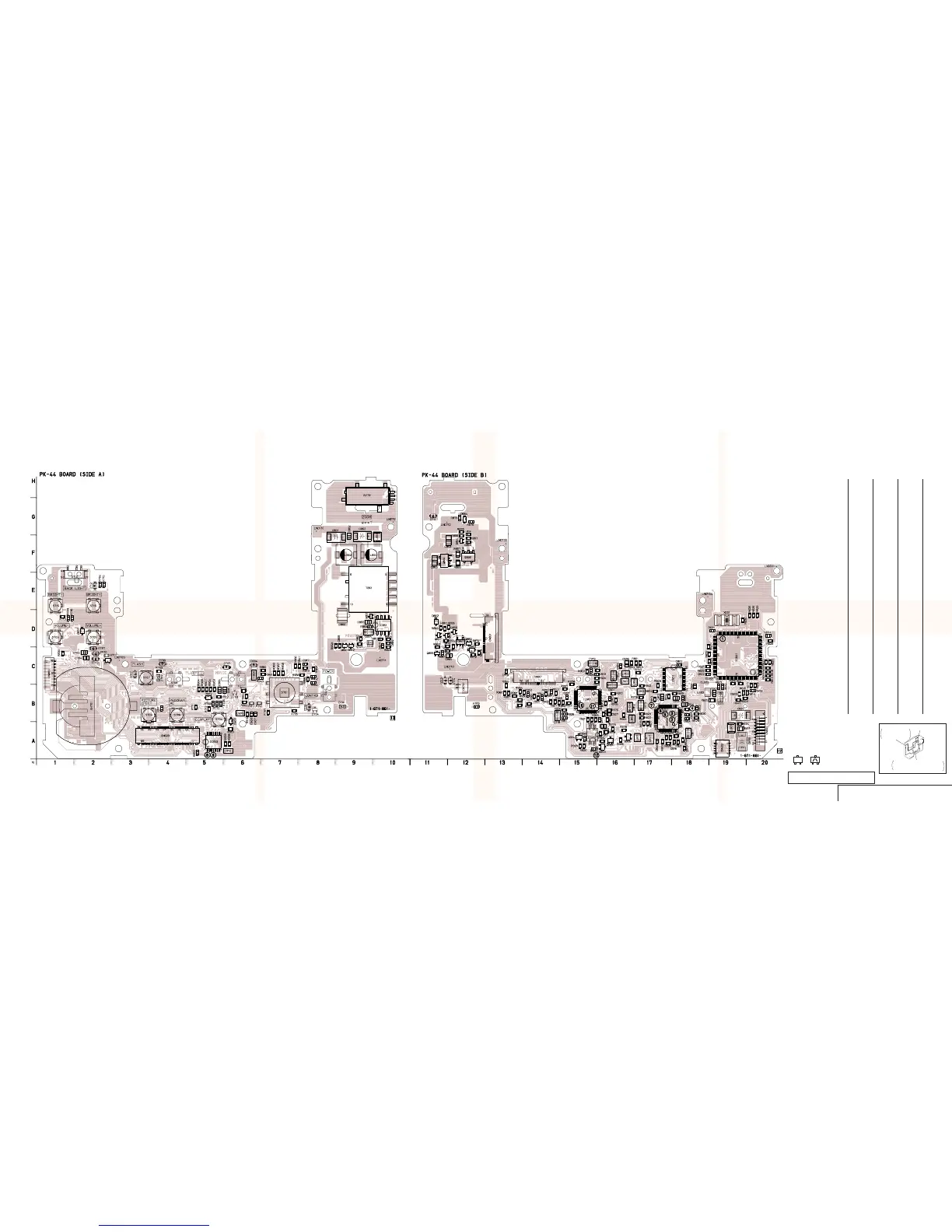

PK-44 (REC/PB AMP, LCD DRIVE, TIMING GENERATOR, BACK-LIGHT, MODE SWITCH) PRINTED WIRING BOARD
— Ref. No. PK-44 Board; 2,000 Series —
PK-44 BOARD
BH701 B-2
C601 B-19
C602 C-18
C603 C-19
C604 D-20
C605 B-19
C606 A-19
C607 B-19
C704 C-2
C705 C-2
C801 B-18
C802 C-18
C803 A-18
C804 B-18
C805 B-18
C806 C-16
C807 A-17
C808 A-17
C810 B-16
C811 B-4
C812 B-17
C813 B-18
C814 B-18
C815 B-17
C816 A-18
C817 A-18
C851 D-10
C852 F-9
C853 F-12
C854 D-9
C855 D-9
C856 H-12
C857 D-10
C858 D-9
C859 F-12
C860 D-10
C861 F-9
C862 F-9
C863 F-11
C865 C-12
C866 D-9
C867 C-12
C901 B-16
C902 C-16
C903 B-16
C904 C-16
C905 B-6
C906 B-5
C907 B-6
C908 B-6
C909 A-16
C911 B-16
C913 C-15
C915 A-6
C916 B-14
C917 C-8
C918 C-13
C919 C-15
C920 C-6
C921 B-15
C926 A-5
C927 B-16
CN601 A-20
CN602 A-19
CN603 A-4
CN701 B-12
CN802 C-1
CN851 D-13
CN901 C-14
D601 D-2
D701 B-9
D702 C-4
D703 B-6
D704 B-8
D705 C-6
D706 C-4
D707 C-2
D709 C-2
D710 C-2
D711 G-11
D712 E-2
D713 C-11
D714 C-12
D715 D-9
D716 C-2
D717 C-3
D718 B-8
D852 D-11
D853 C-12
D854 H-12
D902 B-5
D903 B-6
D904 C-6
IC601 C-19
IC801 C-18
IC802 B-17
IC851 D-10
IC852 D-12
IC901 B-15
IC902 A-15
IC903 A-5
L601 A-19
L602 B-18
L801 A-17
L802 B-16
L851 F-10
L852 F-9
L853 F-9
L901 C-16
L902 C-16
L903 B-17
L904 C-17
L905 B-6
Q851 D-9
Q852 D-9
Q853 D-9
Q854 F-12
Q855 C-11
Q856 F-12
Q857 D-11
Q858 D-11
Q859 D-12
Q860 F-11
Q862 D-12
Q903 A-16
Q904 A-15
Q905 A-16
Q906 A-16
R601 A-19
R602 B-19
R603 B-19
R605 B-19
R606 C-19
R607 C-19
R608 B-19
R609 B-20
R610 C-20
R612 B-19
R613 B-19
R614 B-20
R615 B-19
R616 B-20
R617 B-20
R618 C-20
R619 C-20
R620 D-19
R621 C-18
R622 C-18
R623 D-20
R624 C-20
R625 D-20
R626 D-20
R627 C-20
R628 D-20
R629 B-18
R630 B-18
R631 D-19
R632 C-19
R633 C-20
R634 D-19
R701 B-6
R702 B-12
R703 C-4
R704 E-2
R705 B-7
R706 B-5
R707 B-7
R708 B-5
R709 D-9
R710 B-5
R711 B-5
R712 B-5
R713 D-1
R714 B-6
R715 E-2
R716 D-1
R717 C-2
R722 C-17
R729 D-1
R801 C-17
R802 C-16
R803 C-17
R804 B-17
R805 B-18
R806 B-17
R812 B-18
R813 B-17
R814 B-17
R815 B-18
R817 B-18
R818 A-17
R819 A-17
R820 A-18
R821 A-18
R822 B-17
R823 B-17
R824 A-18
R825 A-17
R826 A-17
R827 A-17
R828 A-17
R830 C-1
R852 D-9
R853 D-9
R854 D-10
R855 H-12
R856 F-12
R857 F-12
R858 D-9
R859 D-10
R860 C-11
R861 C-11
R862 D-11
R863 D-11
R864 D-11
R865 D-12
R867 F-12
R868 F-12
R870 D-12
R871 D-12
R872 C-12
R873 C-12
R874 D-12
R875 H-12
R876 H-12
R901 B-16
R902 B-6
R903 B-17
R904 B-5
R905 B-5
R906 B-16
R907 B-5
R908 B-5
R909 B-5
R910 B-16
R911 B-6
R912 B-5
R913 A-6
R914 B-6
R915 A-16
R916 B-15
R918 A-16
R920 C-15
R921 B-15
R922 B-15
R924 C-15
R926 B-15
R927 C-16
R928 B-15
R929 A-15
R930 A-15
R931 B-6
R932 A-15
R933 A-15
R934 A-16
R935 A-16
R936 B-15
R937 B-15
R938 A-6
R939 A-6
R940 B-15
R941 C-8
R942 C-8
R943 C-6
R944 C-7
R945 B-15
R946 B-15
R947 B-14
R948 B-14
R949 B-14
R950 B-14
R951 B-14
R952 B-14
R953 B-14
R954 B-13
R955 B-13
R956 C-8
R957 B-13
R958 C-15
R959 C-15
R960 C-7
R961 B-13
R962 C-8
R963 C-8
R964 C-8
R965 C-8
R966 C-7
R967 C-7
R968 C-7
R969 C-7
R970 B-14
R971 B-14
R972 B-14
R974 B-16
R975 B-16
R976 B-17
R977 B-13
R978 A-16
R979 A-16
R980 B-16
R981 B-15
R988 B-16
R989 B-14
R990 B-13
R991 B-13
RV701 H-9
S701 B-7
S702 B-8
S703 B-4
S704 B-5
S705 D-2
S706 B-4
S707 C-3
S708 C-4
S709 D-1
S710 E-2
S712 C-6
S715 E-1
S716 E-2
T851 E-9
X601 D-19
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
3
21
4-51 4-52 4-53 4-54
REC/PB AMP, LCD DRIVE, TIMING GENERATOR
PK-44
CD-206
(CCD IMAGER)
PK-44
REC/PB AMP, LCD DRIVE,
TIMING GENERATOR,
BACK-LIGHT DRIVE,
MODE KEY SWITCH
FC-67
CAMERA Y/C PROCESS,
DRAM CONTROL, LENS MOTOR DRIVE,
D/A CONVERTER, AUDIO A/D.D/A CONVERTER,
FD/SYSTEM CONTROL, HI CONTROL
To Next Page
