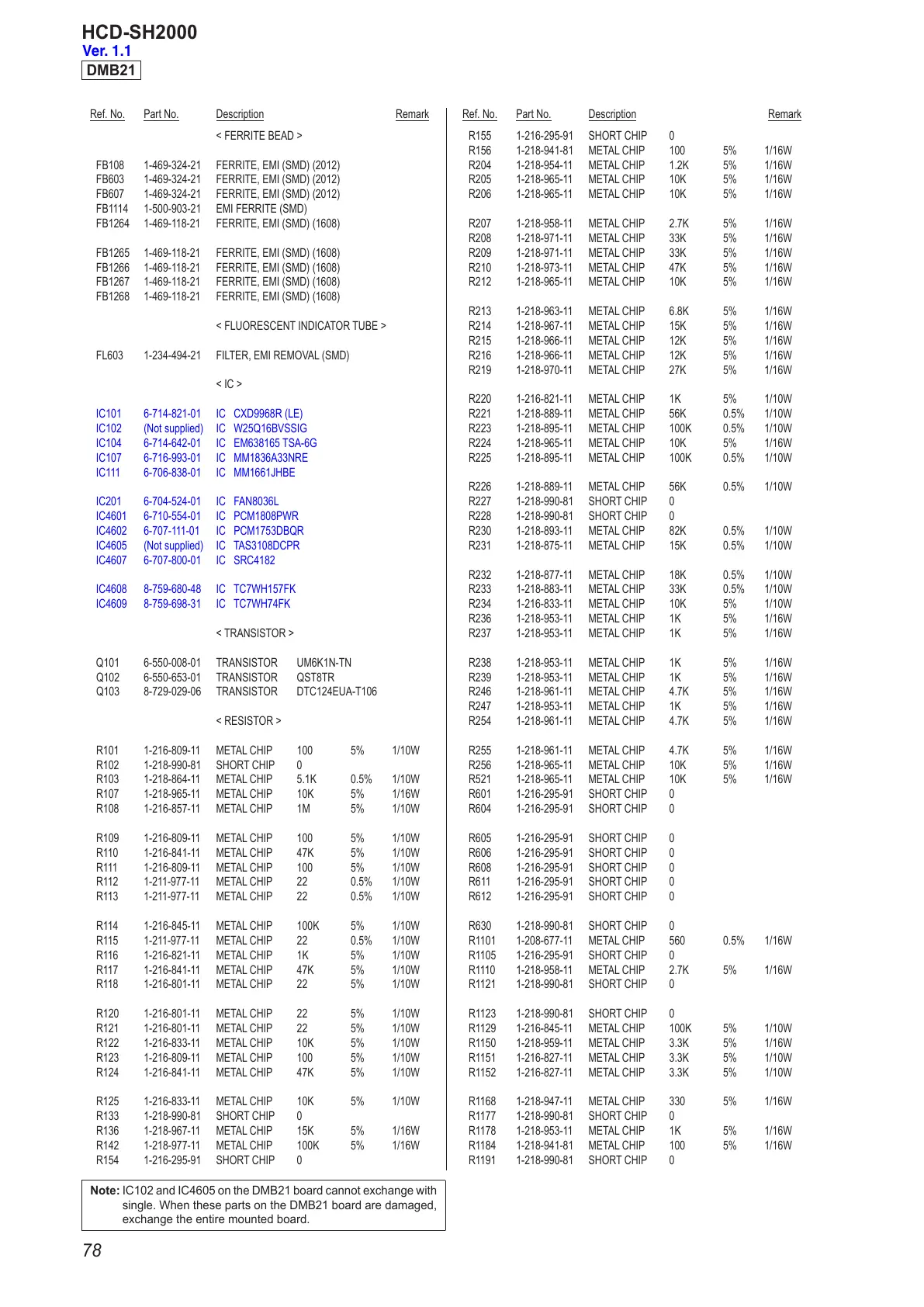

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HCD-SH2000
78
< FERRITE BEAD >
FB108 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB603 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB607 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB1114 1-500-903-21 EMI FERRITE (SMD)
FB1264 1-469-118-21 FERRITE, EMI (SMD) (1608)
FB1265 1-469-118-21 FERRITE, EMI (SMD) (1608)
FB1266 1-469-118-21 FERRITE, EMI (SMD) (1608)
FB1267 1-469-118-21 FERRITE, EMI (SMD) (1608)
FB1268 1-469-118-21 FERRITE, EMI (SMD) (1608)
< FLUORESCENT INDICATOR TUBE >
FL603 1-234-494-21 FILTER, EMI REMOVAL (SMD)
< IC >
IC101 6-714-821-01 IC CXD9968R (LE)
IC102 (Not supplied) IC W25Q16BVSSIG
IC104 6-714-642-01 IC EM638165 TSA-6G
IC107 6-716-993-01 IC MM1836A33NRE
IC111 6-706-838-01 IC MM1661JHBE
IC201 6-704-524-01 IC FAN8036L
IC4601 6-710-554-01 IC PCM1808PWR
IC4602 6-707-111-01 IC PCM1753DBQR
IC4605 (Not supplied) IC TAS3108DCPR
IC4607 6-707-800-01 IC SRC4182
IC4608 8-759-680-48 IC TC7WH157FK
IC4609 8-759-698-31 IC TC7WH74FK
< TRANSISTOR >
Q101 6-550-008-01 TRANSISTOR UM6K1N-TN
Q102 6-550-653-01 TRANSISTOR QST8TR
Q103 8-729-029-06 TRANSISTOR DTC124EUA-T106
< RESISTOR >
R101 1-216-809-11 METAL CHIP 100 5% 1/10W
R102 1-218-990-81 SHORT CHIP 0
R103 1-218-864-11 METAL CHIP 5.1K 0.5% 1/10W
R107 1-218-965-11 METAL CHIP 10K 5% 1/16W
R108 1-216-857-11 METAL CHIP 1M 5% 1/10W
R109 1-216-809-11 METAL CHIP 100 5% 1/10W
R110 1-216-841-11 METAL CHIP 47K 5% 1/10W
R111 1-216-809-11 METAL CHIP 100 5% 1/10W
R112 1-211-977-11 METAL CHIP 22 0.5% 1/10W
R113 1-211-977-11 METAL CHIP 22 0.5% 1/10W
R114 1-216-845-11 METAL CHIP 100K 5% 1/10W
R115 1-211-977-11 METAL CHIP 22 0.5% 1/10W
R116 1-216-821-11 METAL CHIP 1K 5% 1/10W
R117 1-216-841-11 METAL CHIP 47K 5% 1/10W
R118 1-216-801-11 METAL CHIP 22 5% 1/10W
R120 1-216-801-11 METAL CHIP 22 5% 1/10W
R121 1-216-801-11 METAL CHIP 22 5% 1/10W
R122 1-216-833-11 METAL CHIP 10K 5% 1/10W
R123 1-216-809-11 METAL CHIP 100 5% 1/10W
R124 1-216-841-11 METAL CHIP 47K 5% 1/10W
R125 1-216-833-11 METAL CHIP 10K 5% 1/10W
R133 1-218-990-81 SHORT CHIP 0
R136 1-218-967-11 METAL CHIP 15K 5% 1/16W
R142 1-218-977-11 METAL CHIP 100K 5% 1/16W
R154 1-216-295-91 SHORT CHIP 0
R155 1-216-295-91 SHORT CHIP 0
R156 1-218-941-81 METAL CHIP 100 5% 1/16W
R204 1-218-954-11 METAL CHIP 1.2K 5% 1/16W
R205 1-218-965-11 METAL CHIP 10K 5% 1/16W
R206 1-218-965-11 METAL CHIP 10K 5% 1/16W
R207 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R208 1-218-971-11 METAL CHIP 33K 5% 1/16W
R209 1-218-971-11 METAL CHIP 33K 5% 1/16W
R210 1-218-973-11 METAL CHIP 47K 5% 1/16W
R212 1-218-965-11 METAL CHIP 10K 5% 1/16W
R213 1-218-963-11 METAL CHIP 6.8K 5% 1/16W
R214 1-218-967-11 METAL CHIP 15K 5% 1/16W
R215 1-218-966-11 METAL CHIP 12K 5% 1/16W
R216 1-218-966-11 METAL CHIP 12K 5% 1/16W
R219 1-218-970-11 METAL CHIP 27K 5% 1/16W
R220 1-216-821-11 METAL CHIP 1K 5% 1/10W
R221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W
R223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W
R224 1-218-965-11 METAL CHIP 10K 5% 1/16W
R225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W
R226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W
R227 1-218-990-81 SHORT CHIP 0
R228 1-218-990-81 SHORT CHIP 0
R230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W
R231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W
R233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W
R234 1-216-833-11 METAL CHIP 10K 5% 1/10W
R236 1-218-953-11 METAL CHIP 1K 5% 1/16W
R237 1-218-953-11 METAL CHIP 1K 5% 1/16W
R238 1-218-953-11 METAL CHIP 1K 5% 1/16W
R239 1-218-953-11 METAL CHIP 1K 5% 1/16W
R246 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R247 1-218-953-11 METAL CHIP 1K 5% 1/16W
R254 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R255 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R256 1-218-965-11 METAL CHIP 10K 5% 1/16W
R521 1-218-965-11 METAL CHIP 10K 5% 1/16W
R601 1-216-295-91 SHORT CHIP 0
R604 1-216-295-91 SHORT CHIP 0
R605 1-216-295-91 SHORT CHIP 0
R606 1-216-295-91 SHORT CHIP 0
R608 1-216-295-91 SHORT CHIP 0
R611 1-216-295-91 SHORT CHIP 0
R612 1-216-295-91 SHORT CHIP 0
R630 1-218-990-81 SHORT CHIP 0
R1101 1-208-677-11 METAL CHIP 560 0.5% 1/16W
R1105 1-216-295-91 SHORT CHIP 0
R1110 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R1121 1-218-990-81 SHORT CHIP 0
R1123 1-218-990-81 SHORT CHIP 0
R1129 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1150 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R1151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1168 1-218-947-11 METAL CHIP 330 5% 1/16W
R1177 1-218-990-81 SHORT CHIP 0
R1178 1-218-953-11 METAL CHIP 1K 5% 1/16W
R1184 1-218-941-81 METAL CHIP 100 5% 1/16W
R1191 1-218-990-81 SHORT CHIP 0
DMB21
Note: IC102 and IC4605 on the DMB21 board cannot exchange with
single. When these parts on the DMB21 board are damaged,
exchange the entire mounted board.
Ver. 1.1
