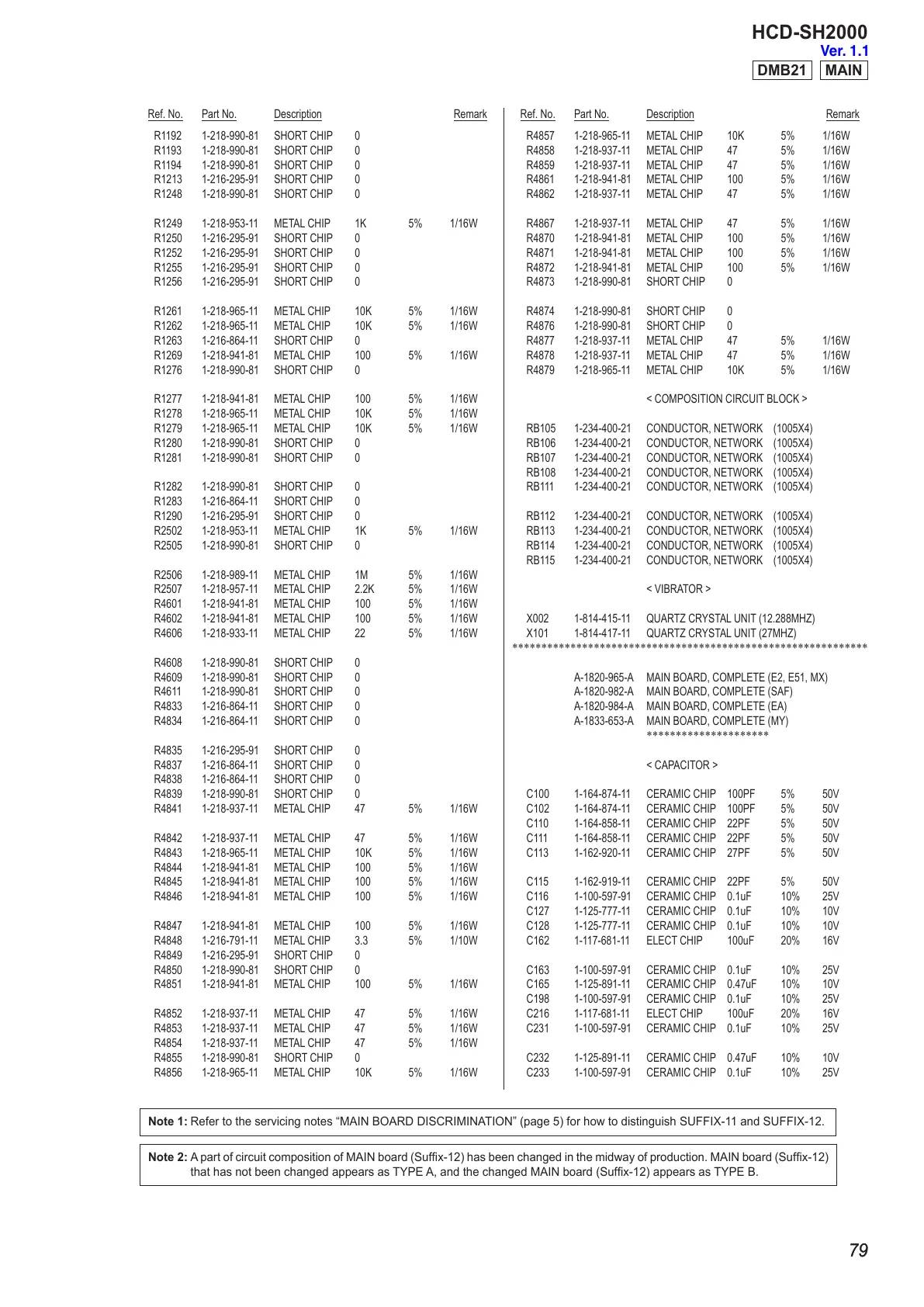

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HCD-SH2000
7979
R1192 1-218-990-81 SHORT CHIP 0
R1193 1-218-990-81 SHORT CHIP 0
R1194 1-218-990-81 SHORT CHIP 0
R1213 1-216-295-91 SHORT CHIP 0
R1248 1-218-990-81 SHORT CHIP 0
R1249 1-218-953-11 METAL CHIP 1K 5% 1/16W
R1250 1-216-295-91 SHORT CHIP 0
R1252 1-216-295-91 SHORT CHIP 0
R1255 1-216-295-91 SHORT CHIP 0
R1256 1-216-295-91 SHORT CHIP 0
R1261 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1262 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1263 1-216-864-11 SHORT CHIP 0
R1269 1-218-941-81 METAL CHIP 100 5% 1/16W
R1276 1-218-990-81 SHORT CHIP 0
R1277 1-218-941-81 METAL CHIP 100 5% 1/16W
R1278 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1279 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1280 1-218-990-81 SHORT CHIP 0
R1281 1-218-990-81 SHORT CHIP 0
R1282 1-218-990-81 SHORT CHIP 0
R1283 1-216-864-11 SHORT CHIP 0
R1290 1-216-295-91 SHORT CHIP 0
R2502 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2505 1-218-990-81 SHORT CHIP 0
R2506 1-218-989-11 METAL CHIP 1M 5% 1/16W
R2507 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R4601 1-218-941-81 METAL CHIP 100 5% 1/16W
R4602 1-218-941-81 METAL CHIP 100 5% 1/16W
R4606 1-218-933-11 METAL CHIP 22 5% 1/16W
R4608 1-218-990-81 SHORT CHIP 0
R4609 1-218-990-81 SHORT CHIP 0
R4611 1-218-990-81 SHORT CHIP 0
R4833 1-216-864-11 SHORT CHIP 0
R4834 1-216-864-11 SHORT CHIP 0
R4835 1-216-295-91 SHORT CHIP 0
R4837 1-216-864-11 SHORT CHIP 0
R4838 1-216-864-11 SHORT CHIP 0
R4839 1-218-990-81 SHORT CHIP 0
R4841 1-218-937-11 METAL CHIP 47 5% 1/16W
R4842 1-218-937-11 METAL CHIP 47 5% 1/16W
R4843 1-218-965-11 METAL CHIP 10K 5% 1/16W
R4844 1-218-941-81 METAL CHIP 100 5% 1/16W
R4845 1-218-941-81 METAL CHIP 100 5% 1/16W
R4846 1-218-941-81 METAL CHIP 100 5% 1/16W
R4847 1-218-941-81 METAL CHIP 100 5% 1/16W
R4848 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R4849 1-216-295-91 SHORT CHIP 0
R4850 1-218-990-81 SHORT CHIP 0
R4851 1-218-941-81 METAL CHIP 100 5% 1/16W
R4852 1-218-937-11 METAL CHIP 47 5% 1/16W
R4853 1-218-937-11 METAL CHIP 47 5% 1/16W
R4854 1-218-937-11 METAL CHIP 47 5% 1/16W
R4855 1-218-990-81 SHORT CHIP 0
R4856 1-218-965-11 METAL CHIP 10K 5% 1/16W
R4857 1-218-965-11 METAL CHIP 10K 5% 1/16W
R4858 1-218-937-11 METAL CHIP 47 5% 1/16W
R4859 1-218-937-11 METAL CHIP 47 5% 1/16W
R4861 1-218-941-81 METAL CHIP 100 5% 1/16W
R4862 1-218-937-11 METAL CHIP 47 5% 1/16W
R4867 1-218-937-11 METAL CHIP 47 5% 1/16W
R4870 1-218-941-81 METAL CHIP 100 5% 1/16W
R4871 1-218-941-81 METAL CHIP 100 5% 1/16W
R4872 1-218-941-81 METAL CHIP 100 5% 1/16W
R4873 1-218-990-81 SHORT CHIP 0
R4874 1-218-990-81 SHORT CHIP 0
R4876 1-218-990-81 SHORT CHIP 0
R4877 1-218-937-11 METAL CHIP 47 5% 1/16W
R4878 1-218-937-11 METAL CHIP 47 5% 1/16W
R4879 1-218-965-11 METAL CHIP 10K 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB105 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB106 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB107 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB108 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB111 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB112 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB113 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB114 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB115 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
< VIBRATOR >
X002 1-814-415-11 QUARTZ CRYSTAL UNIT (12.288MHZ)
X101 1-814-417-11 QUARTZ CRYSTAL UNIT (27MHZ)
*************************************************************
A-1820-965-A MAIN BOARD, COMPLETE (E2, E51, MX)
A-1820-982-A MAIN BOARD, COMPLETE (SAF)
A-1820-984-A MAIN BOARD, COMPLETE (EA)
A-1833-653-A MAIN BOARD, COMPLETE (MY)
*********************
< CAPACITOR >
C100 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C102 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C110 1-164-858-11 CERAMIC CHIP 22PF 5% 50V
C111 1-164-858-11 CERAMIC CHIP 22PF 5% 50V
C113 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C115 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C116 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C127 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C128 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C162 1-117-681-11 ELECT CHIP 100uF 20% 16V
C163 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C165 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C198 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C216 1-117-681-11 ELECT CHIP 100uF 20% 16V
C231 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C232 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C233 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
DMB21 MAIN
Note 1: Refer to the servicing notes “MAIN BOARD DISCRIMINATION” (page 5) for how to distinguish SUFFIX-11 and SUFFIX-12.
Note 2: A part of circuit composition of MAIN board (Suffi x-12) has been changed in the midway of production. MAIN board (Suffi x-12)
that has not been changed appears as TYPE A, and the changed MAIN board (Suffi x-12) appears as TYPE B.
Ver. 1.1
