Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

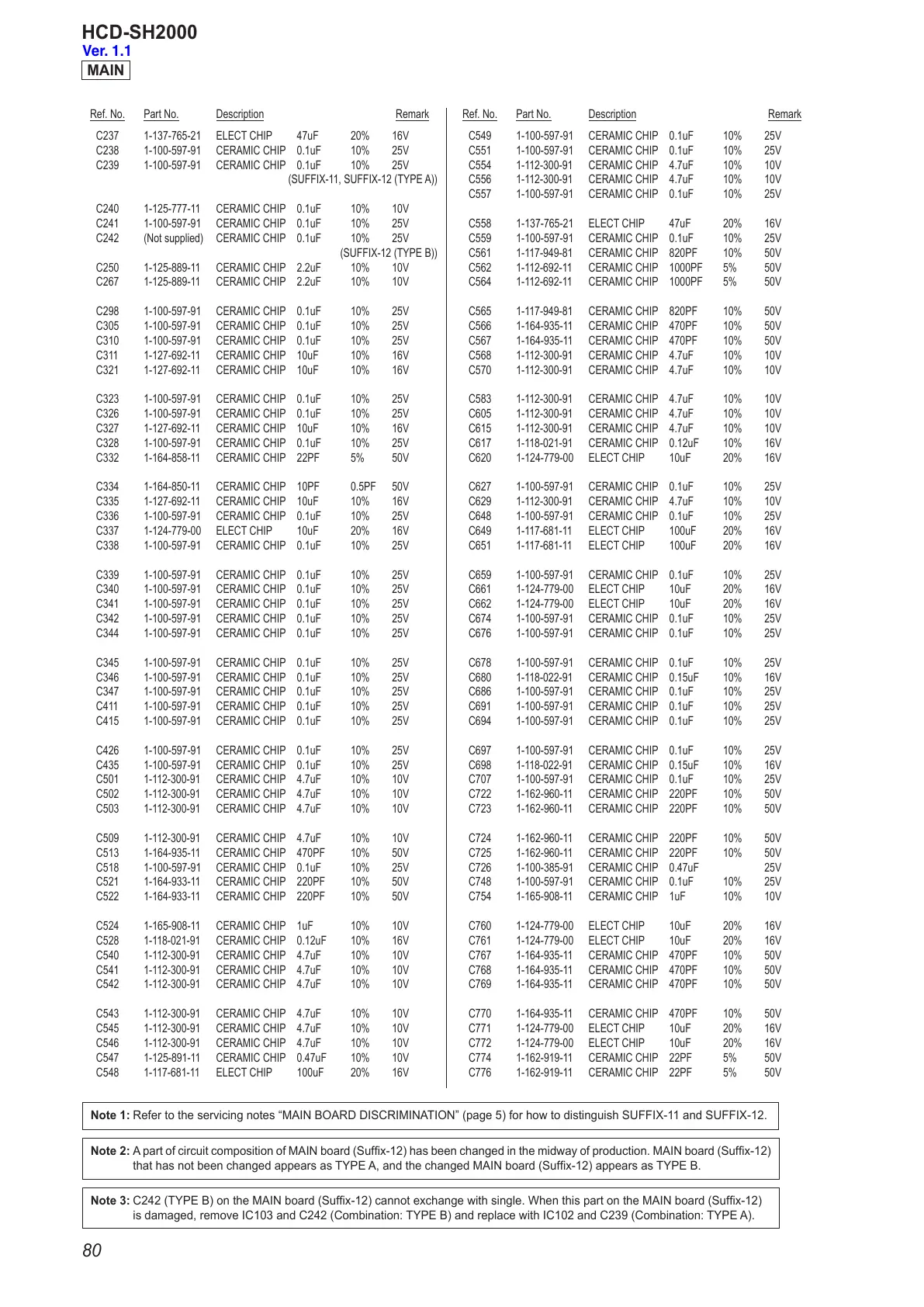

HCD-SH2000
80
C237 1-137-765-21 ELECT CHIP 47uF 20% 16V
C238 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C239 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
(SUFFIX-11, SUFFIX-12 (TYPE A))
C240 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C241 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C242 (Not supplied) CERAMIC CHIP 0.1uF 10% 25V
(SUFFIX-12 (TYPE B))
C250 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C267 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C298 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C305 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C310 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C311 1-127-692-11 CERAMIC CHIP 10uF 10% 16V
C321 1-127-692-11 CERAMIC CHIP 10uF 10% 16V
C323 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C326 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C327 1-127-692-11 CERAMIC CHIP 10uF 10% 16V
C328 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C332 1-164-858-11 CERAMIC CHIP 22PF 5% 50V
C334 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C335 1-127-692-11 CERAMIC CHIP 10uF 10% 16V
C336 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C337 1-124-779-00 ELECT CHIP 10uF 20% 16V
C338 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C339 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C340 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C341 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C342 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C344 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C345 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C346 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C347 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C411 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C415 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C426 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C435 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C501 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C502 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C503 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C509 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C513 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
C518 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C521 1-164-933-11 CERAMIC CHIP 220PF 10% 50V
C522 1-164-933-11 CERAMIC CHIP 220PF 10% 50V
C524 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C528 1-118-021-91 CERAMIC CHIP 0.12uF 10% 16V
C540 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C541 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C542 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C543 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C545 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C546 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C547 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C548 1-117-681-11 ELECT CHIP 100uF 20% 16V
C549 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C551 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C554 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C556 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C557 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C558 1-137-765-21 ELECT CHIP 47uF 20% 16V
C559 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C561 1-117-949-81 CERAMIC CHIP 820PF 10% 50V
C562 1-112-692-11 CERAMIC CHIP 1000PF 5% 50V
C564 1-112-692-11 CERAMIC CHIP 1000PF 5% 50V
C565 1-117-949-81 CERAMIC CHIP 820PF 10% 50V
C566 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
C567 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
C568 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C570 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C583 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C605 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C615 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C617 1-118-021-91 CERAMIC CHIP 0.12uF 10% 16V
C620 1-124-779-00 ELECT CHIP 10uF 20% 16V
C627 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C629 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C648 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C649 1-117-681-11 ELECT CHIP 100uF 20% 16V
C651 1-117-681-11 ELECT CHIP 100uF 20% 16V
C659 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C661 1-124-779-00 ELECT CHIP 10uF 20% 16V
C662 1-124-779-00 ELECT CHIP 10uF 20% 16V
C674 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C676 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C678 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C680 1-118-022-91 CERAMIC CHIP 0.15uF 10% 16V
C686 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C691 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C694 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C697 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C698 1-118-022-91 CERAMIC CHIP 0.15uF 10% 16V
C707 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C722 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C723 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C724 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C725 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C726 1-100-385-91 CERAMIC CHIP 0.47uF 25V
C748 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C754 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C760 1-124-779-00 ELECT CHIP 10uF 20% 16V
C761 1-124-779-00 ELECT CHIP 10uF 20% 16V
C767 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
C768 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
C769 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
C770 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
C771 1-124-779-00 ELECT CHIP 10uF 20% 16V
C772 1-124-779-00 ELECT CHIP 10uF 20% 16V
C774 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C776 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
MAIN
Note 1: Refer to the servicing notes “MAIN BOARD DISCRIMINATION” (page 5) for how to distinguish SUFFIX-11 and SUFFIX-12.
Note 2: A part of circuit composition of MAIN board (Suffi x-12) has been changed in the midway of production. MAIN board (Suffi x-12)
that has not been changed appears as TYPE A, and the changed MAIN board (Suffi x-12) appears as TYPE B.
Note 3: C242 (TYPE B) on the MAIN board (Suffi x-12) cannot exchange with single. When this part on the MAIN board (Suffi x-12)
is damaged, remove IC103 and C242 (Combination: TYPE B) and replace with IC102 and C239 (Combination: TYPE A).
Ver. 1.1
