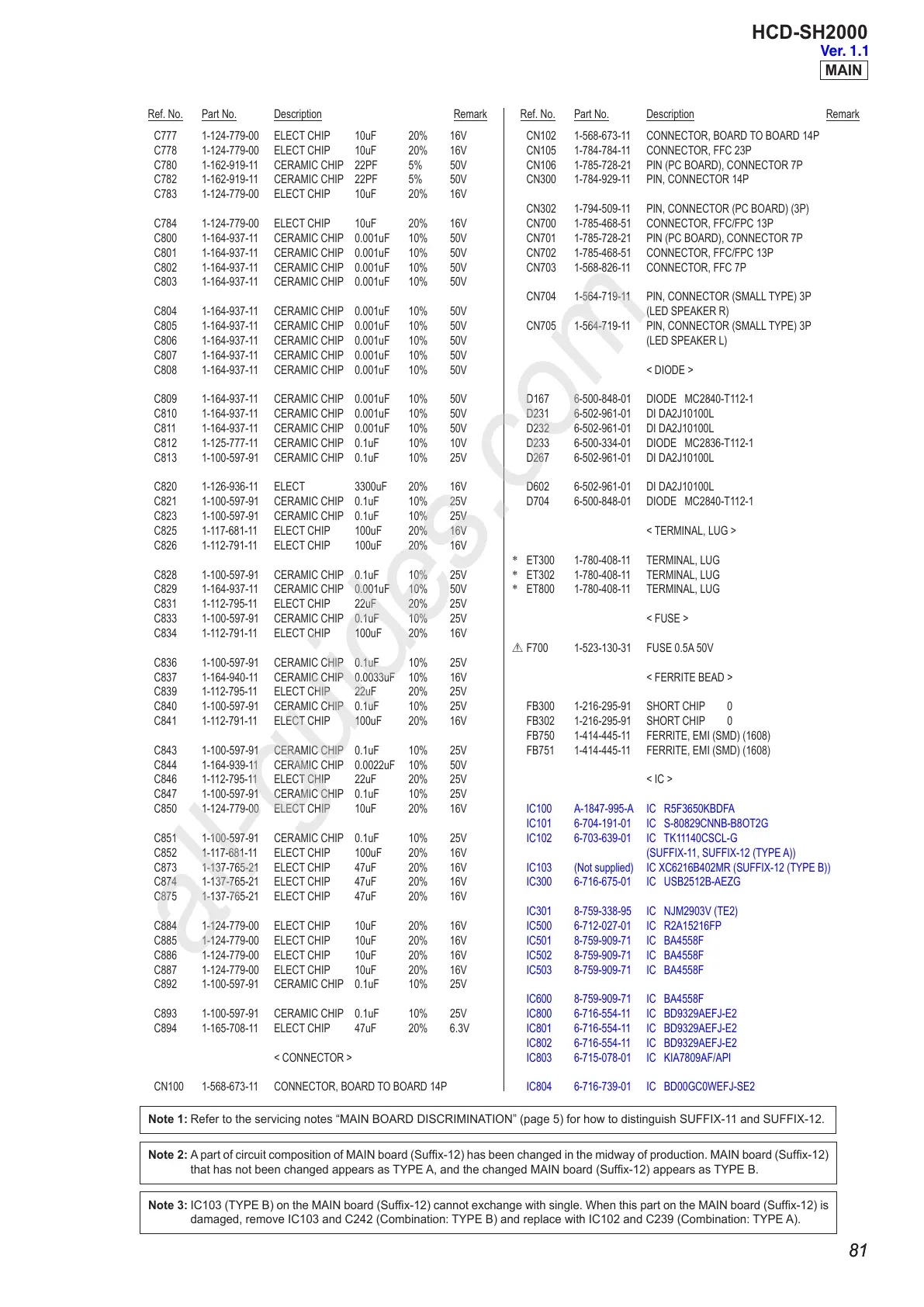

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HCD-SH2000
8181
C777 1-124-779-00 ELECT CHIP 10uF 20% 16V
C778 1-124-779-00 ELECT CHIP 10uF 20% 16V
C780 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C782 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C783 1-124-779-00 ELECT CHIP 10uF 20% 16V
C784 1-124-779-00 ELECT CHIP 10uF 20% 16V
C800 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C801 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C802 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C803 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C804 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C805 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C806 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C807 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C808 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C809 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C810 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C811 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C812 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C813 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C820 1-126-936-11 ELECT 3300uF 20% 16V
C821 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C823 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C825 1-117-681-11 ELECT CHIP 100uF 20% 16V
C826 1-112-791-11 ELECT CHIP 100uF 20% 16V
C828 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C829 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C831 1-112-795-11 ELECT CHIP 22uF 20% 25V
C833 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C834 1-112-791-11 ELECT CHIP 100uF 20% 16V
C836 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C837 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V
C839 1-112-795-11 ELECT CHIP 22uF 20% 25V
C840 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C841 1-112-791-11 ELECT CHIP 100uF 20% 16V
C843 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C844 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V
C846 1-112-795-11 ELECT CHIP 22uF 20% 25V
C847 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C850 1-124-779-00 ELECT CHIP 10uF 20% 16V
C851 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C852 1-117-681-11 ELECT CHIP 100uF 20% 16V
C873 1-137-765-21 ELECT CHIP 47uF 20% 16V
C874 1-137-765-21 ELECT CHIP 47uF 20% 16V
C875 1-137-765-21 ELECT CHIP 47uF 20% 16V
C884 1-124-779-00 ELECT CHIP 10uF 20% 16V
C885 1-124-779-00 ELECT CHIP 10uF 20% 16V
C886 1-124-779-00 ELECT CHIP 10uF 20% 16V
C887 1-124-779-00 ELECT CHIP 10uF 20% 16V
C892 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C893 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C894 1-165-708-11 ELECT CHIP 47uF 20% 6.3V
< CONNECTOR >
CN100 1-568-673-11 CONNECTOR, BOARD TO BOARD 14P
CN102 1-568-673-11 CONNECTOR, BOARD TO BOARD 14P
CN105 1-784-784-11 CONNECTOR, FFC 23P
CN106 1-785-728-21 PIN (PC BOARD), CONNECTOR 7P
CN300 1-784-929-11 PIN, CONNECTOR 14P
CN302 1-794-509-11 PIN, CONNECTOR (PC BOARD) (3P)
CN700 1-785-468-51 CONNECTOR, FFC/FPC 13P
CN701 1-785-728-21 PIN (PC BOARD), CONNECTOR 7P
CN702 1-785-468-51 CONNECTOR, FFC/FPC 13P
CN703 1-568-826-11 CONNECTOR, FFC 7P
CN704 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P
(LED SPEAKER R)
CN705 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P
(LED SPEAKER L)
< DIODE >
D167 6-500-848-01 DIODE MC2840-T112-1
D231 6-502-961-01 DI DA2J10100L
D232 6-502-961-01 DI DA2J10100L
D233 6-500-334-01 DIODE MC2836-T112-1
D267 6-502-961-01 DI DA2J10100L
D602 6-502-961-01 DI DA2J10100L
D704 6-500-848-01 DIODE MC2840-T112-1
< TERMINAL, LUG >
* ET300 1-780-408-11 TERMINAL, LUG
* ET302 1-780-408-11 TERMINAL, LUG
* ET800 1-780-408-11 TERMINAL, LUG
< FUSE >
0 F700 1-523-130-31 FUSE 0.5A 50V
< FERRITE BEAD >
FB300 1-216-295-91 SHORT CHIP 0
FB302 1-216-295-91 SHORT CHIP 0
FB750 1-414-445-11 FERRITE, EMI (SMD) (1608)
FB751 1-414-445-11 FERRITE, EMI (SMD) (1608)
< IC >
IC100 A-1847-995-A IC R5F3650KBDFA
IC101 6-704-191-01 IC S-80829CNNB-B8OT2G
IC102 6-703-639-01 IC TK11140CSCL-G
(SUFFIX-11, SUFFIX-12 (TYPE A))
IC103 (Not supplied) IC XC6216B402MR (SUFFIX-12 (TYPE B))
IC300 6-716-675-01 IC USB2512B-AEZG
IC301 8-759-338-95 IC NJM2903V (TE2)
IC500 6-712-027-01 IC R2A15216FP
IC501 8-759-909-71 IC BA4558F
IC502 8-759-909-71 IC BA4558F
IC503 8-759-909-71 IC BA4558F
IC600 8-759-909-71 IC BA4558F
IC800 6-716-554-11 IC BD9329AEFJ-E2
IC801 6-716-554-11 IC BD9329AEFJ-E2
IC802 6-716-554-11 IC BD9329AEFJ-E2
IC803 6-715-078-01 IC KIA7809AF/API
IC804 6-716-739-01 IC BD00GC0WEFJ-SE2
MAIN
Note 1: Refer to the servicing notes “MAIN BOARD DISCRIMINATION” (page 5) for how to distinguish SUFFIX-11 and SUFFIX-12.
Note 2: A part of circuit composition of MAIN board (Suffi x-12) has been changed in the midway of production. MAIN board (Suffi x-12)
that has not been changed appears as TYPE A, and the changed MAIN board (Suffi x-12) appears as TYPE B.
Note 3: IC103 (TYPE B) on the MAIN board (Suffi x-12) cannot exchange with single. When this part on the MAIN board (Suffi x-12) is
damaged, remove IC103 and C242 (Combination: TYPE B) and replace with IC102 and C239 (Combination: TYPE A).
