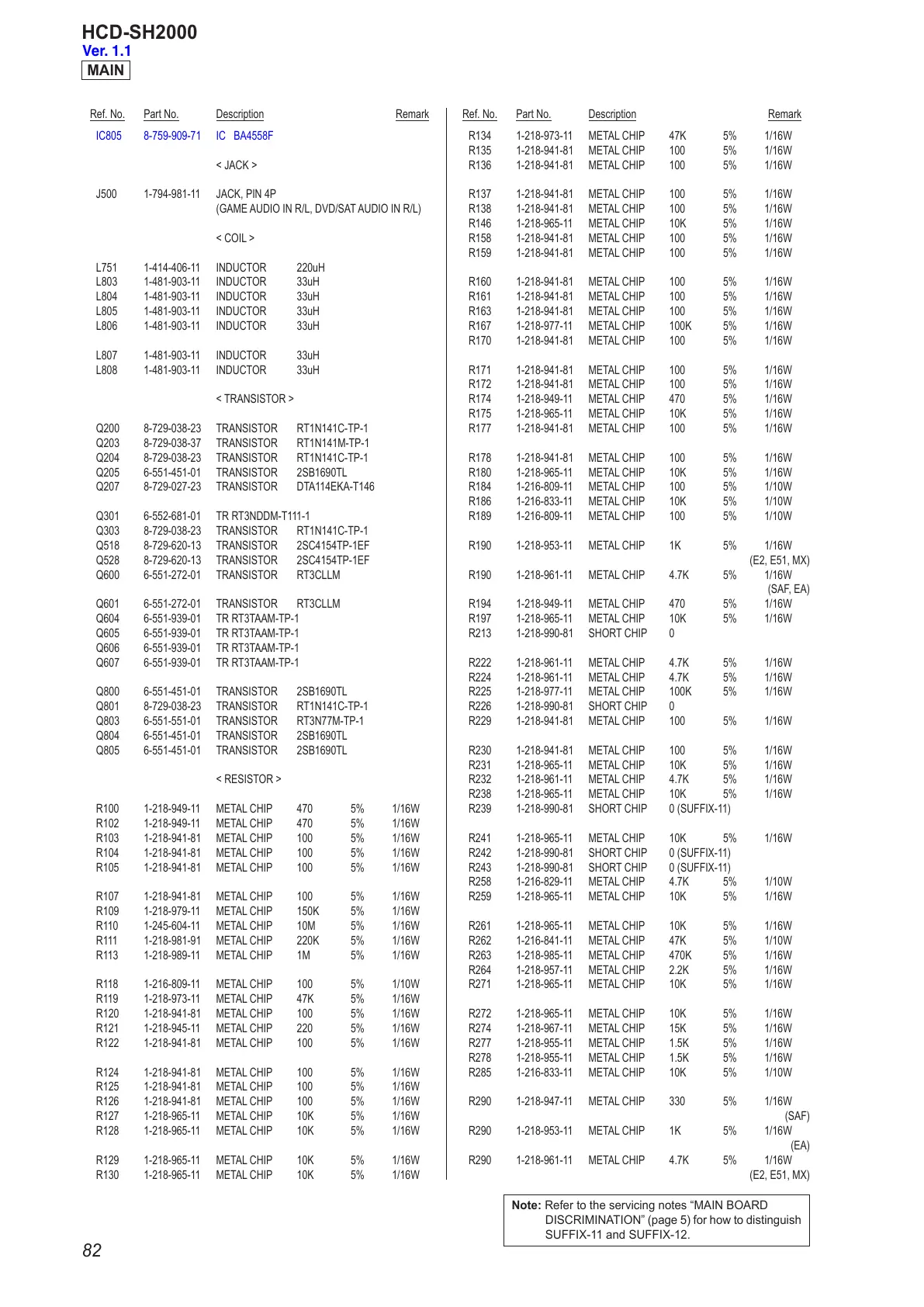

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HCD-SH2000
82
IC805 8-759-909-71 IC BA4558F
< JACK >
J500 1-794-981-11 JACK, PIN 4P
(GAME AUDIO IN R/L, DVD/SAT AUDIO IN R/L)
< COIL >
L751 1-414-406-11 INDUCTOR 220uH
L803 1-481-903-11 INDUCTOR 33uH
L804 1-481-903-11 INDUCTOR 33uH
L805 1-481-903-11 INDUCTOR 33uH
L806 1-481-903-11 INDUCTOR 33uH
L807 1-481-903-11 INDUCTOR 33uH
L808 1-481-903-11 INDUCTOR 33uH
< TRANSISTOR >
Q200 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q203 8-729-038-37 TRANSISTOR RT1N141M-TP-1
Q204 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q205 6-551-451-01 TRANSISTOR 2SB1690TL
Q207 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q301 6-552-681-01 TR RT3NDDM-T111-1
Q303 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q518 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q528 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q600 6-551-272-01 TRANSISTOR RT3CLLM
Q601 6-551-272-01 TRANSISTOR RT3CLLM
Q604 6-551-939-01 TR RT3TAAM-TP-1
Q605 6-551-939-01 TR RT3TAAM-TP-1
Q606 6-551-939-01 TR RT3TAAM-TP-1
Q607 6-551-939-01 TR RT3TAAM-TP-1
Q800 6-551-451-01 TRANSISTOR 2SB1690TL
Q801 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q803 6-551-551-01 TRANSISTOR RT3N77M-TP-1
Q804 6-551-451-01 TRANSISTOR 2SB1690TL
Q805 6-551-451-01 TRANSISTOR 2SB1690TL
< RESISTOR >
R100 1-218-949-11 METAL CHIP 470 5% 1/16W
R102 1-218-949-11 METAL CHIP 470 5% 1/16W
R103 1-218-941-81 METAL CHIP 100 5% 1/16W
R104 1-218-941-81 METAL CHIP 100 5% 1/16W
R105 1-218-941-81 METAL CHIP 100 5% 1/16W
R107 1-218-941-81 METAL CHIP 100 5% 1/16W
R109 1-218-979-11 METAL CHIP 150K 5% 1/16W
R110 1-245-604-11 METAL CHIP 10M 5% 1/16W
R111 1-218-981-91 METAL CHIP 220K 5% 1/16W
R113 1-218-989-11 METAL CHIP 1M 5% 1/16W
R118 1-216-809-11 METAL CHIP 100 5% 1/10W
R119 1-218-973-11 METAL CHIP 47K 5% 1/16W
R120 1-218-941-81 METAL CHIP 100 5% 1/16W
R121 1-218-945-11 METAL CHIP 220 5% 1/16W
R122 1-218-941-81 METAL CHIP 100 5% 1/16W
R124 1-218-941-81 METAL CHIP 100 5% 1/16W
R125 1-218-941-81 METAL CHIP 100 5% 1/16W
R126 1-218-941-81 METAL CHIP 100 5% 1/16W
R127 1-218-965-11 METAL CHIP 10K 5% 1/16W
R128 1-218-965-11 METAL CHIP 10K 5% 1/16W
R129 1-218-965-11 METAL CHIP 10K 5% 1/16W
R130 1-218-965-11 METAL CHIP 10K 5% 1/16W
R134 1-218-973-11 METAL CHIP 47K 5% 1/16W
R135 1-218-941-81 METAL CHIP 100 5% 1/16W
R136 1-218-941-81 METAL CHIP 100 5% 1/16W
R137 1-218-941-81 METAL CHIP 100 5% 1/16W
R138 1-218-941-81 METAL CHIP 100 5% 1/16W
R146 1-218-965-11 METAL CHIP 10K 5% 1/16W
R158 1-218-941-81 METAL CHIP 100 5% 1/16W
R159 1-218-941-81 METAL CHIP 100 5% 1/16W
R160 1-218-941-81 METAL CHIP 100 5% 1/16W
R161 1-218-941-81 METAL CHIP 100 5% 1/16W
R163 1-218-941-81 METAL CHIP 100 5% 1/16W
R167 1-218-977-11 METAL CHIP 100K 5% 1/16W
R170 1-218-941-81 METAL CHIP 100 5% 1/16W
R171 1-218-941-81 METAL CHIP 100 5% 1/16W
R172 1-218-941-81 METAL CHIP 100 5% 1/16W
R174 1-218-949-11 METAL CHIP 470 5% 1/16W
R175 1-218-965-11 METAL CHIP 10K 5% 1/16W
R177 1-218-941-81 METAL CHIP 100 5% 1/16W
R178 1-218-941-81 METAL CHIP 100 5% 1/16W
R180 1-218-965-11 METAL CHIP 10K 5% 1/16W
R184 1-216-809-11 METAL CHIP 100 5% 1/10W
R186 1-216-833-11 METAL CHIP 10K 5% 1/10W
R189 1-216-809-11 METAL CHIP 100 5% 1/10W
R190 1-218-953-11 METAL CHIP 1K 5% 1/16W
(E2, E51, MX)
R190 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
(SAF, EA)
R194 1-218-949-11 METAL CHIP 470 5% 1/16W
R197 1-218-965-11 METAL CHIP 10K 5% 1/16W
R213 1-218-990-81 SHORT CHIP 0
R222 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R224 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R225 1-218-977-11 METAL CHIP 100K 5% 1/16W
R226 1-218-990-81 SHORT CHIP 0
R229 1-218-941-81 METAL CHIP 100 5% 1/16W
R230 1-218-941-81 METAL CHIP 100 5% 1/16W
R231 1-218-965-11 METAL CHIP 10K 5% 1/16W
R232 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R238 1-218-965-11 METAL CHIP 10K 5% 1/16W
R239 1-218-990-81 SHORT CHIP 0 (SUFFIX-11)
R241 1-218-965-11 METAL CHIP 10K 5% 1/16W
R242 1-218-990-81 SHORT CHIP 0 (SUFFIX-11)
R243 1-218-990-81 SHORT CHIP 0 (SUFFIX-11)
R258 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R259 1-218-965-11 METAL CHIP 10K 5% 1/16W
R261 1-218-965-11 METAL CHIP 10K 5% 1/16W
R262 1-216-841-11 METAL CHIP 47K 5% 1/10W
R263 1-218-985-11 METAL CHIP 470K 5% 1/16W
R264 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R271 1-218-965-11 METAL CHIP 10K 5% 1/16W
R272 1-218-965-11 METAL CHIP 10K 5% 1/16W
R274 1-218-967-11 METAL CHIP 15K 5% 1/16W
R277 1-218-955-11 METAL CHIP 1.5K 5% 1/16W
R278 1-218-955-11 METAL CHIP 1.5K 5% 1/16W
R285 1-216-833-11 METAL CHIP 10K 5% 1/10W
R290 1-218-947-11 METAL CHIP 330 5% 1/16W
(SAF)
R290 1-218-953-11 METAL CHIP 1K 5% 1/16W
(EA)
R290 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
(E2, E51, MX)
MAIN
Note: Refer to the servicing notes “MAIN BOARD
DISCRIMINATION” (page 5) for how to distinguish
SUFFIX-11 and SUFFIX-12.
Ver. 1.1
