Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

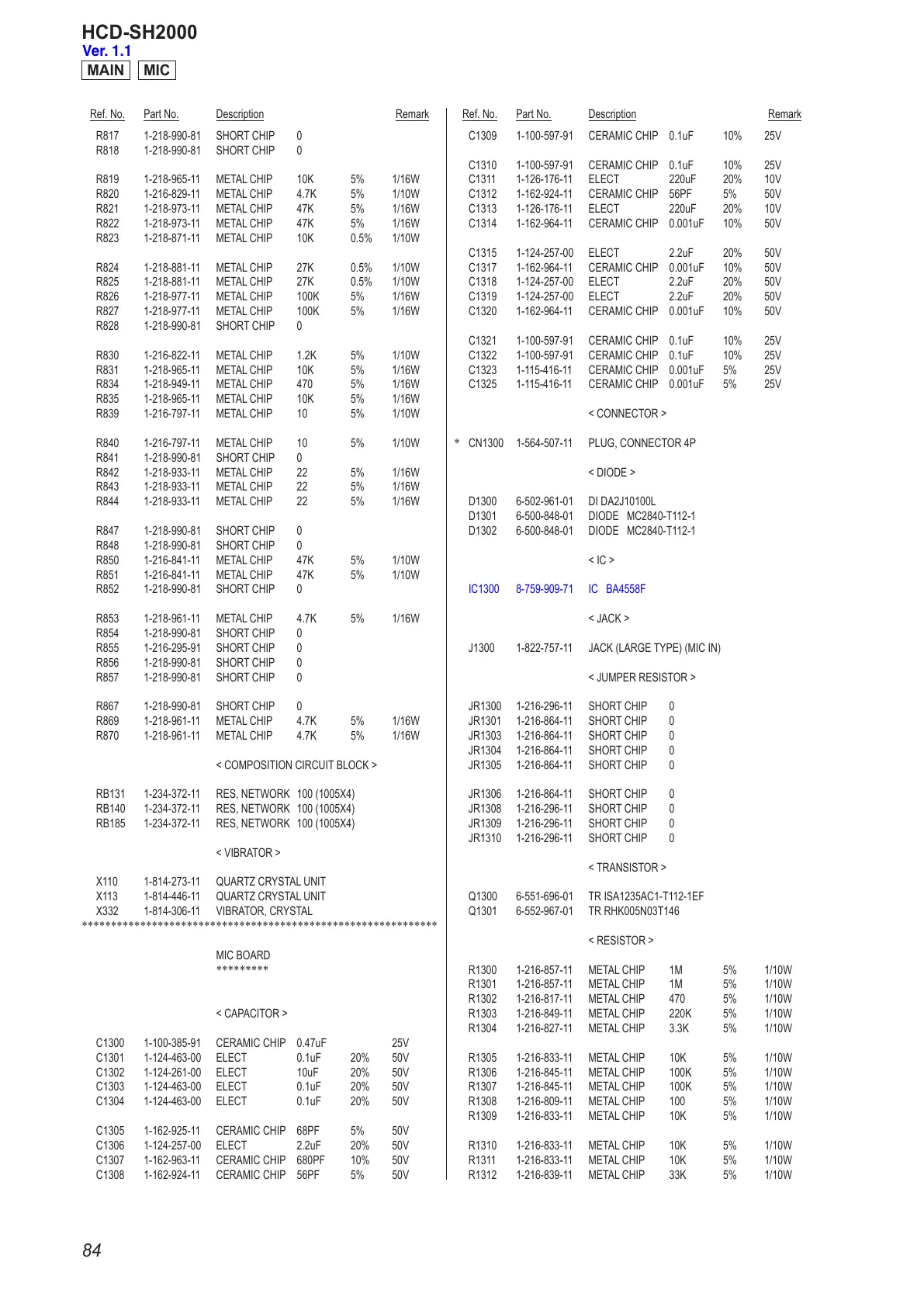

HCD-SH2000
84
R817 1-218-990-81 SHORT CHIP 0
R818 1-218-990-81 SHORT CHIP 0
R819 1-218-965-11 METAL CHIP 10K 5% 1/16W
R820 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R821 1-218-973-11 METAL CHIP 47K 5% 1/16W
R822 1-218-973-11 METAL CHIP 47K 5% 1/16W
R823 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R824 1-218-881-11 METAL CHIP 27K 0.5% 1/10W
R825 1-218-881-11 METAL CHIP 27K 0.5% 1/10W
R826 1-218-977-11 METAL CHIP 100K 5% 1/16W
R827 1-218-977-11 METAL CHIP 100K 5% 1/16W
R828 1-218-990-81 SHORT CHIP 0
R830 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R831 1-218-965-11 METAL CHIP 10K 5% 1/16W
R834 1-218-949-11 METAL CHIP 470 5% 1/16W
R835 1-218-965-11 METAL CHIP 10K 5% 1/16W
R839 1-216-797-11 METAL CHIP 10 5% 1/10W
R840 1-216-797-11 METAL CHIP 10 5% 1/10W
R841 1-218-990-81 SHORT CHIP 0
R842 1-218-933-11 METAL CHIP 22 5% 1/16W
R843 1-218-933-11 METAL CHIP 22 5% 1/16W
R844 1-218-933-11 METAL CHIP 22 5% 1/16W
R847 1-218-990-81 SHORT CHIP 0
R848 1-218-990-81 SHORT CHIP 0
R850 1-216-841-11 METAL CHIP 47K 5% 1/10W
R851 1-216-841-11 METAL CHIP 47K 5% 1/10W
R852 1-218-990-81 SHORT CHIP 0
R853 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R854 1-218-990-81 SHORT CHIP 0
R855 1-216-295-91 SHORT CHIP 0
R856 1-218-990-81 SHORT CHIP 0
R857 1-218-990-81 SHORT CHIP 0
R867 1-218-990-81 SHORT CHIP 0
R869 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R870 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB131 1-234-372-11 RES, NETWORK 100 (1005X4)
RB140 1-234-372-11 RES, NETWORK 100 (1005X4)
RB185 1-234-372-11 RES, NETWORK 100 (1005X4)
< VIBRATOR >
X110 1-814-273-11 QUARTZ CRYSTAL UNIT
X113 1-814-446-11 QUARTZ CRYSTAL UNIT
X332 1-814-306-11 VIBRATOR, CRYSTAL
*************************************************************
MIC BOARD
*********
< CAPACITOR >
C1300 1-100-385-91 CERAMIC CHIP 0.47uF 25V
C1301 1-124-463-00 ELECT 0.1uF 20% 50V
C1302 1-124-261-00 ELECT 10uF 20% 50V
C1303 1-124-463-00 ELECT 0.1uF 20% 50V
C1304 1-124-463-00 ELECT 0.1uF 20% 50V
C1305 1-162-925-11 CERAMIC CHIP 68PF 5% 50V
C1306 1-124-257-00 ELECT 2.2uF 20% 50V
C1307 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C1308 1-162-924-11 CERAMIC CHIP 56PF 5% 50V
C1309 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C1310 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C1311 1-126-176-11 ELECT 220uF 20% 10V
C1312 1-162-924-11 CERAMIC CHIP 56PF 5% 50V
C1313 1-126-176-11 ELECT 220uF 20% 10V
C1314 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1315 1-124-257-00 ELECT 2.2uF 20% 50V
C1317 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1318 1-124-257-00 ELECT 2.2uF 20% 50V
C1319 1-124-257-00 ELECT 2.2uF 20% 50V
C1320 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1321 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C1322 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C1323 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C1325 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
< CONNECTOR >
* CN1300 1-564-507-11 PLUG, CONNECTOR 4P
< DIODE >
D1300 6-502-961-01 DI DA2J10100L
D1301 6-500-848-01 DIODE MC2840-T112-1
D1302 6-500-848-01 DIODE MC2840-T112-1
< IC >
IC1300 8-759-909-71 IC BA4558F
< JACK >
J1300 1-822-757-11 JACK (LARGE TYPE) (MIC IN)
< JUMPER RESISTOR >
JR1300 1-216-296-11 SHORT CHIP 0
JR1301 1-216-864-11 SHORT CHIP 0
JR1303 1-216-864-11 SHORT CHIP 0
JR1304 1-216-864-11 SHORT CHIP 0
JR1305 1-216-864-11 SHORT CHIP 0
JR1306 1-216-864-11 SHORT CHIP 0
JR1308 1-216-296-11 SHORT CHIP 0
JR1309 1-216-296-11 SHORT CHIP 0
JR1310 1-216-296-11 SHORT CHIP 0
< TRANSISTOR >
Q1300 6-551-696-01 TR ISA1235AC1-T112-1EF
Q1301 6-552-967-01 TR RHK005N03T146
< RESISTOR >
R1300 1-216-857-11 METAL CHIP 1M 5% 1/10W
R1301 1-216-857-11 METAL CHIP 1M 5% 1/10W
R1302 1-216-817-11 METAL CHIP 470 5% 1/10W
R1303 1-216-849-11 METAL CHIP 220K 5% 1/10W
R1304 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1305 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1306 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1307 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1308 1-216-809-11 METAL CHIP 100 5% 1/10W
R1309 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1310 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1311 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1312 1-216-839-11 METAL CHIP 33K 5% 1/10W
MIC
MAIN
Ver. 1.1
