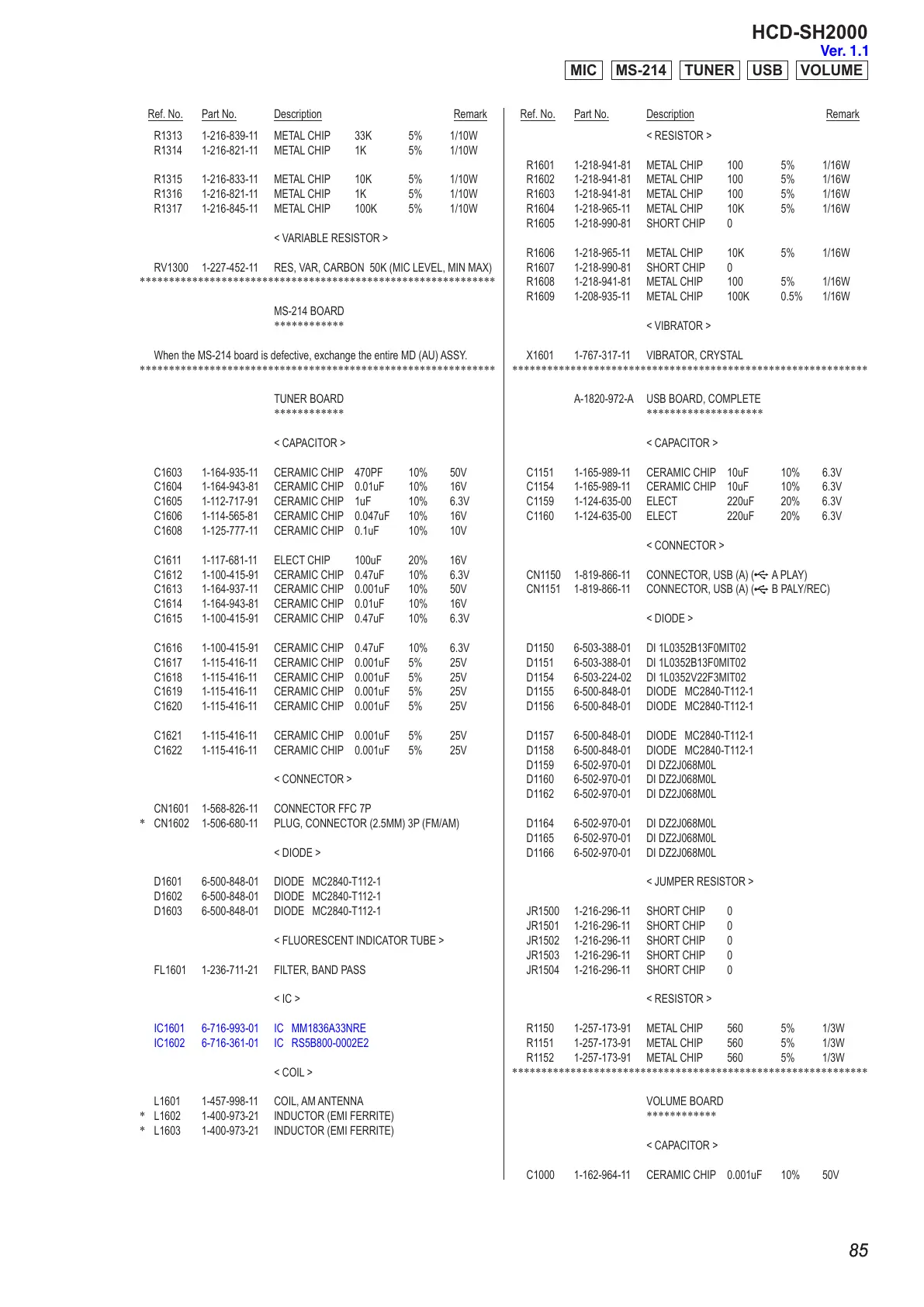

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HCD-SH2000
8585
R1313 1-216-839-11 METAL CHIP 33K 5% 1/10W
R1314 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1315 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1316 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1317 1-216-845-11 METAL CHIP 100K 5% 1/10W
< VARIABLE RESISTOR >
RV1300 1-227-452-11 RES, VAR, CARBON 50K (MIC LEVEL, MIN MAX)
*************************************************************
MS-214 BOARD
************
When the MS-214 board is defective, exchange the entire MD (AU) ASSY.
*************************************************************
TUNER BOARD
************
< CAPACITOR >
C1603 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
C1604 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C1605 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C1606 1-114-565-81 CERAMIC CHIP 0.047uF 10% 16V
C1608 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1611 1-117-681-11 ELECT CHIP 100uF 20% 16V
C1612 1-100-415-91 CERAMIC CHIP 0.47uF 10% 6.3V
C1613 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1614 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C1615 1-100-415-91 CERAMIC CHIP 0.47uF 10% 6.3V
C1616 1-100-415-91 CERAMIC CHIP 0.47uF 10% 6.3V
C1617 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C1618 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C1619 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C1620 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C1621 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C1622 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
< CONNECTOR >
CN1601 1-568-826-11 CONNECTOR FFC 7P
* CN1602 1-506-680-11 PLUG, CONNECTOR (2.5MM) 3P (FM/AM)
< DIODE >
D1601 6-500-848-01 DIODE MC2840-T112-1
D1602 6-500-848-01 DIODE MC2840-T112-1
D1603 6-500-848-01 DIODE MC2840-T112-1
< FLUORESCENT INDICATOR TUBE >
FL1601 1-236-711-21 FILTER, BAND PASS
< IC >
IC1601 6-716-993-01 IC MM1836A33NRE
IC1602 6-716-361-01 IC RS5B800-0002E2
< COIL >
L1601 1-457-998-11 COIL, AM ANTENNA
* L1602 1-400-973-21 INDUCTOR (EMI FERRITE)
* L1603 1-400-973-21 INDUCTOR (EMI FERRITE)
< RESISTOR >
R1601 1-218-941-81 METAL CHIP 100 5% 1/16W
R1602 1-218-941-81 METAL CHIP 100 5% 1/16W
R1603 1-218-941-81 METAL CHIP 100 5% 1/16W
R1604 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1605 1-218-990-81 SHORT CHIP 0
R1606 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1607 1-218-990-81 SHORT CHIP 0
R1608 1-218-941-81 METAL CHIP 100 5% 1/16W
R1609 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
< VIBRATOR >
X1601 1-767-317-11 VIBRATOR, CRYSTAL
*************************************************************
A-1820-972-A USB BOARD, COMPLETE
********************
< CAPACITOR >
C1151 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C1154 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C1159 1-124-635-00 ELECT 220uF 20% 6.3V
C1160 1-124-635-00 ELECT 220uF 20% 6.3V
< CONNECTOR >
CN1150 1-819-866-11 CONNECTOR, USB (A) (
A PLAY)
CN1151 1-819-866-11 CONNECTOR, USB (A) (
B PALY/REC)
< DIODE >
D1150 6-503-388-01 DI 1L0352B13F0MIT02
D1151 6-503-388-01 DI 1L0352B13F0MIT02
D1154 6-503-224-02 DI 1L0352V22F3MIT02
D1155 6-500-848-01 DIODE MC2840-T112-1
D1156 6-500-848-01 DIODE MC2840-T112-1
D1157 6-500-848-01 DIODE MC2840-T112-1
D1158 6-500-848-01 DIODE MC2840-T112-1
D1159 6-502-970-01 DI DZ2J068M0L
D1160 6-502-970-01 DI DZ2J068M0L
D1162 6-502-970-01 DI DZ2J068M0L
D1164 6-502-970-01 DI DZ2J068M0L
D1165 6-502-970-01 DI DZ2J068M0L
D1166 6-502-970-01 DI DZ2J068M0L
< JUMPER RESISTOR >
JR1500 1-216-296-11 SHORT CHIP 0
JR1501 1-216-296-11 SHORT CHIP 0
JR1502 1-216-296-11 SHORT CHIP 0
JR1503 1-216-296-11 SHORT CHIP 0
JR1504 1-216-296-11 SHORT CHIP 0
< RESISTOR >
R1150 1-257-173-91 METAL CHIP 560 5% 1/3W
R1151 1-257-173-91 METAL CHIP 560 5% 1/3W
R1152 1-257-173-91 METAL CHIP 560 5% 1/3W
*************************************************************
VOLUME BOARD
************
< CAPACITOR >
C1000 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
TUNER USB VOLUME
MS-214
MIC
Ver. 1.1
