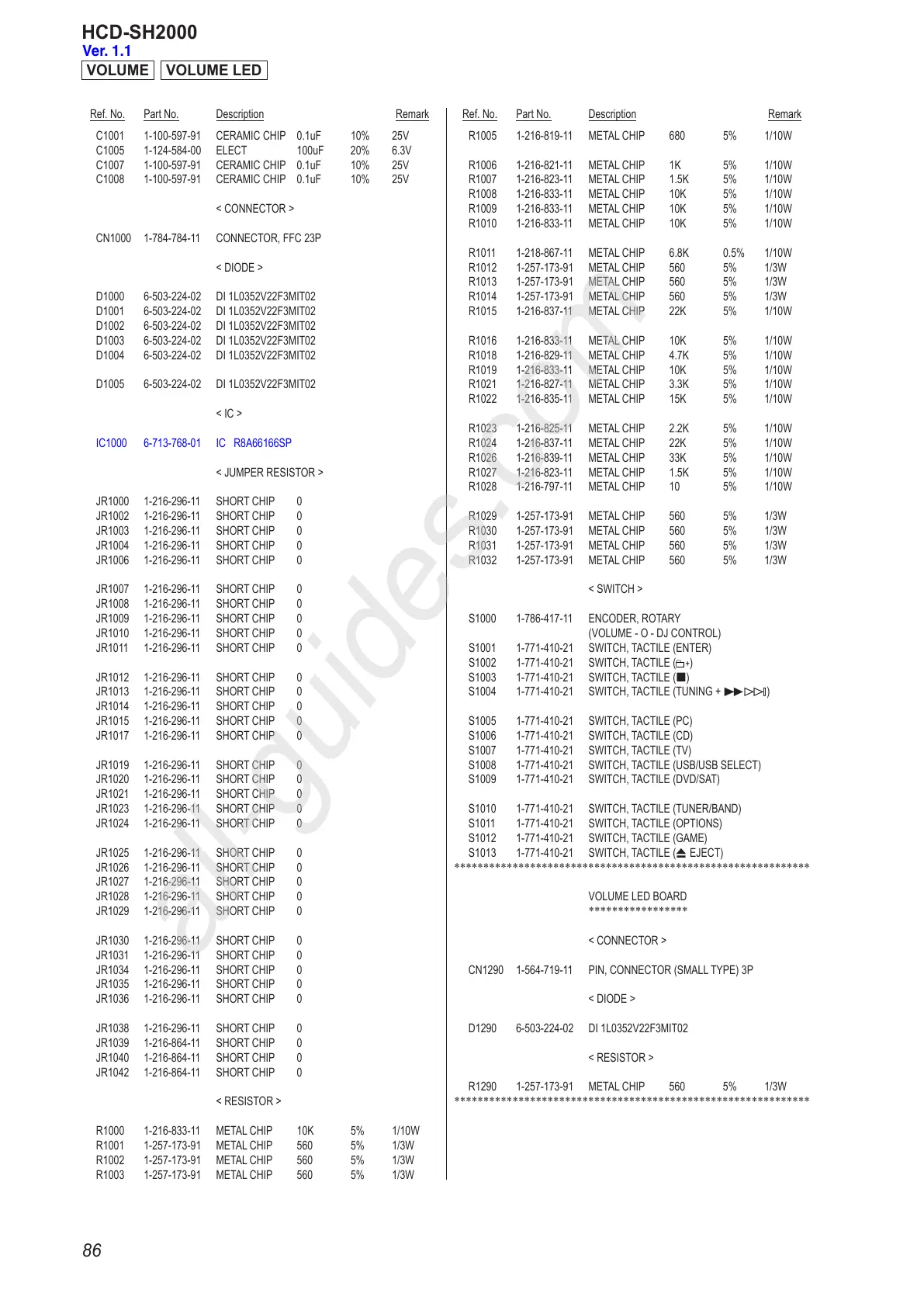

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HCD-SH2000
86
C1001 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C1005 1-124-584-00 ELECT 100uF 20% 6.3V
C1007 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C1008 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
< CONNECTOR >
CN1000 1-784-784-11 CONNECTOR, FFC 23P
< DIODE >
D1000 6-503-224-02 DI 1L0352V22F3MIT02
D1001 6-503-224-02 DI 1L0352V22F3MIT02
D1002 6-503-224-02 DI 1L0352V22F3MIT02
D1003 6-503-224-02 DI 1L0352V22F3MIT02
D1004 6-503-224-02 DI 1L0352V22F3MIT02
D1005 6-503-224-02 DI 1L0352V22F3MIT02
< IC >
IC1000 6-713-768-01 IC R8A66166SP
< JUMPER RESISTOR >
JR1000
1-216-296-11 SHORT CHIP 0
JR1002 1-216-296-11 SHORT CHIP 0
JR1003 1-216-296-11 SHORT CHIP 0
JR1004 1-216-296-11 SHORT CHIP 0
JR1006 1-216-296-11 SHORT CHIP 0
JR1007 1-216-296-11 SHORT CHIP 0
JR1008 1-216-296-11 SHORT CHIP 0
JR1009 1-216-296-11 SHORT CHIP 0
JR1010 1-216-296-11 SHORT CHIP 0
JR1011 1-216-296-11 SHORT CHIP 0
JR1012 1-216-296-11 SHORT CHIP 0
JR1013 1-216-296-11 SHORT CHIP 0
JR1014 1-216-296-11 SHORT CHIP 0
JR1015 1-216-296-11 SHORT CHIP 0
JR1017 1-216-296-11 SHORT CHIP 0
JR1019 1-216-296-11 SHORT CHIP 0
JR1020 1-216-296-11 SHORT CHIP 0
JR1021 1-216-296-11 SHORT CHIP 0
JR1023 1-216-296-11 SHORT CHIP 0
JR1024 1-216-296-11 SHORT CHIP 0
JR1025 1-216-296-11 SHORT CHIP 0
JR1026 1-216-296-11 SHORT CHIP 0
JR1027 1-216-296-11 SHORT CHIP 0
JR1028 1-216-296-11 SHORT CHIP 0
JR1029 1-216-296-11 SHORT CHIP 0
JR1030 1-216-296-11 SHORT CHIP 0
JR1031 1-216-296-11 SHORT CHIP 0
JR1034 1-216-296-11 SHORT CHIP 0
JR1035 1-216-296-11 SHORT CHIP 0
JR1036 1-216-296-11 SHORT CHIP 0
JR1038 1-216-296-11 SHORT CHIP 0
JR1039 1-216-864-11 SHORT CHIP 0
JR1040 1-216-864-11 SHORT CHIP 0
JR1042 1-216-864-11 SHORT CHIP 0
< RESISTOR >
R1000 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1001 1-257-173-91 METAL CHIP 560 5% 1/3W
R1002 1-257-173-91 METAL CHIP 560 5% 1/3W
R1003 1-257-173-91 METAL CHIP 560 5% 1/3W
R1005 1-216-819-11 METAL CHIP 680 5% 1/10W
R1006 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1007 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R1008 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1009 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1010 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1011 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1012 1-257-173-91 METAL CHIP 560 5% 1/3W
R1013 1-257-173-91 METAL CHIP 560 5% 1/3W
R1014 1-257-173-91 METAL CHIP 560 5% 1/3W
R1015 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1016 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1018 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1019 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1021 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1022 1-216-835-11 METAL CHIP 15K 5% 1/10W
R1023 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1024 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1026 1-216-839-11 METAL CHIP 33K 5% 1/10W
R1027 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R1028 1-216-797-11 METAL CHIP 10 5% 1/10W
R1029 1-257-173-91 METAL CHIP 560 5% 1/3W
R1030 1-257-173-91 METAL CHIP 560 5% 1/3W
R1031 1-257-173-91 METAL CHIP 560 5% 1/3W
R1032 1-257-173-91 METAL CHIP 560 5% 1/3W
< SWITCH >
S1000 1-786-417-11 ENCODER, ROTARY
(VOLUME - O - DJ CONTROL)
S1001 1-771-410-21 SWITCH, TACTILE (ENTER)
S1002 1-771-410-21 SWITCH, TACTILE (
+
)
S1003 1-771-410-21 SWITCH, TACTILE (
x
)
S1004 1-771-410-21 SWITCH, TACTILE (TUNING +
ML
)
S1005 1-771-410-21 SWITCH, TACTILE (PC)
S1006 1-771-410-21 SWITCH, TACTILE (CD)
S1007 1-771-410-21 SWITCH, TACTILE (TV)
S1008 1-771-410-21 SWITCH, TACTILE (USB/USB SELECT)
S1009 1-771-410-21 SWITCH, TACTILE (DVD/SAT)
S1010 1-771-410-21 SWITCH, TACTILE (TUNER/BAND)
S1011 1-771-410-21 SWITCH, TACTILE (OPTIONS)
S1012 1-771-410-21 SWITCH, TACTILE (GAME)
S1013 1-771-410-21 SWITCH, TACTILE (
Z
EJECT)
*************************************************************
VOLUME LED BOARD
*****************
< CONNECTOR >
CN1290 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P
< DIODE >
D1290 6-503-224-02 DI 1L0352V22F3MIT02
< RESISTOR >
R1290 1-257-173-91 METAL CHIP 560 5% 1/3W
*************************************************************
VOLUME VOLUME LED
Ver. 1.1
