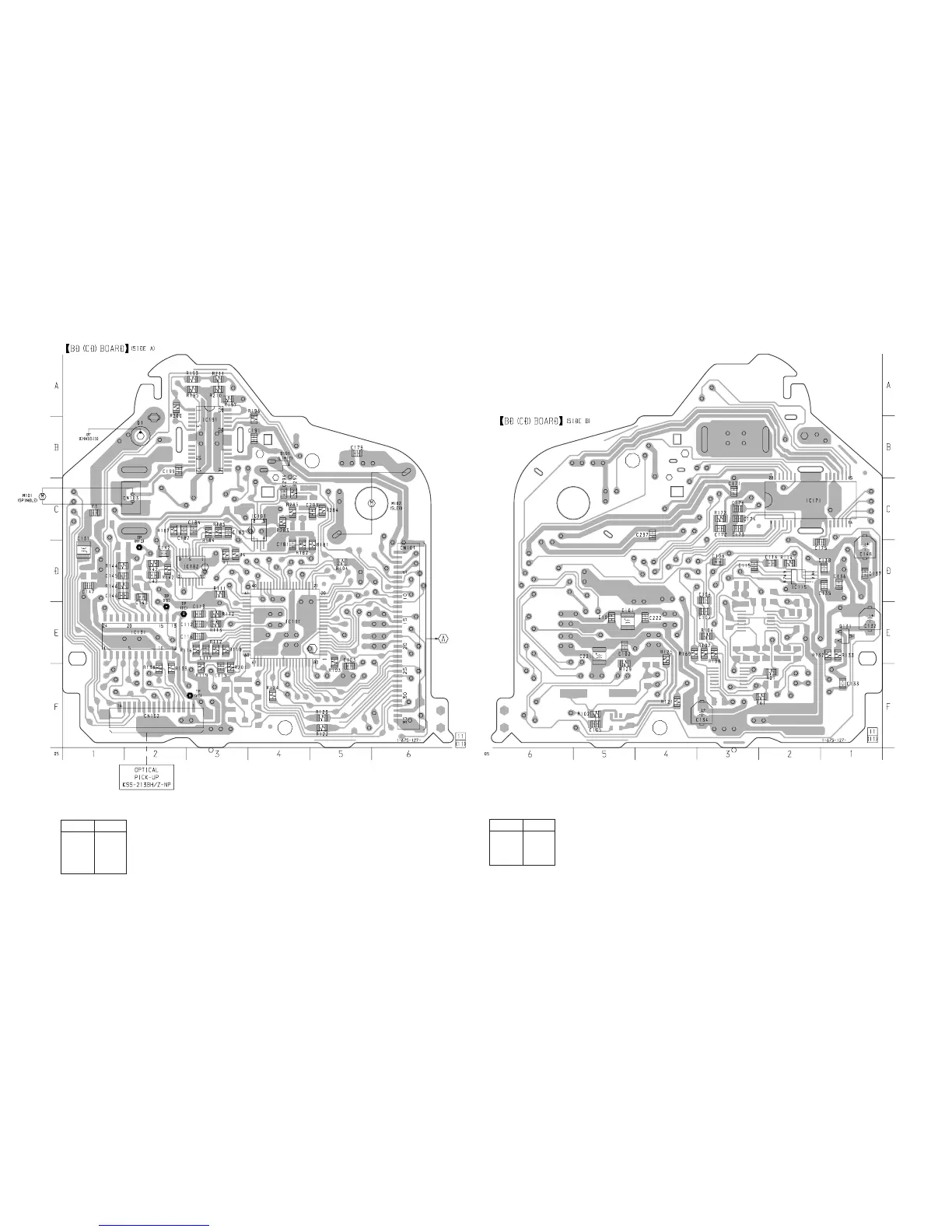

6-2. PRINTED WIRING BOARD – BD (CD) Board – • See page 41 for Circuit Boards Location.
• Semiconductor
Location (Side A)
Ref. No. Location
IC101 E-4
IC131 E-2
IC181 C-4
IC182 D-3
IC191 B-3
• Semiconductor
Location (Side B)
Ref. No. Location
IC115 D-2
IC171 C-2
Q131 E-1
(Page
50)
