Sony MXD-D3 - Printed Wiring Board - MAIN Board (Side A)

5050
MXD-D3

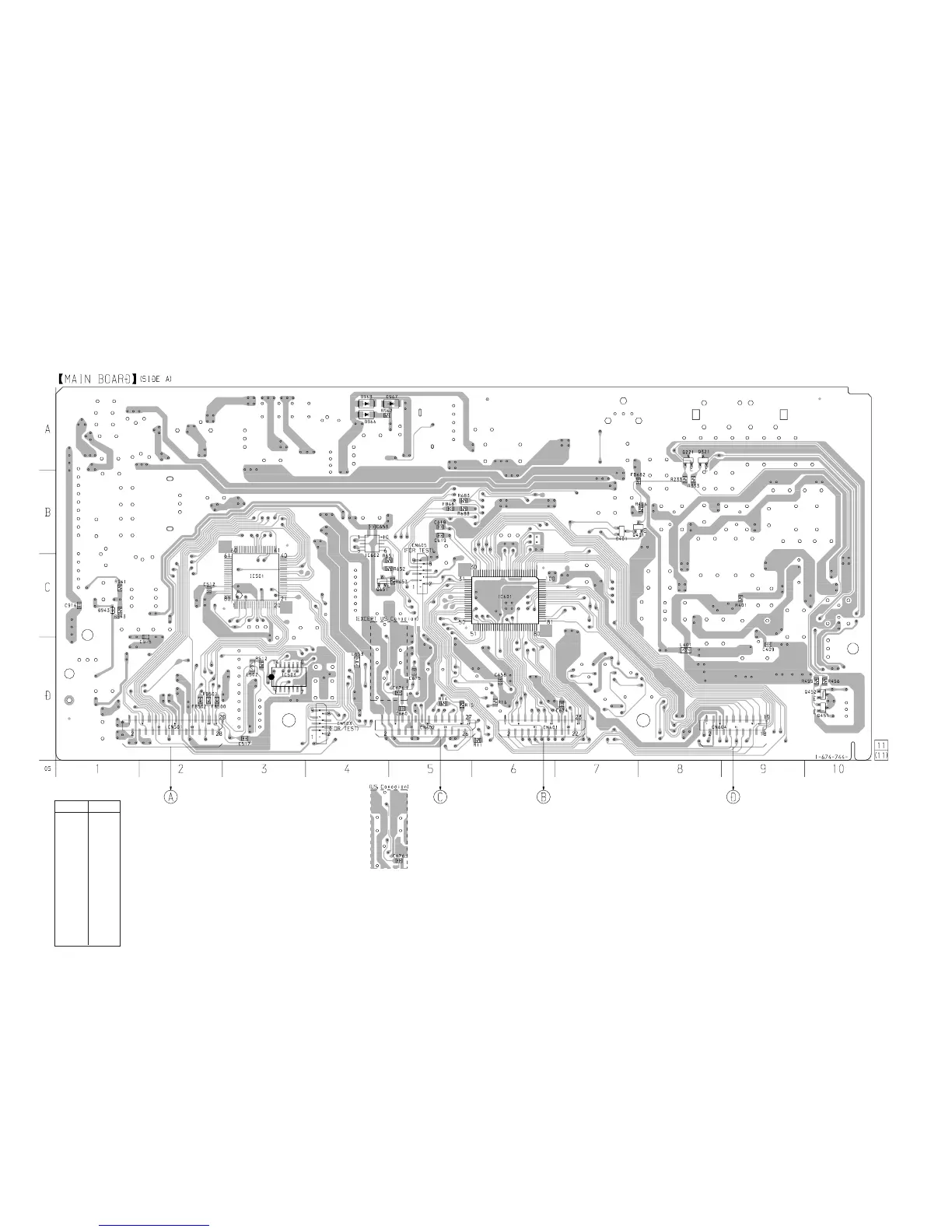

6-10. PRINTED WIRING BOARD – MAIN Board (Side A) – • See page 41 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D401 B-7
D943 C-1
D966 A-4
D967 A-5
D968 A-4
IC501 C-3
IC503 D-3
IC601 C-6
IC602 B-4
Q221 A-8
Q321 A-8
Q401 B-7
Q451 D-10
Q452 D-10
Q651 C-4
(Page 42) (Page 46)
(Page 46)
(Page 52)
