MXD-D3

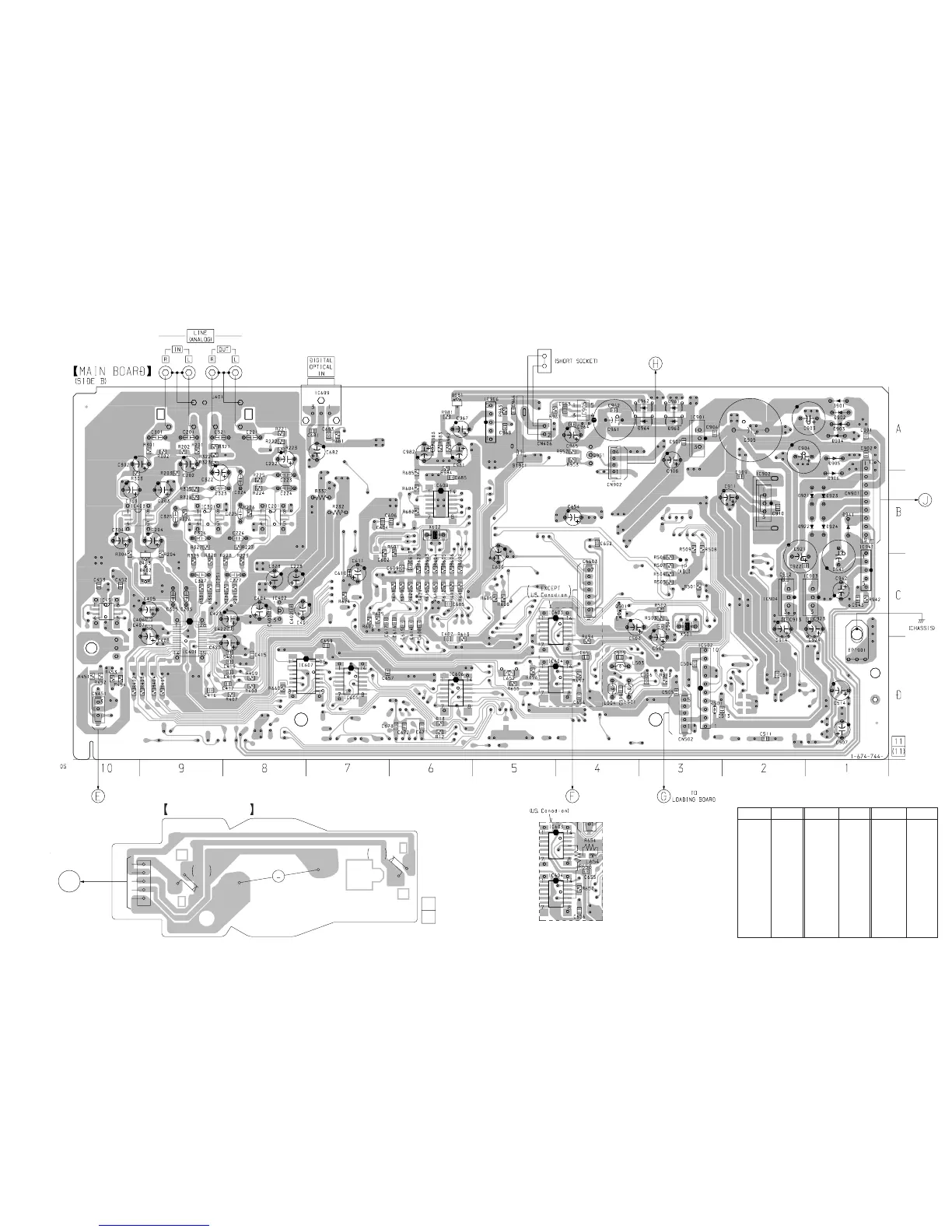

6-11. PRINTED WIRING BOARDS – MAIN (Side B) / LOADING Boards – • See page 41 for Circuit Boards Location.
Ref. No. Location
Ref. No. Location
D402 C-9
D403 C-9
D501 D-3
D901 A-1
D902 A-1
D903 A-1
D904 A-1
D905 A-1
D906 B-1
D921 B-1
D922 B-1
D923 B-1
D924 B-1
D941 B-1
D961 A-3
• Semiconductor Location
Ref. No. Location
D962 A-3
D963 A-3
D964 A-3
D981 A-6
D983 A-6
IC201 B-8
IC301 B-9
IC401 C-9
IC402 C-8
IC403 B-10
IC451 C-10
IC502 D-3
IC603 C-4
IC604 D-4
IC605 D-7
IC606 D-6
IC607 D-7
IC608 B-6
IC609 A-7
IC901 A-3
IC902 B-2
IC903 C-1
IC904 C-2
IC905 A-4
IC906 A-5
IC941 C-1
Q501 C-4
Q951 A-4
(Page 52)
(Page 55)
(Page 54)
(Page 54)
TO
MAIN BOARD
12
(21)
S152
LOAD
IN
S151
LOAD
OUT
CN151
1
5
M103
( LOADING )
M
LOADING BOARD
1-645-721-
G
