Sony MXD-D3 - Schematic Diagram - MAIN (1;3);LOADING Boards

4747
MXD-D3

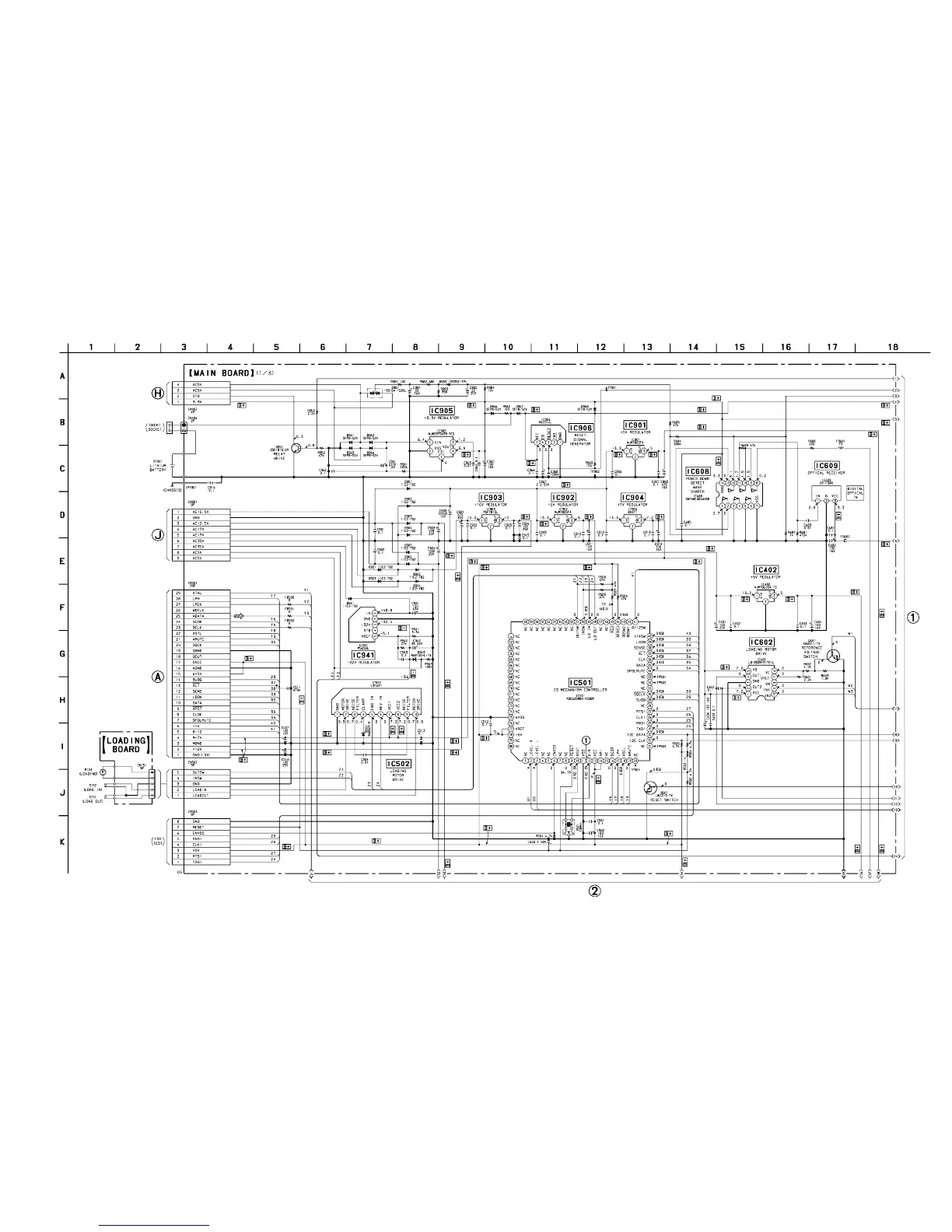

6-7. SCHEMATIC DIAGRAM – MAIN (1/3) / LOADING Boards – • See page 56 for Waveform. • See page 62 for IC Block Diagrams.
Note on Schematic Diagram:
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : MD PLAY
〈〈 〉〉 : CD PLAY
∗
: Impossible to measure
(Page 55)
(Page 55)
(Page 43)
(Page 49)
(Page 48)
