Sony MXD-D3 - Page 74

74

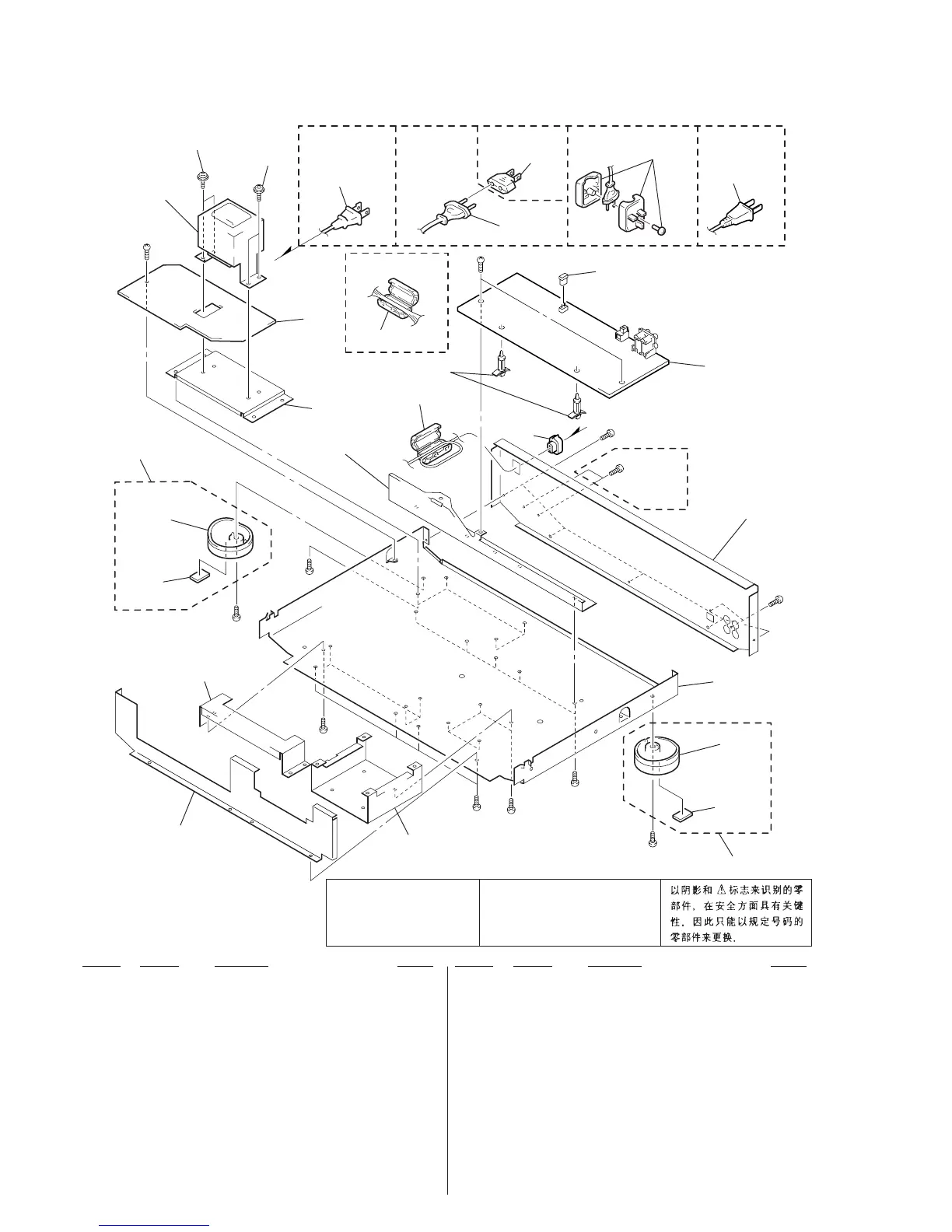

(3) CHASSIS SECTION
#2
109
103
102
101
#1
#1
#1
#1
#1
#1
#1
not
supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
not supplied
102
103
101
104
105
105
110
110
110
111
106
107
108
111
#1
TR102
US, Canadian
US, Canadian
AEP, UK,
Singapore
UK ChineseSingapore
Singapore
#1
#2
#2
112
113
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 X-4947-389-1 FOOT ASSY (F50150S) (BLACK)
102 4-983-762-02 CUSHION
103 4-983-761-21 FOOT (F50150S) (GOLD)
104 1-674-745-11 TRANS BOARD
105 3-703-249-01 SCREW, S TIGHT, +PTTWH 3X6
106 1-569-972-21 SOCKET, SHORT 2P
107 A-4724-860-A MAIN BOARD, COMPLETE
(EXCEPT US, Canadian)
107 A-4725-028-A MAIN BOARD, COMPLETE (US, Candian)
108 3-703-244-00 BUSHING (2104), CORD
109 4-220-708-01 PANEL, BACK (AEP, UK)
109 4-220-708-11 PANEL, BACK (Canadian)
109 4-220-708-52 PANEL, BACK (Chinese)
109 4-220-708-31 PANEL, BACK (Singapore)
109 4-220-708-41 PANEL, BACK (US)
0 110 1-751-275-11 CORD, POWER (AEP, UK, Singapore)
0 110 1-783-531-41 CORD, POWER (US, Canadian)
0 110 1-782-464-31 CORD, POWER (Chinese)
0 111 1-569-008-21 ADAPTOR, CONVERSION 2P (Singapore)
0 111 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)
112 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
113 1-543-798-11 FILTER, CLAMP (FERRITE CORE)
(US, Canadian)
0 TR102 1-435-083-11 TRANSFORMER, POWER (AEP, UK, Chinese)
0 TR102 1-435-084-11 TRANSFORMER, POWER (US, Canadian)
0 TR102 1-435-085-11 TRANSFORMER, POWER (Singapore)
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
