PMC-D307L

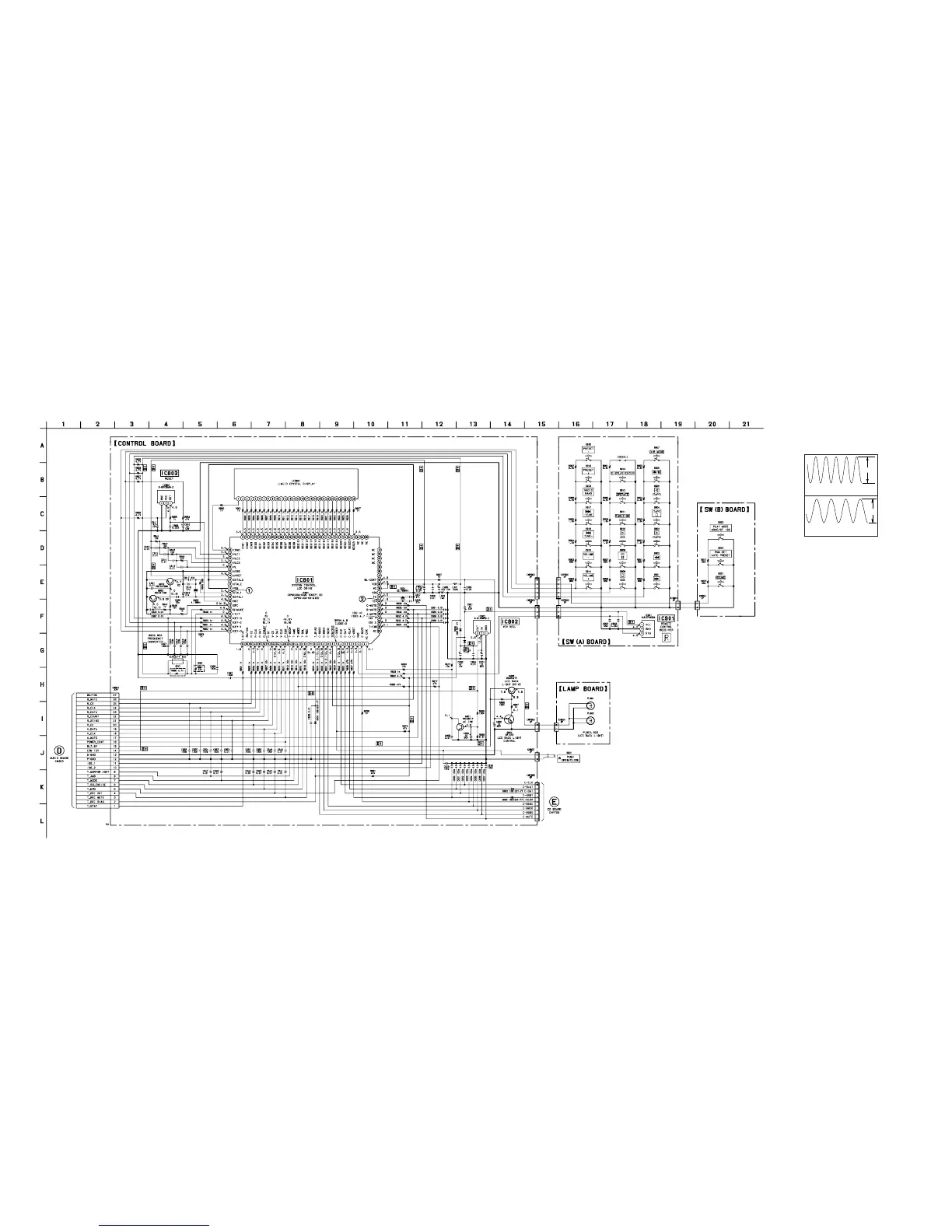

6-13. SCHEMATIC DIAGRAM — CONTROL SECTION —
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
• C : panel designation.
• U : B+ Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : PB
<< >> : REC
[ ] : CD
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Abbreviation
EE : East European model.
• Waveforms
1
2
IC801
$º
(XTAL1)
IC801
(£
(TEX)
4.9Vp-p
4.19MHz
3Vp-p
32.768kHz
To Next Page
