– 58 –
SECTION 7
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the e xploded vie ws are not supplied.
• Items mar ked “*” are not stoc ked since
the y are seldom required f or routine ser vice.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
the y ma y ha ve some diff erence from the
original one.
• Color Indication of Appear ance P ar ts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Par ts Color Cabinet’ s Color
Ref. No. Part No. Description Remark

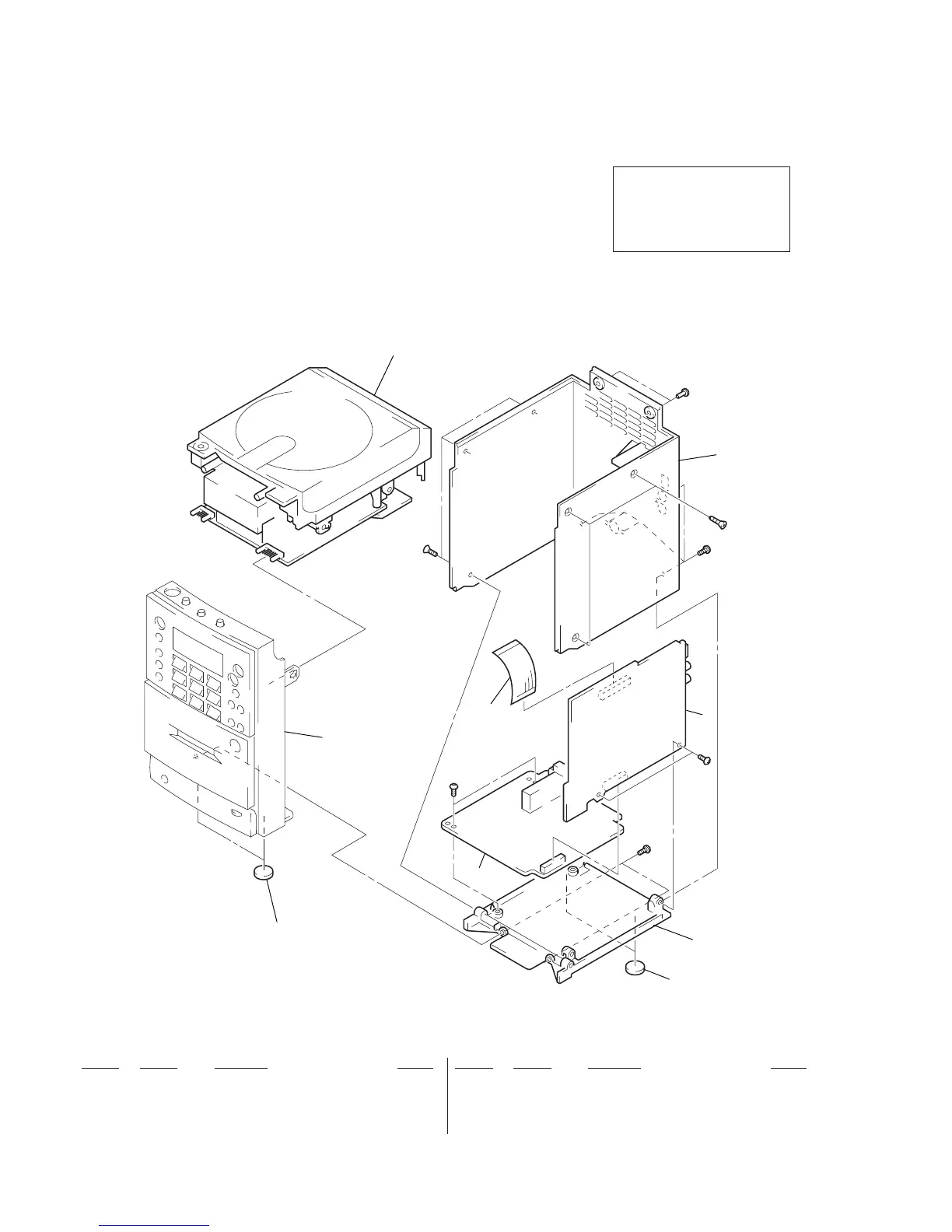

7-1. CASE SECTION
N
N
Ref. No. Part No. Description Remark
• Abbreviation
IT : Italian model
EE : East European model
• Accessories and packing materials and
hardw are (# mar k) list are giv en in
the last of this parts list.
1 3-014-503-01 FOOT
* 2 A-3321-478-A TUNER BOARD, COMPLETE (EXCEPT IT,EE)
* 2 A-3321-479-A TUNER BOARD, COMPLETE (IT)
* 2 A-3321-488-A TUNER BOARD, COMPLETE (EE)
3 1-782-296-11 WIRE, PARALLEL (FFC) (27 CORE)
4 3-014-125-01 CABINET (REAR)
* 5 A-3321-480-A AUDIO BOARD, COMPLETE
6 3-014-127-01 CASE (LOWER)
The components identified by
mark ! or dotted line with mark.
! are cr itical for saf ety.
Replace only with part number
specified.
cabinet (CD) section
front cabinet
section
1
2
3
5
6
1
4
#2
#1
#1
#1
#1
#2
#1
