Sony PMC-D307L - Cabinet (Front) Section

– 59 –

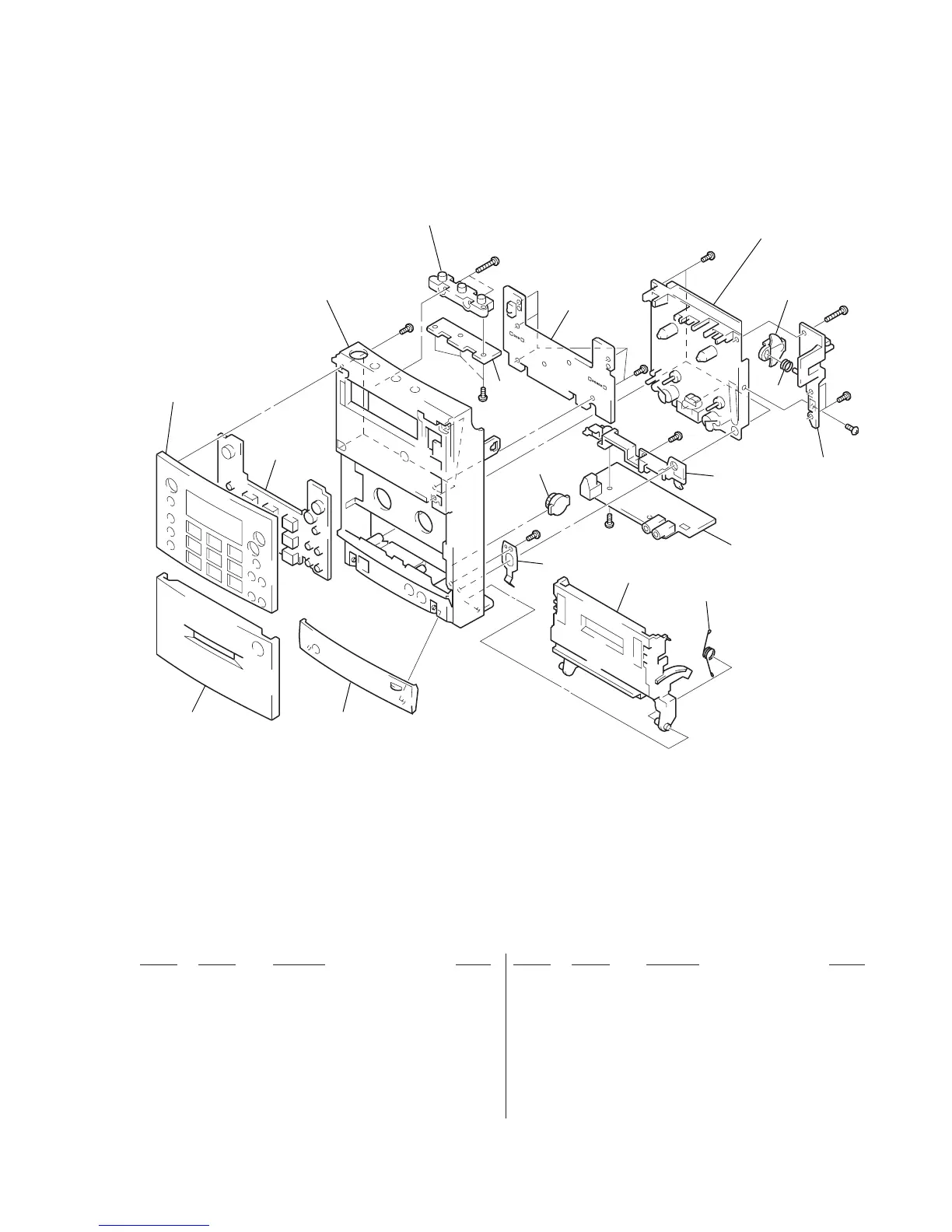

7-2. CABINET (FRONT) SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-3373-799-1 LID (TERMINAL) ASSY
52 X-3376-075-2 LID ASSY, CASSETTE
53 X-3376-074-1 PANEL ASSY, FRONT
54 3-014-091-01 BUTTON (MAIN)
55 3-014-090-01 CABINET (FRONT)
56 3-014-092-01 BUTTON (UPPER)
* 57 1-666-185-11 SW (B) BOARD
* 58 1-666-184-11 SW (A) BOARD
59 3-014-097-01 PLATE (CASSETTE), LOCK
60 3-014-098-01 RETAINER (CASSETTE), LOCK
61 3-013-735-01 SPRING, COMPRESSION
62 3-014-100-01 HOLDER (TERMINAL)
* 63 A-3321-474-A LINE BOARD, COMPLETE
64 3-014-102-01 SPRING (CASSETTE)
65 3-014-096-01 HOLDER (CASSETTE)
66 3-014-103-01 SPRING (TERMINAL LID)
67 3-343-248-01 DAMPER (P), SMALL
#4
#3
#3
#3
#5
#1
#3
#1
MF-D307
#1
#3
#
6
56
55
53
54
52 51
66
65
64
63
62
60
61
59
58
57
67
