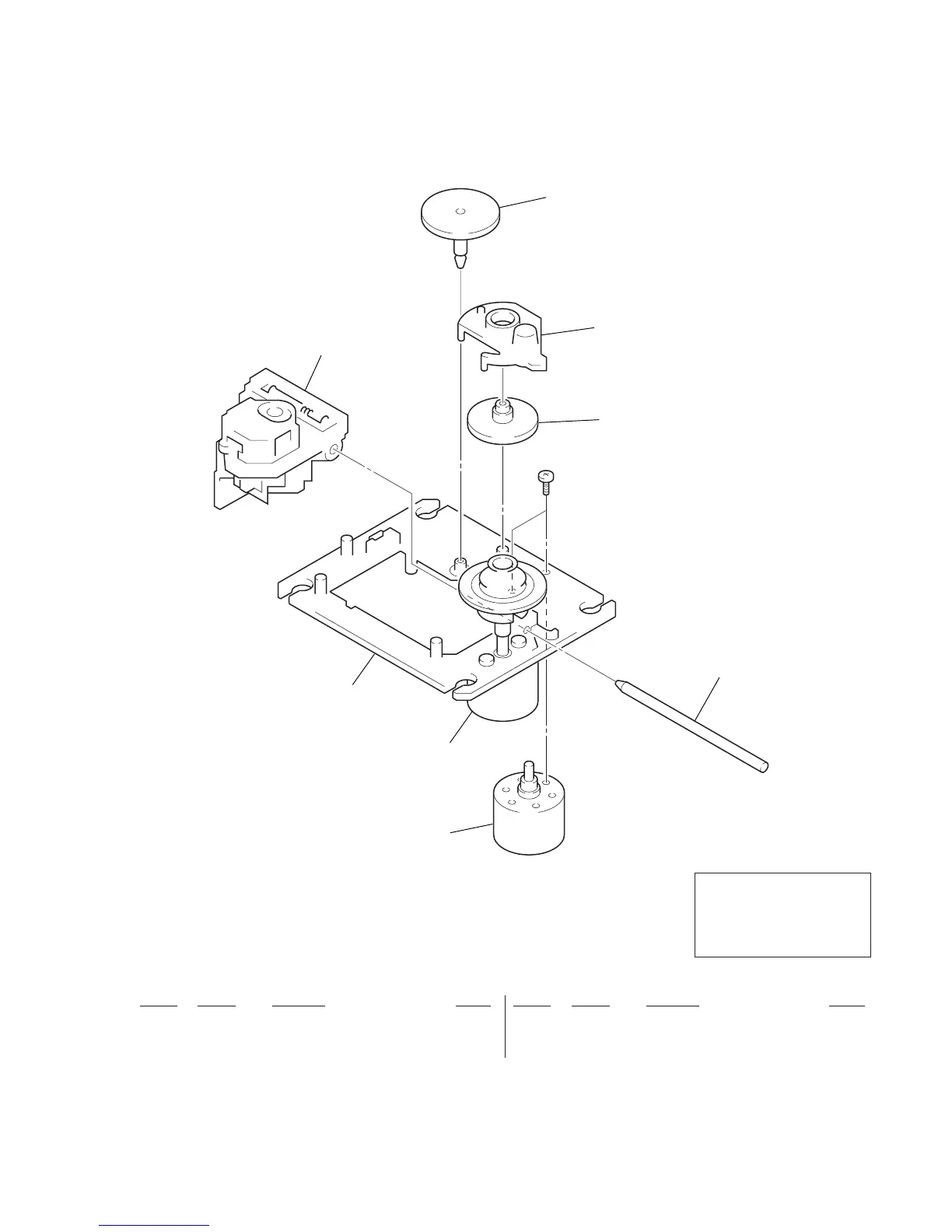

7-4. OPTICAL PICK-UP SECTION
(KSM-213CDM)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 2-627-003-02 GEAR (B) (RP)
152 X-2626-202-2 CHASSIS ASSY (MB), MOTOR (SPINDLE)
(INCLUDING M701)
153 2-626-908-01 SHAFT, SLED
! 154 8-848-483-05 PICK-UP, OPTICAL KSS-213C/Q-RP
M702 X-2625-769-1 GEAR ASSY (MB), MOTOR (SLED)
not supplied
not supplied
M702
M701
#8
153
152
154
151
The components identified b y
mark ! or dotted line with mark.
! are cr itical for saf ety.
Replace only with part number
specified.
