Sony PMC-D307L - Cabinet (CD) Section; CD, Control Board

– 7 –

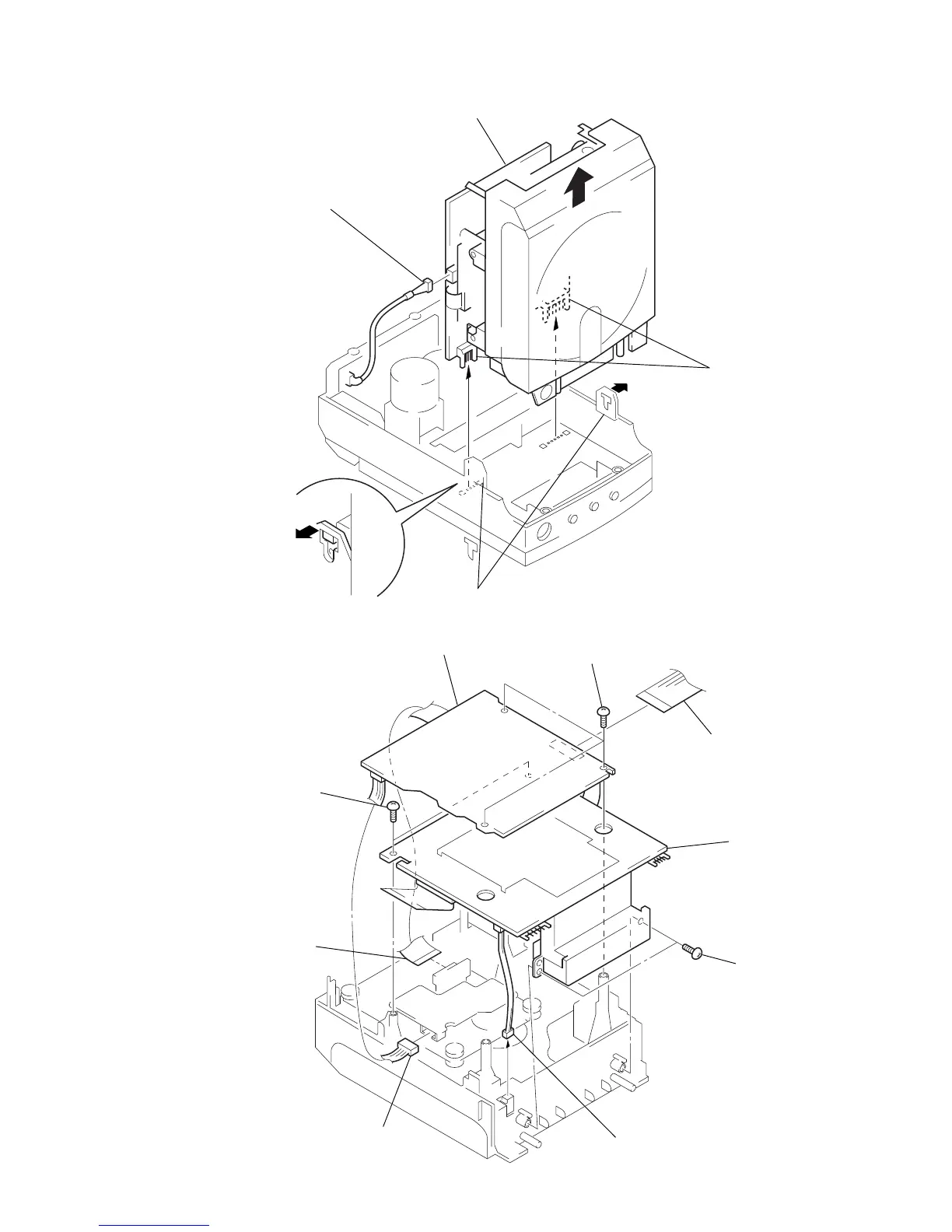

3-4. CABINET (CD) SECTION
3-5. CD, CONTROL BOARD
2 claws
3 CNP802, 803
4 cabinet (CD) section
1 CNP705
1 CNP707
6 S801
7 P 2.6x8
9 CONTROL boar
d
3 parallel wire (9 core)
(CNP706)
4 BVTP 3x10
5 CD board
8 BVTP 3x10
2 FFC cable 16P
(optical pick-up)
