Sony PMC-D307L - Cabinet (CD) Section

– 60 –

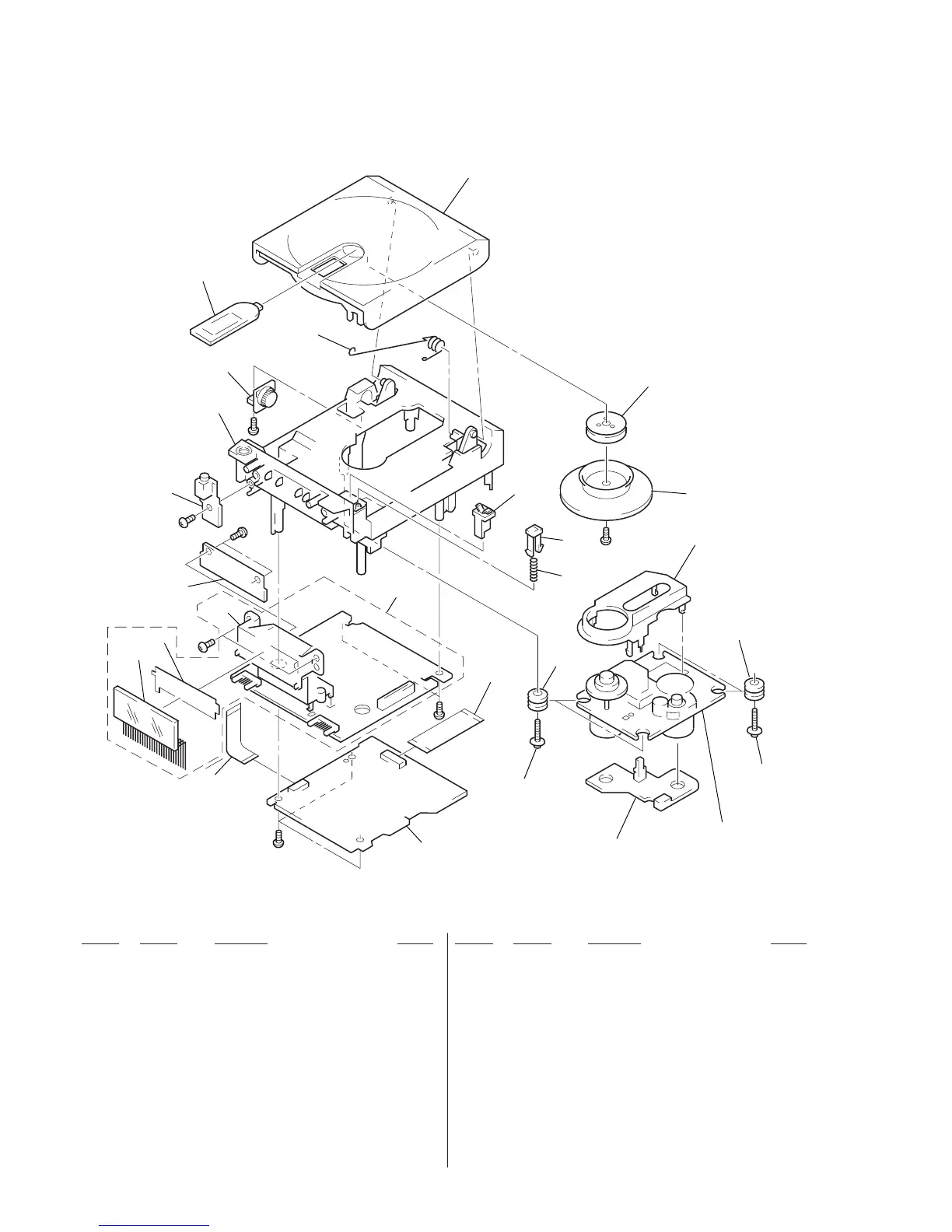

7-3. CABINET (CD) SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 101 A-3321-485-A CD BOARD, COMPLETE
102 1-782-294-11 WIRE, PARALLEL (FFC) (9 CORE)
* 103 A-3321-484-A CONTROL BOARD, COMPLETE (EXCEPT EE)
* 103 A-3321-490-A CONTROL BOARD, COMPLETE (EE)
* 104 1-666-187-11 HEADPHONE BOARD
* 105 1-666-186-11 LAMP BOARD
106 3-014-123-01 CABINET (CD)
107 3-014-129-01 WINDOW (CD)
108 3-351-377-11 DAMPER
109 3-014-128-01 SPRING (CD)
110 3-014-124-01 LID (CD)
111 1-452-732-11 MAGNET
112 3-910-112-01 PLATE, CHUCKING
113 3-014-131-01 LEVER
* 114 3-014-132-01 SPRING, COMPRESSION
115 3-910-116-01 COVER, CD
116 3-910-095-11 RUBBER, VIBRATION PROOF
117 3-916-006-01 SCREW (2.6X16)
118 1-639-678-12 CD MOTOR BOARD
119 3-910-095-01 RUBBER, VIBRATION PROOF
120 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
* 121 3-014-121-01 HOLDER (LCD)
* 122 3-014-130-01 SHEET, DIFFUSION
LCD801 1-801-786-11 DISPLAY PANEL, LIQUID CRYSTAL
S801 1-692-960-11 SWITCH, PUSH (1 KEY) (OPEN/CLOSE)
110
107
109
108
106
105
121
122
104
103
102
101
120
117
119
118
117
116
115
112
111
113
114
#1
#3
#3
#3
LCD801
#1
#1
S801
#7
KSM-213CDM
