Sony PMC-D307L - Schematic Diagram -Power Amplifier Section

PMC-D307L
– 53 – – 54 –

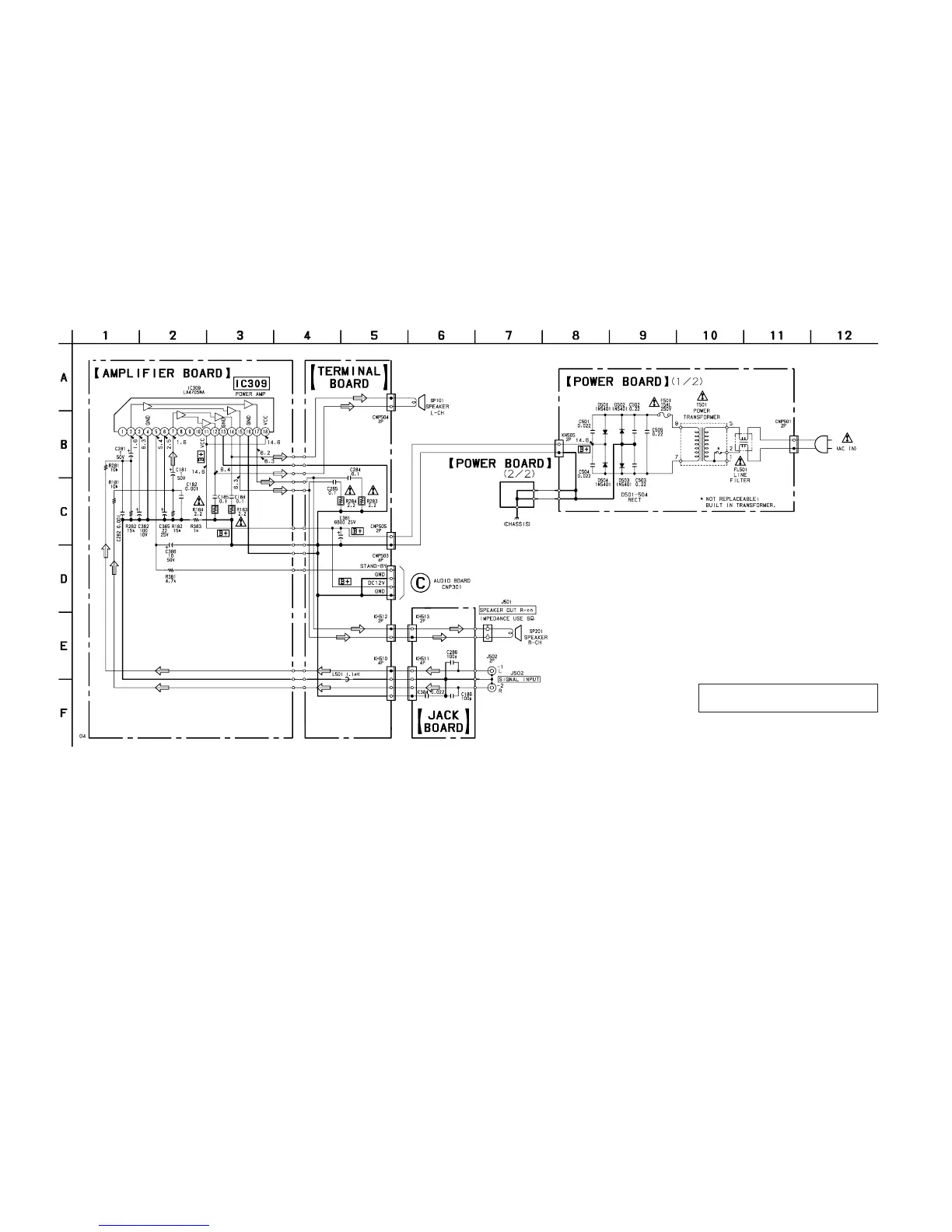

6-15. SCHEMATIC DIAGRAM — POWER AMPLIFIER SECTION —
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
• 2 : nonflammable resistor.
• C : panel designation.
• U : B+ Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Signal path.
F : FM
Note: The components identified by mark ! or dotted line
with mark ! are critical for safety.
Replace only with part number specified.
