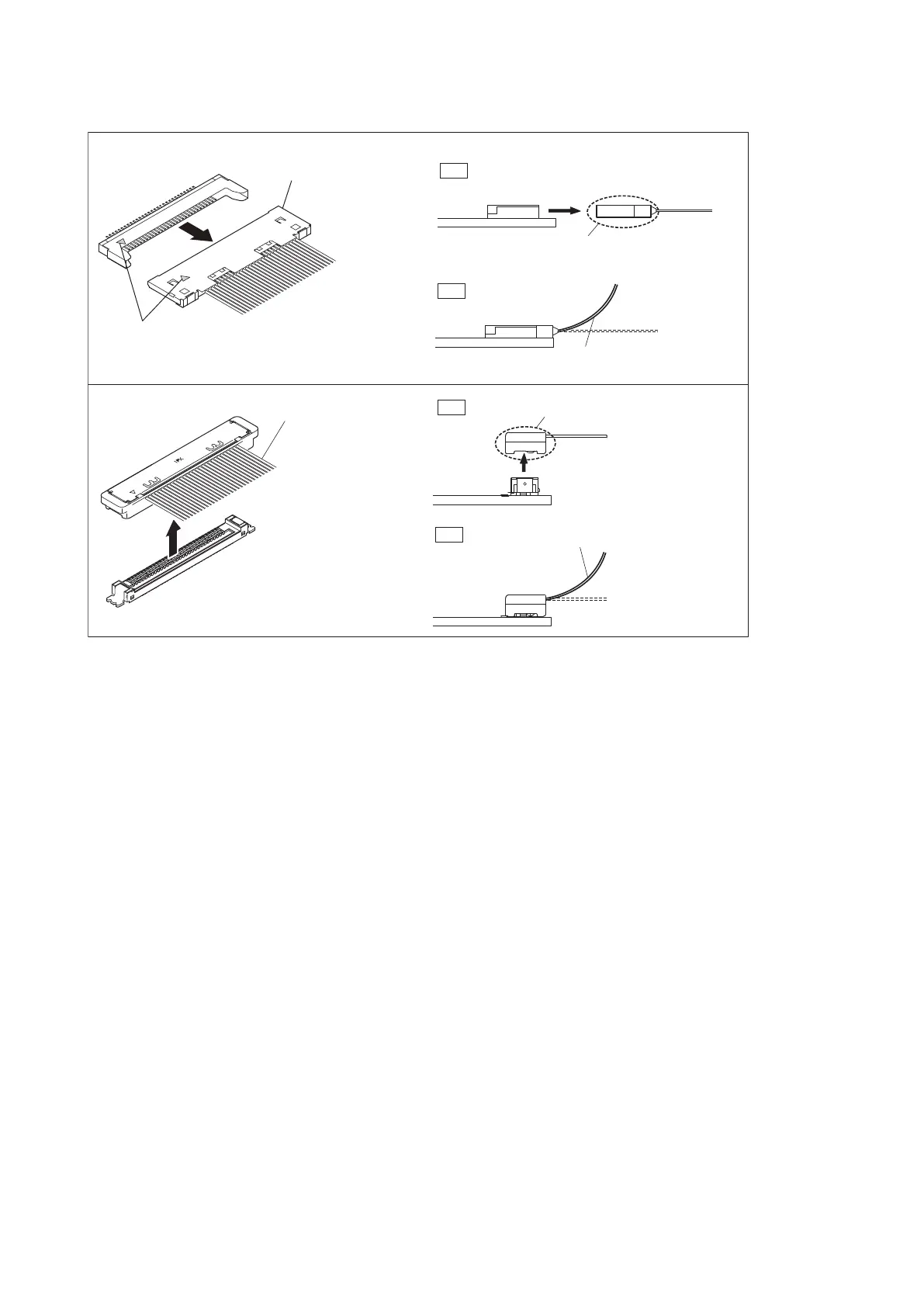

<Type A>
Do not attempt to disconnect by
pulling the cable.
Hold the connector to disconnect.
OK
NG
I
PX
Fine-wire coaxial cable
Polarity marks
<Type C>
Fine-wire coaxial cable
Hold the connector to disconnect.
Do not attempt to disconnect by
pulling the cable.
OK
NG
Disconnecting
1. Hold the connector and disconnect the fine-wire coaxial cable horizontally or vertically.
Connecting
1. Hold the connector and connect the fine-wire coaxial cable horizontally or vertically while matching the polarity
marks.
PMW-300
1-17
