Sony PMW-300 - SW-1610;1611;1613 Board

2-6-2. SW-1610/1611/1613 Board
Preparation
1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)
2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)

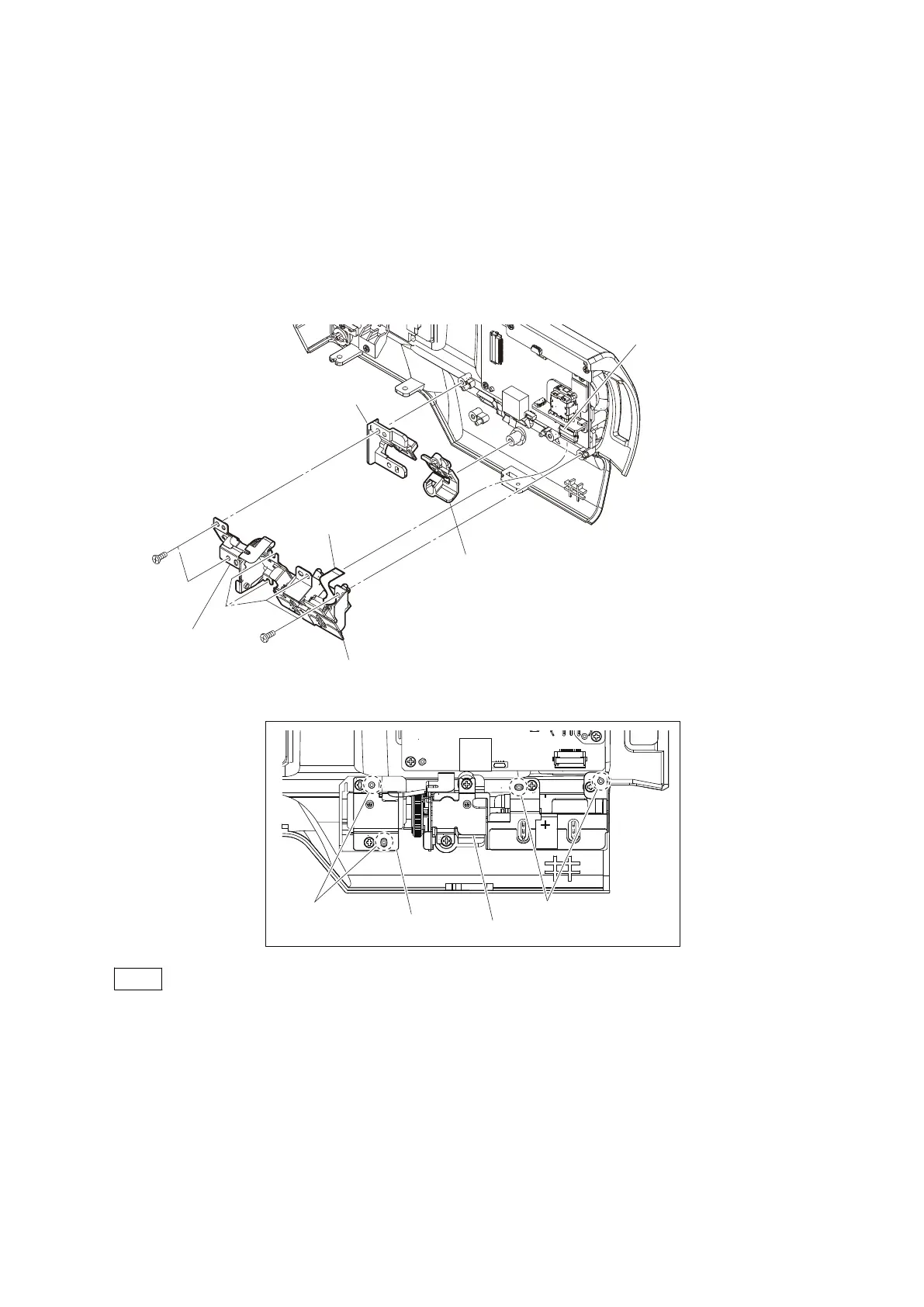

Procedure
1. Disconnect the flexible flat cable from the connector (CN10) on the KY-706 board.
2. Remove the six screws to detach the SW bracket A, SW bracket B, button (cancel), and button (menu).
Precision screws
(P2 x 4)
Precision screws
(P2 x 4)
SW bracket B
CN10
(KY-706 board)
SW bracket A
Flexible flat cable
Button (cancel)
Button (menu)
Bosses/Holes
Bosses/Holes
SW bracket A
SW bracket B
Note
When installing the SW bracket A and the SW bracket B, fit the four bosses with the four holes.
PMW-300
2-22
