Sony PMW-300 - Outside IO Assembly

2-7-2. Outside IO Assembly
Preparation
1. Remove the VF assembly. (Refer to “2-3-1. VF Assembly”)
2. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)
3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)
Procedure

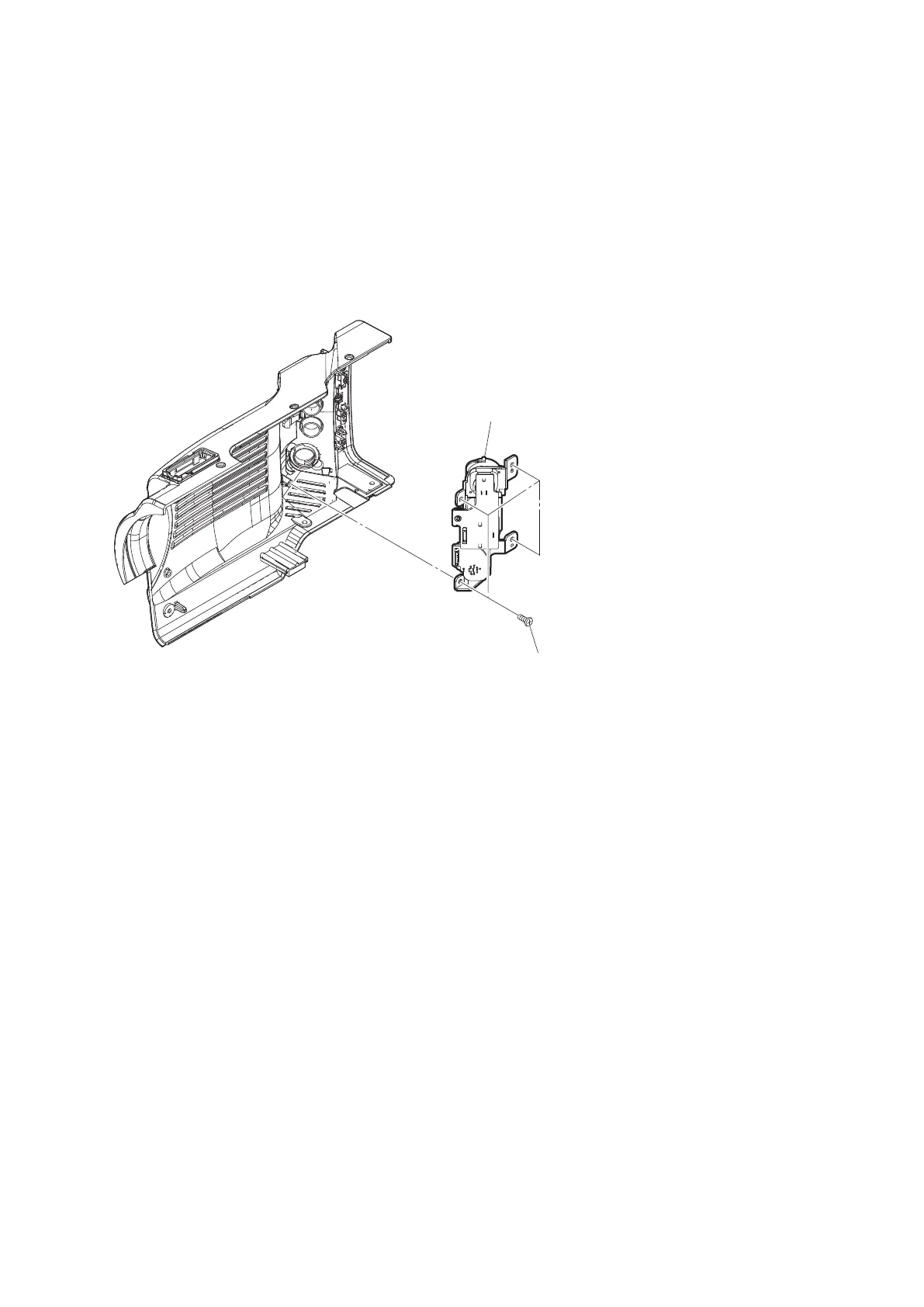

1. Remove the four screws to detach the outside IO assembly.
P2 x 4
Outside IO assembly
2. Install the removed parts by reversing the steps of removal.
PMW-300
2-26
