2-15. Front Lens Assembly
Preparation
1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)
2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)
3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)
4. Remove the rear panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)
5. Remove the handle assembly. (Refer to “2-11-1. Handle Assembly”)
6. Remove the IO block. (Refer to “2-10. IO Block”)
7. Remove the DCP-64 board. (Refer to “2-14. DCP-64 Board”)
Procedure

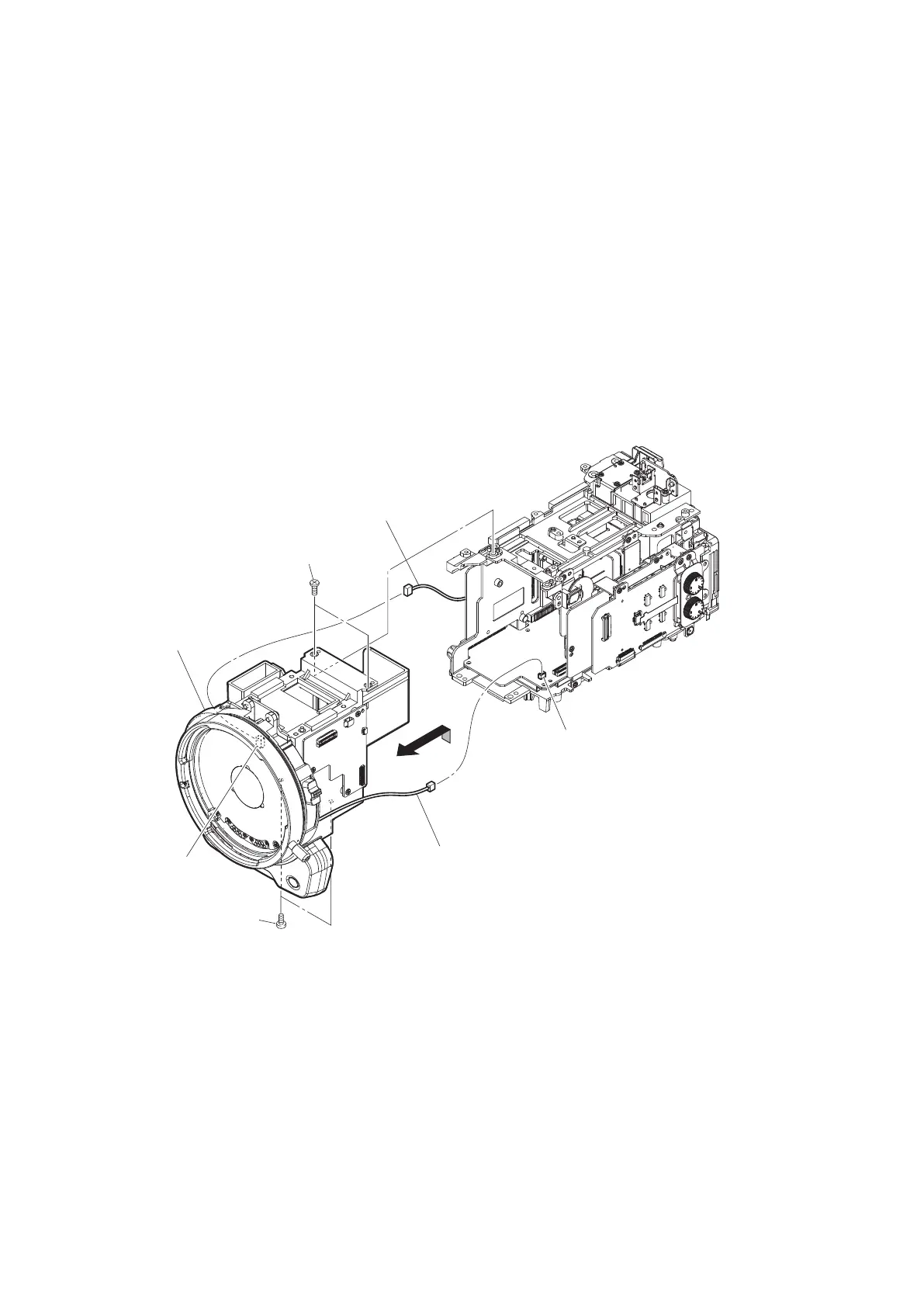

1. Remove the four screws and pull out the front lens assembly in the direction of the arrow.
2. Disconnect the harness from the connector on the CN-3634 board.
3. Disconnect the harness from the connector on the AU-357 board.
P2.6 x 5
Connector
(AU-357 board)
Connector
(CN-3634 board)
Front lens assembly
Harness
Harness
P2.6 x 5
4. Install the removed parts by reversing the steps of removal.
PMW-300
2-47
