2-5. Bottom Panel Assembly

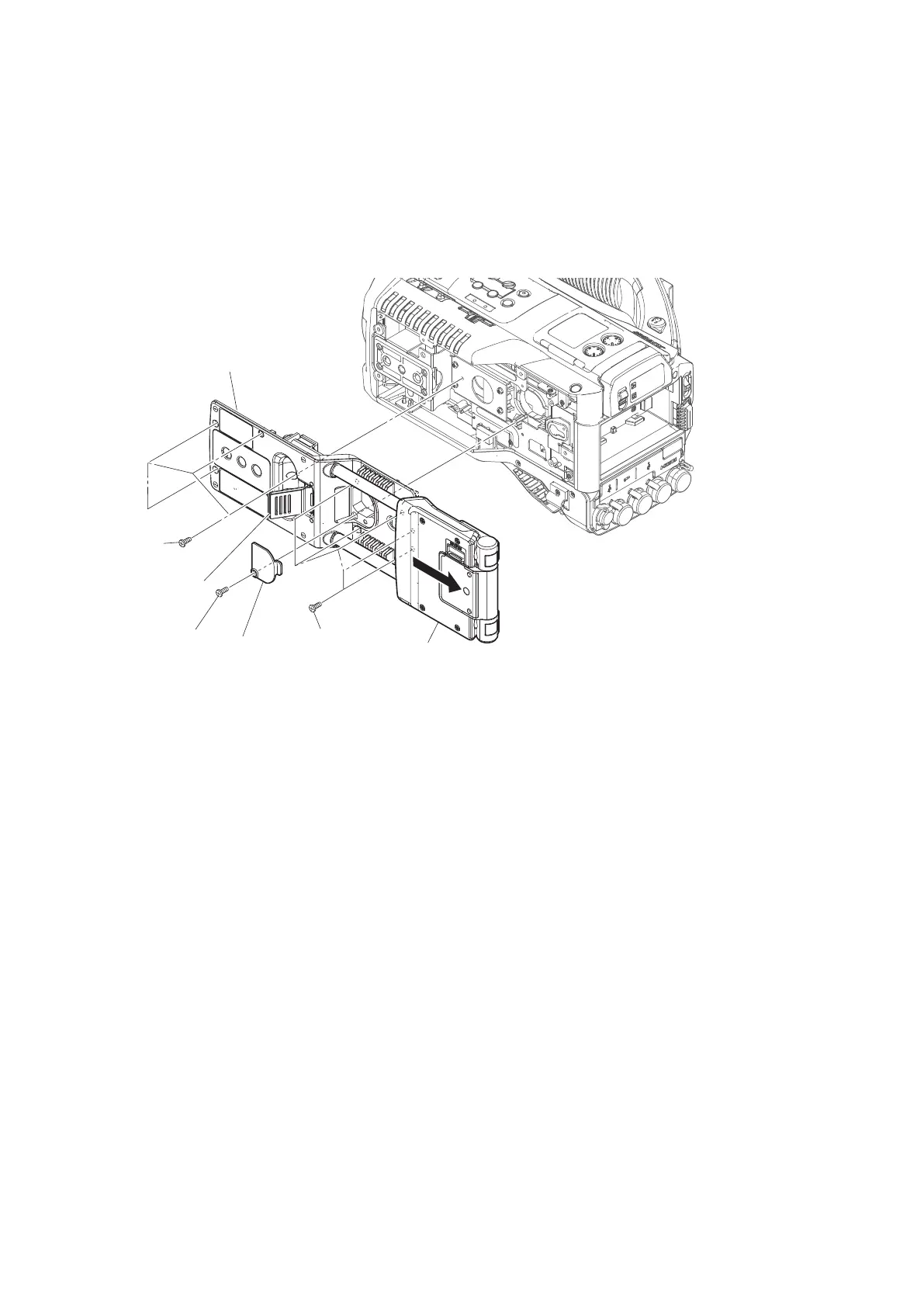

Procedure
1. Release the shaft lock lever and pull out the shoulder pad in the direction of the arrow.
2. Remove the screw to detach the battery lid.
3. Remove the nine screws to detach the bottom panel assembly.
Shaft lock lever
Shoulder pad
Bottom panel assembly
P2 x 5
P2 x 5
P2 x 5
Battery lid
4. Install the removed parts by reversing the steps of removal.
