Sony PMW-300 - VF Block; VF Assembly

2-3. VF Block
2-3-1. VF Assembly
Procedure

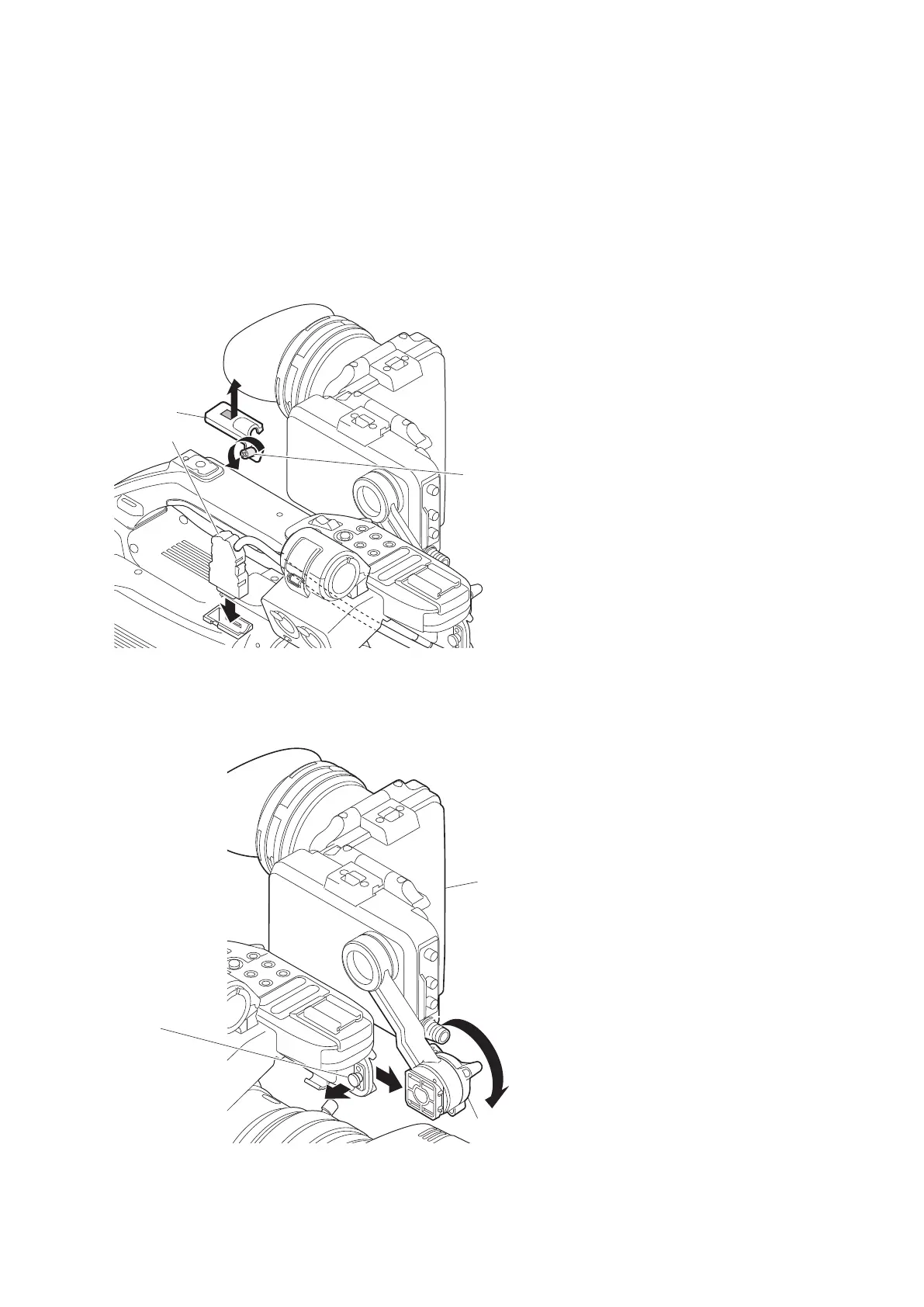

1. Loosen the lock screw to detach the VF cover in the direction of the arrow.
2. Disconnect the VF cord.
VF cover
VF cord
Lock screw (with stopper)
3. Loosen the lock knob assembly.
4. Remove the VF assembly in the direction of the arrow A while pulling the stopper.
VF assembly
Lock knob assembly
Stopper
A
5. Install the removed parts by reversing the steps of removal.
PMW-300
2-9
