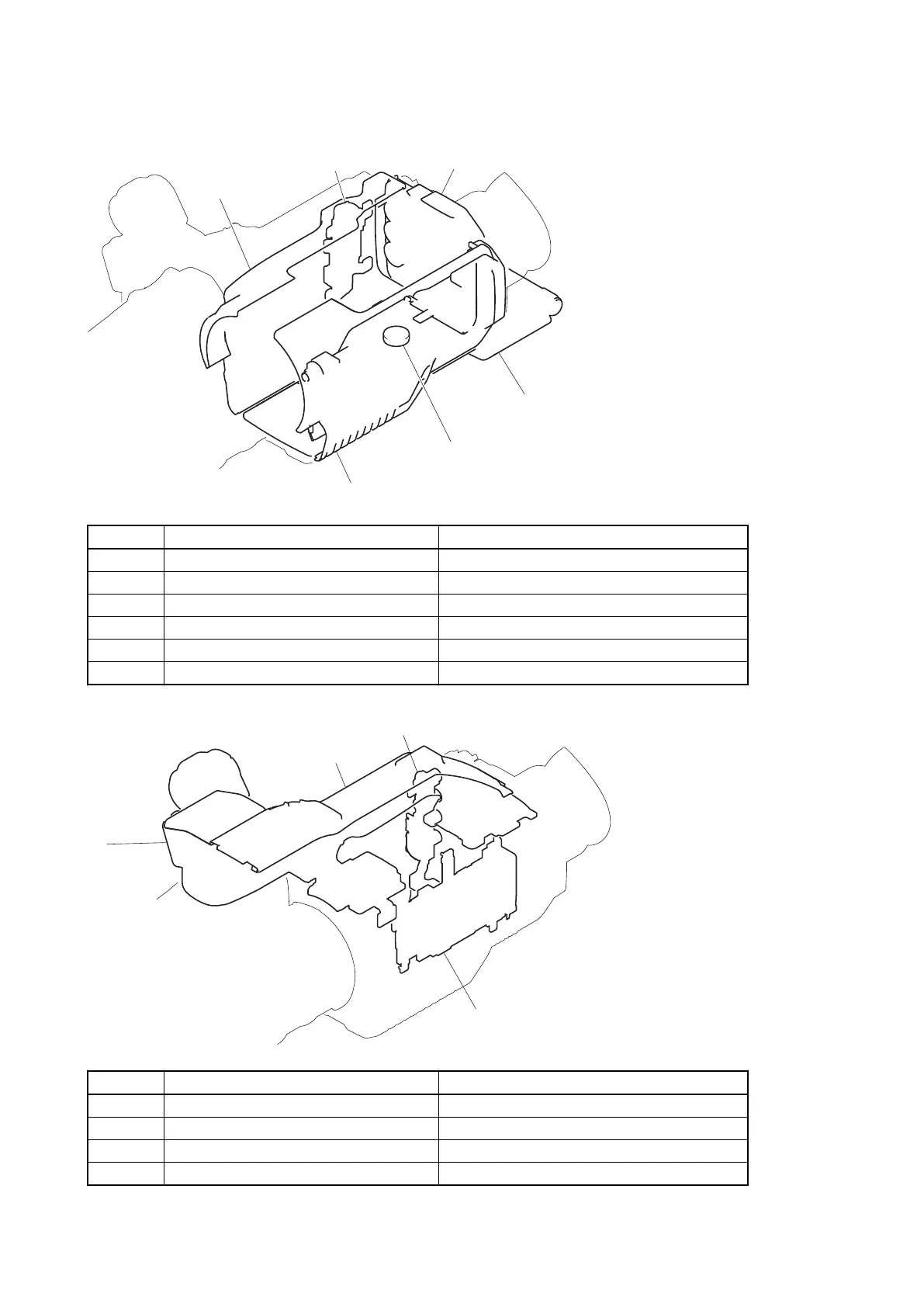

No. Part Name Procedure
10 Lithium Battery “2-4. Lithium Battery”
11 Bottom Panel Assembly “2-5. Bottom Panel Assembly”
12 Inside Panel Assembly “2-6-1. Inside Panel Assembly”
13 Outside Panel Assembly “2-7-1. Outside Panel Assembly”
14 Outside IO Assembly “2-7-2. Outside IO Assembly”
15 Rear Panel Assembly “2-8. Rear Panel Assembly”
18
16
17
19
No. Part Name Procedure
16 SxS Slot Assembly “2-9-1. SxS Slot Assembly”
17 IO Block “2-10. IO Block”
18 Handle Assembly “2-11-1. Handle Assembly”
19 Handle U-Case Assembly “2-11-2. Handle U-case Assembly”
