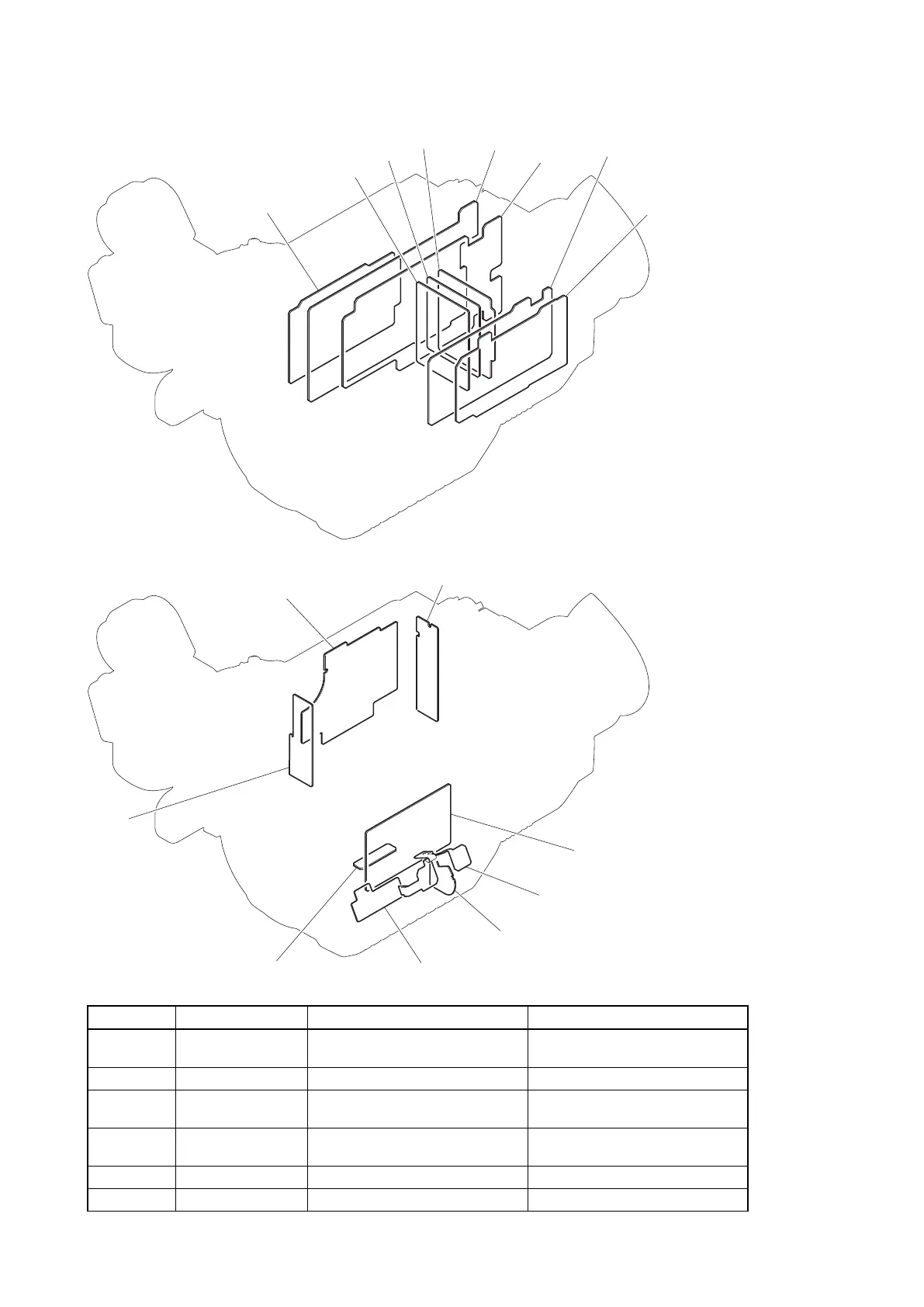

No. Part Name Procedure Steps after replacement/repair
1 AU-357 “2-17. AU-357/RE-320/RE-321/RE-322
Board”
“1-6-1. Actions to Be Taken when Re-
placing Parts and Boards”
2 AXM-50 “2-11-4. AXM-50 Board” -
3 DCP-64 “2-14. DCP-64 Board” “1-6-1. Actions to Be Taken when Re-
placing Parts and Boards”
4 DPR-355 “2-16. DPR-355 Board” “1-6-1. Actions to Be Taken when Re-
placing Parts and Boards”
5 EC-78 “2-9-2. SWC-56 Board/EC-78 Board” -
6 EN-164 “2-6-3. EN-164/KY-706 Board” -
Continued
PMW-300
2-4
