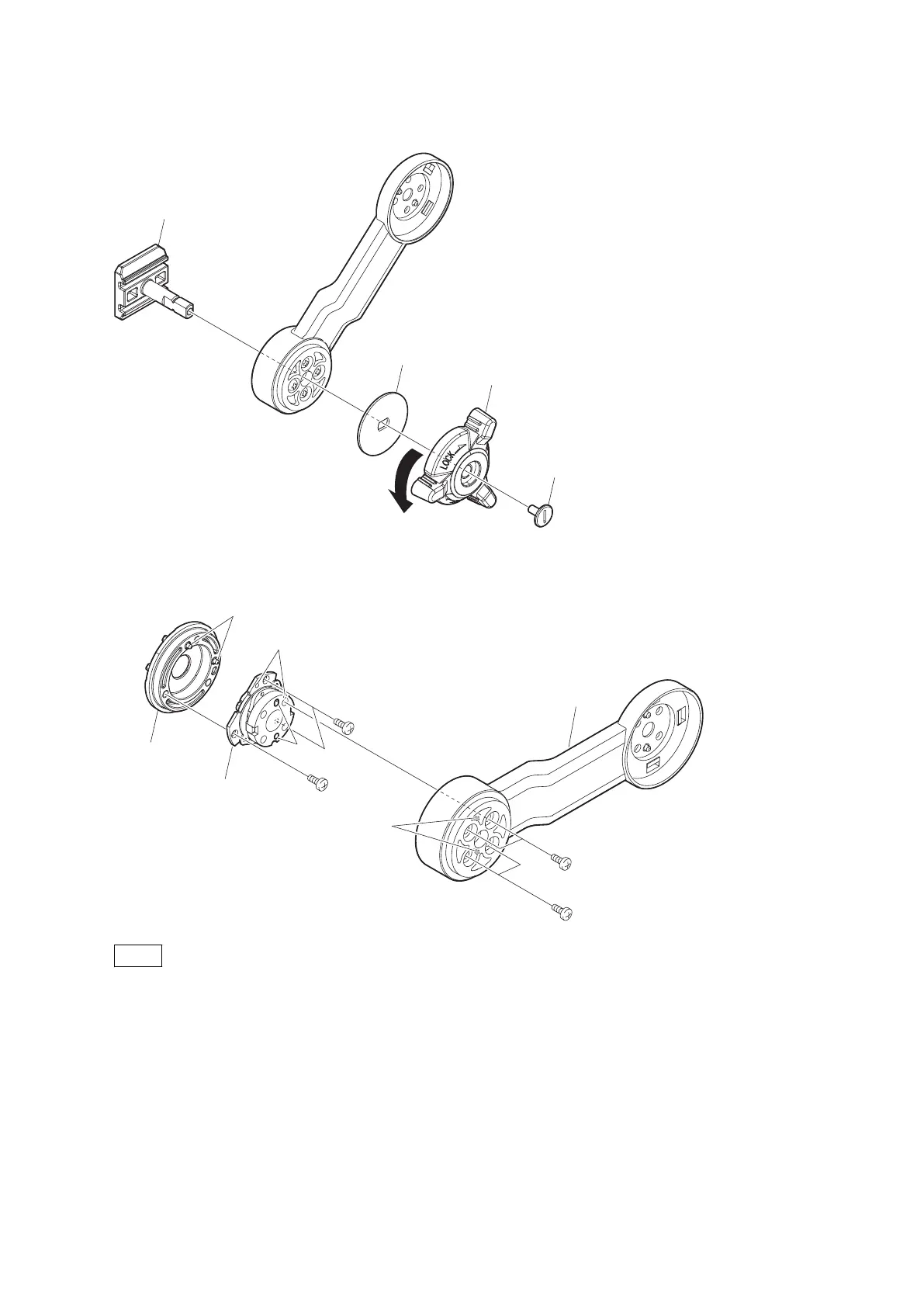

3. Remove the stop screw to detach the lock knob assembly, washer slock, and shoe shaft assembly.
Stop screw
Shoe shaft assembly
Lock knob assembly
Washer slock
4. Remove the four screws to detach the VF arm L.
5. Remove the three screws to detach the hinge assembly.
Rock ring
Hinge assembly
VF arm L
P 2.6 x 4
P 2.6 x 4
P 2.6 x 4
P 2.6 x 4
Bosses
Bosses
Holes
Holes
Note
• When installing the hinge assembly, fit the two bosses of the rock ring with the two holes of the hinge assembly.
• When installing the VF arm L, fit the two bosses of the VF arm L with the two holes of the hinge assembly.
6. Install the removed parts by reversing the steps of removal.
PMW-300
2-18
