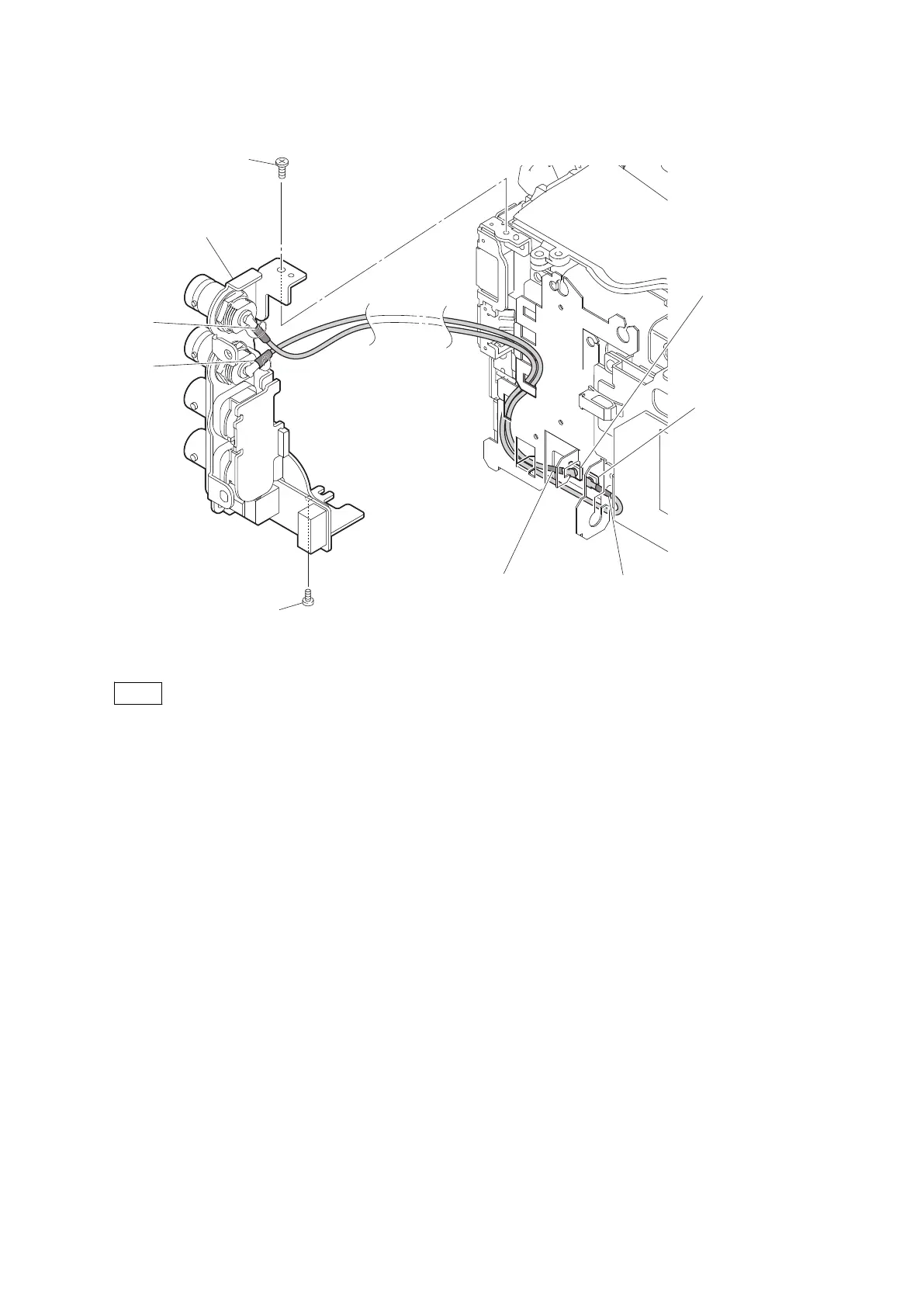

4. Disconnect the two coaxial cables from the two connectors (CN2200, CN2202) on the DCP-64 board. 。
Precision screw
(P2 x 4)
Precision screw
(P2 x 4)
IO block
Red
Green
Coaxial cable (CH2) (Green)
Coaxial cable (CH1) (Red)
CN2200
(DCP-64 board)
CN2202
(DCP-64 board)
Note
When installing the IO block, arrange the coaxial cables as shown in the figure.
5. Install the removed parts by reversing the steps of removal.
PMW-300
2-32
