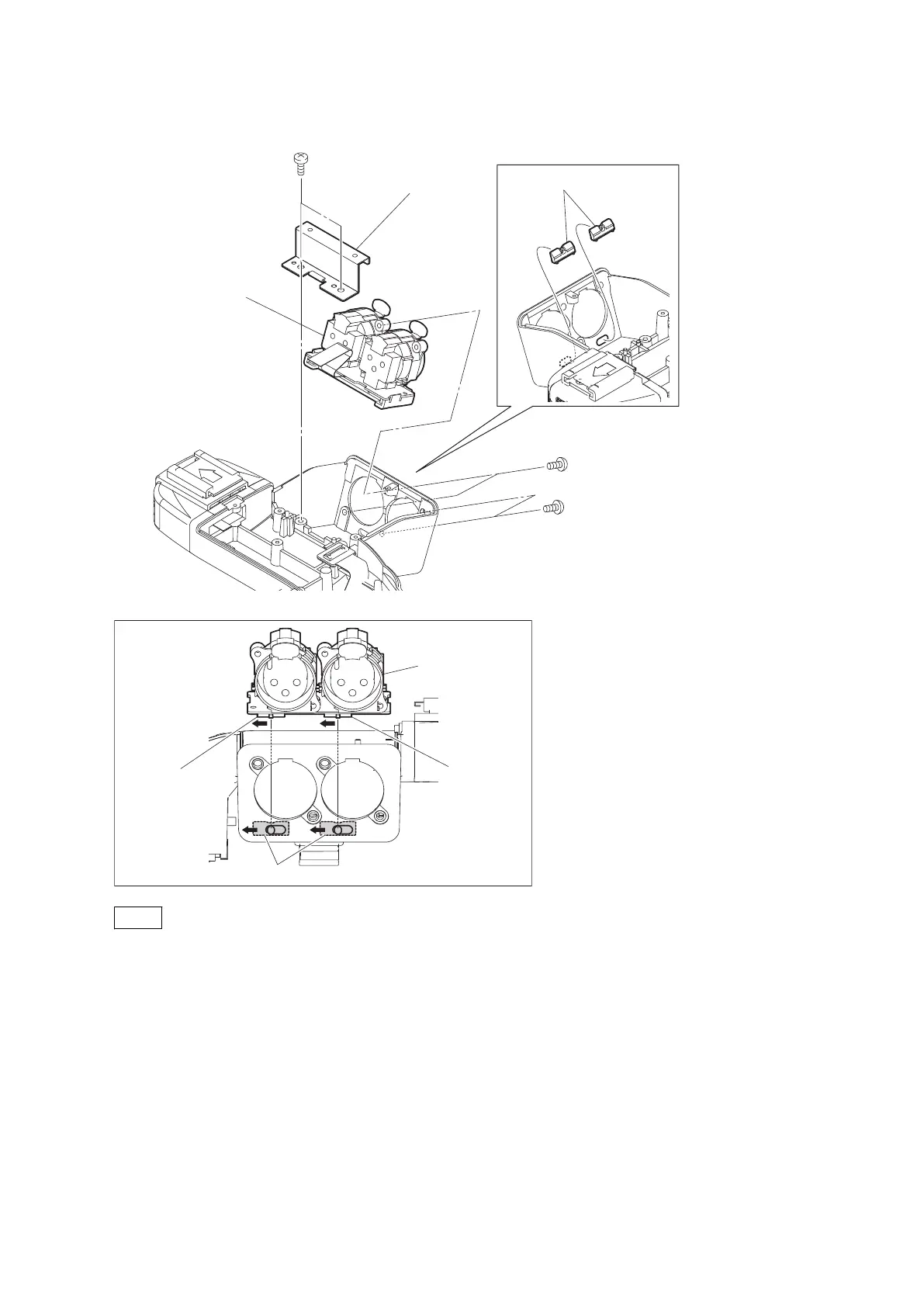

2. Remove the four screws (P2 x 10) to detach the AXM-50 board assembly and the two XLR SW knobs.
B2.6 x 5
Microphone bracket
A
XM-50 board assembly
XLR SW knobs
P2.6 x 10
P2.6 x 10
AXM-50 board
assembly
XLR SW knobs
Switch
Switch
Note
When installing the XLR SW knobs, slide the two switches and the two XLR SW knobs in the direction of the
arrow, and fit the two switches and the two XLR SW knobs.
3. Disconnect the flexible flat cable from the connector (CN102) on the AXM-50 board.
PMW-300
2-38
